Huawei Technologies Co., Ltd Fusion Server XH620 V3 ssj_ops@100% = 3,996,672
ssj_ops@100% per JVM = 199,834
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Apr 11, 2016
Hardware Availability: Mar-2016 Software Availability: Jan-2015 Publication: Apr 27, 2016
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,038,637
Calibration 2     3,994,576
Calibration 3     4,000,225
ssj_ops@calibrated=3,997,401
100% 100.0% 3,997,401 3,996,672
90% 88.7% 3,597,661 3,545,380
80% 81.3% 3,197,921 3,251,680
70% 69.9% 2,798,181 2,792,467
60% 60.0% 2,398,441 2,396,535
50% 49.9% 1,998,700 1,994,840
40% 39.9% 1,598,960 1,596,788
30% 29.9% 1,199,220 1,194,537
20% 20.1% 799,480 803,796
10% 10.0% 399,740 398,905
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Fusion Server XH620 V3
Form Factor: 4U
CPU Name: Intel Xeon E5-2698 V4
CPU Characteristics: 20-Core, 2.2GHz, 50MB L3 Cache (Intel Turbo Boost Technology up to 3.6GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 40 cores, 2 chips, 20 cores/chip
Hardware Threads: 80 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 50 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8 GB
Memory Details: 8GB 2Rx8 PC4-2400T ECC RDIMM;slots DIMM000, DIMM010, DIMM020, DIMM030,DIMM100, DIMM110, DIMM120, and DIMM130 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB SATADOM Huawei P/N 06010249
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel i350 Gigabit Ethernet controller Huawei P/N 02311HDL
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx1575m -Xms1575m -Xmn1420m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=4 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [F,F0,F00,F000,F0000]
JVM Instances: 20
JVM Initial Heap (MB): 1575
JVM Maximum Heap (MB): 1575
JVM Address Bits: 64
Boot Firmware Version: 3.16
Management Firmware Version: 2.02
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: none
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-CDV8O73P1TA.001 200,998
WIN-CDV8O73P1TA.002 199,638
WIN-CDV8O73P1TA.003 203,337
WIN-CDV8O73P1TA.004 198,792
WIN-CDV8O73P1TA.005 200,333
WIN-CDV8O73P1TA.006 199,334
WIN-CDV8O73P1TA.007 200,331
WIN-CDV8O73P1TA.008 203,145
WIN-CDV8O73P1TA.009 197,443
WIN-CDV8O73P1TA.010 199,072
WIN-CDV8O73P1TA.011 202,017
WIN-CDV8O73P1TA.012 199,515
WIN-CDV8O73P1TA.013 199,366
WIN-CDV8O73P1TA.014 198,237
WIN-CDV8O73P1TA.015 201,967
WIN-CDV8O73P1TA.016 197,001
WIN-CDV8O73P1TA.017 198,594
WIN-CDV8O73P1TA.018 196,091
WIN-CDV8O73P1TA.019 201,110
WIN-CDV8O73P1TA.020 200,351
ssj_ops@100% 3,996,672
ssj_ops@100% per JVM 199,834

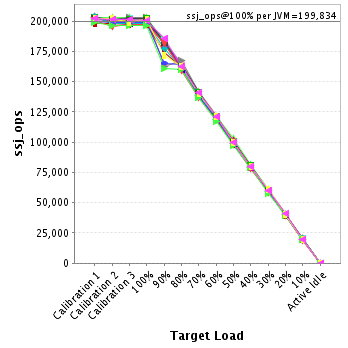

Graph of per-instance results
JVM 'WIN-CDV8O73P1TA.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     203,252
Calibration 2     200,426
Calibration 3     200,563
ssj_ops@calibrated=200,494
100% 100.3% 200,494 200,998
90% 91.2% 180,445 182,918
80% 80.9% 160,396 162,189
70% 69.7% 140,346 139,811
60% 59.9% 120,297 120,074
50% 49.4% 100,247 99,092
40% 40.0% 80,198 80,277
30% 29.6% 60,148 59,334
20% 20.0% 40,099 40,062
10% 10.2% 20,049 20,391
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

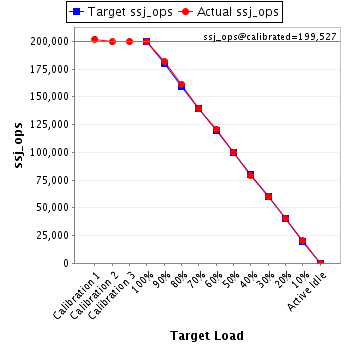

JVM 'WIN-CDV8O73P1TA.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     201,884
Calibration 2     199,374
Calibration 3     199,681
ssj_ops@calibrated=199,527
100% 100.1% 199,527 199,638
90% 91.0% 179,574 181,662
80% 80.9% 159,622 161,330
70% 69.7% 139,669 139,079
60% 60.5% 119,716 120,796
50% 50.1% 99,764 99,902
40% 39.7% 79,811 79,234
30% 30.0% 59,858 59,898
20% 20.1% 39,905 40,011
10% 10.1% 19,953 20,183
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CDV8O73P1TA.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     202,705
Calibration 2     202,848
Calibration 3     203,266
ssj_ops@calibrated=203,057
100% 100.1% 203,057 203,337
90% 89.9% 182,752 182,543
80% 81.4% 162,446 165,191
70% 69.8% 142,140 141,775
60% 59.6% 121,834 121,007
50% 50.6% 101,529 102,764
40% 40.0% 81,223 81,266
30% 30.1% 60,917 61,047
20% 19.8% 40,611 40,293
10% 10.0% 20,306 20,358
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CDV8O73P1TA.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     203,017
Calibration 2     198,421
Calibration 3     199,039
ssj_ops@calibrated=198,730
100% 100.0% 198,730 198,792
90% 90.7% 178,857 180,275
80% 80.8% 158,984 160,542
70% 70.2% 139,111 139,480
60% 60.3% 119,238 119,812
50% 50.2% 99,365 99,756
40% 39.9% 79,492 79,294
30% 30.1% 59,619 59,732
20% 20.4% 39,746 40,454
10% 10.0% 19,873 19,910
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

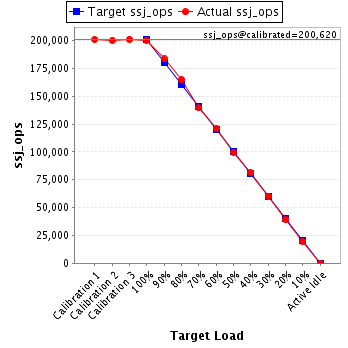

JVM 'WIN-CDV8O73P1TA.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,822
Calibration 2     200,059
Calibration 3     201,180
ssj_ops@calibrated=200,620
100% 99.9% 200,620 200,333
90% 91.4% 180,558 183,394
80% 82.1% 160,496 164,705
70% 69.5% 140,434 139,388
60% 60.2% 120,372 120,784
50% 49.7% 100,310 99,720
40% 40.4% 80,248 81,070
30% 30.1% 60,186 60,354
20% 19.6% 40,124 39,410
10% 9.9% 20,062 19,766
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CDV8O73P1TA.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,976
Calibration 2     201,578
Calibration 3     202,076
ssj_ops@calibrated=201,827
100% 98.8% 201,827 199,334
90% 91.0% 181,644 183,674
80% 80.9% 161,461 163,272
70% 69.9% 141,279 141,114
60% 59.4% 121,096 119,879
50% 50.0% 100,913 100,957
40% 39.8% 80,731 80,250
30% 29.9% 60,548 60,262
20% 19.9% 40,365 40,248
10% 10.0% 20,183 20,228
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CDV8O73P1TA.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     201,355
Calibration 2     200,957
Calibration 3     201,002
ssj_ops@calibrated=200,980
100% 99.7% 200,980 200,331
90% 81.3% 180,882 163,403
80% 82.5% 160,784 165,759
70% 70.5% 140,686 141,711
60% 59.4% 120,588 119,436
50% 49.2% 100,490 98,979
40% 39.5% 80,392 79,411
30% 30.2% 60,294 60,767
20% 20.6% 40,196 41,381
10% 9.8% 20,098 19,606
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CDV8O73P1TA.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     203,197
Calibration 2     201,447
Calibration 3     203,171
ssj_ops@calibrated=202,309
100% 100.4% 202,309 203,145
90% 80.2% 182,078 162,323
80% 82.6% 161,847 167,185
70% 69.9% 141,616 141,454
60% 60.2% 121,385 121,752
50% 49.9% 101,154 100,928
40% 39.8% 80,924 80,549
30% 29.5% 60,693 59,747
20% 20.2% 40,462 40,855
10% 9.7% 20,231 19,702
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CDV8O73P1TA.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,381
Calibration 2     197,967
Calibration 3     197,427
ssj_ops@calibrated=197,697
100% 99.9% 197,697 197,443
90% 88.2% 177,927 174,396
80% 81.7% 158,157 161,590
70% 69.9% 138,388 138,241
60% 60.3% 118,618 119,121
50% 49.5% 98,848 97,883
40% 39.9% 79,079 78,978
30% 29.9% 59,309 59,026
20% 20.0% 39,539 39,610
10% 10.1% 19,770 19,946
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CDV8O73P1TA.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     203,144
Calibration 2     198,572
Calibration 3     198,417
ssj_ops@calibrated=198,494
100% 100.3% 198,494 199,072
90% 92.6% 178,645 183,861
80% 80.6% 158,795 159,966
70% 70.0% 138,946 138,905
60% 59.7% 119,097 118,444
50% 49.7% 99,247 98,716
40% 40.0% 79,398 79,403
30% 29.8% 59,548 59,198
20% 20.4% 39,699 40,417
10% 9.9% 19,849 19,717
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CDV8O73P1TA.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     202,884
Calibration 2     201,427
Calibration 3     201,143
ssj_ops@calibrated=201,285
100% 100.4% 201,285 202,017
90% 91.1% 181,157 183,346
80% 80.6% 161,028 162,141
70% 70.2% 140,900 141,317
60% 60.4% 120,771 121,548
50% 50.0% 100,643 100,733
40% 40.2% 80,514 80,844
30% 29.8% 60,386 60,039
20% 20.1% 40,257 40,486
10% 9.9% 20,129 19,898
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CDV8O73P1TA.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     202,565
Calibration 2     199,952
Calibration 3     200,798
ssj_ops@calibrated=200,375
100% 99.6% 200,375 199,515
90% 90.0% 180,337 180,308
80% 81.2% 160,300 162,693
70% 69.4% 140,262 138,964
60% 59.6% 120,225 119,441
50% 50.6% 100,187 101,405
40% 39.8% 80,150 79,848
30% 30.0% 60,112 60,152
20% 20.1% 40,075 40,368
10% 10.1% 20,037 20,335
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CDV8O73P1TA.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     203,920
Calibration 2     199,234
Calibration 3     199,816
ssj_ops@calibrated=199,525
100% 99.9% 199,525 199,366
90% 90.6% 179,572 180,674
80% 81.4% 159,620 162,360
70% 69.7% 139,667 139,055
60% 59.3% 119,715 118,399
50% 50.7% 99,762 101,185
40% 39.6% 79,810 78,914
30% 29.9% 59,857 59,612
20% 20.1% 39,905 40,183
10% 10.2% 19,952 20,374
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CDV8O73P1TA.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     203,467
Calibration 2     197,691
Calibration 3     198,020
ssj_ops@calibrated=197,855
100% 100.2% 197,855 198,237
90% 89.6% 178,070 177,336
80% 81.4% 158,284 160,986
70% 70.2% 138,499 138,992
60% 59.9% 118,713 118,482
50% 50.1% 98,928 99,060
40% 40.5% 79,142 80,044
30% 29.9% 59,357 59,151
20% 19.9% 39,571 39,420
10% 10.2% 19,786 20,193
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CDV8O73P1TA.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     203,079
Calibration 2     201,407
Calibration 3     201,732
ssj_ops@calibrated=201,569
100% 100.2% 201,569 201,967
90% 89.9% 181,413 181,190
80% 81.4% 161,256 164,011
70% 70.2% 141,099 141,497
60% 59.7% 120,942 120,293
50% 50.0% 100,785 100,718
40% 40.0% 80,628 80,726
30% 29.8% 60,471 60,109
20% 20.2% 40,314 40,640
10% 10.0% 20,157 20,142
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CDV8O73P1TA.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,475
Calibration 2     195,200
Calibration 3     197,118
ssj_ops@calibrated=196,159
100% 100.4% 196,159 197,001
90% 92.5% 176,543 181,382
80% 81.0% 156,927 158,916
70% 69.6% 137,311 136,546
60% 60.3% 117,695 118,359
50% 50.0% 98,079 98,030
40% 39.9% 78,463 78,345
30% 29.9% 58,848 58,570
20% 20.1% 39,232 39,378
10% 9.8% 19,616 19,164
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CDV8O73P1TA.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,918
Calibration 2     198,464
Calibration 3     198,805
ssj_ops@calibrated=198,634
100% 100.0% 198,634 198,594
90% 83.2% 178,771 165,339
80% 82.4% 158,908 163,771
70% 69.2% 139,044 137,498
60% 60.4% 119,181 119,912
50% 49.4% 99,317 98,188
40% 39.9% 79,454 79,321
30% 29.9% 59,590 59,477
20% 20.0% 39,727 39,665
10% 9.9% 19,863 19,745
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CDV8O73P1TA.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,108
Calibration 2     195,955
Calibration 3     196,415
ssj_ops@calibrated=196,185
100% 100.0% 196,185 196,091
90% 81.8% 176,567 160,493
80% 81.8% 156,948 160,428
70% 69.6% 137,330 136,505
60% 59.8% 117,711 117,297
50% 49.6% 98,093 97,233
40% 40.4% 78,474 79,227
30% 29.4% 58,856 57,695
20% 20.2% 39,237 39,612
10% 10.0% 19,619 19,707
Active Idle   0 0

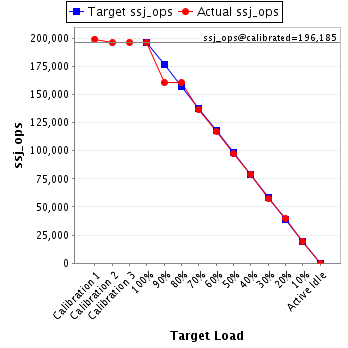

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CDV8O73P1TA.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     202,283
Calibration 2     202,164
Calibration 3     199,065
ssj_ops@calibrated=200,615
100% 100.2% 200,615 201,110
90% 85.4% 180,553 171,295
80% 81.0% 160,492 162,465
70% 70.0% 140,430 140,333
60% 60.3% 120,369 120,885
50% 49.6% 100,307 99,573
40% 39.9% 80,246 80,052
30% 30.2% 60,184 60,544
20% 20.1% 40,123 40,232
10% 9.9% 20,061 19,819
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-CDV8O73P1TA.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     202,207
Calibration 2     201,433
Calibration 3     201,494
ssj_ops@calibrated=201,464
100% 99.4% 201,464 200,351
90% 92.1% 181,317 185,569
80% 80.5% 161,171 162,178
70% 69.9% 141,025 140,801
60% 60.0% 120,878 120,812
50% 49.6% 100,732 100,016
40% 39.6% 80,585 79,733
30% 29.7% 60,439 59,822
20% 20.4% 40,293 41,071
10% 9.8% 20,146 19,721
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
