Dell Inc. PowerEdge C6320 (Intel Xeon E5-2699 v3 2.30 GHz) ssj_ops@100% = 3,240,865
ssj_ops@100% per JVM = 90,024
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jun 3, 2015
Hardware Availability: Jun-2015 Software Availability: Jun-2013 Publication: Jul 28, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,018,438
Calibration 2     3,234,459
Calibration 3     3,238,243
ssj_ops@calibrated=3,236,351
100% 100.1% 3,236,351 3,240,865
90% 90.9% 2,912,716 2,941,318
80% 79.9% 2,589,081 2,587,172
70% 70.0% 2,265,446 2,266,195
60% 60.0% 1,941,811 1,942,882
50% 50.0% 1,618,176 1,619,527
40% 40.2% 1,294,540 1,300,137
30% 30.0% 970,905 969,851
20% 19.9% 647,270 645,505
10% 10.0% 323,635 323,310
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Dell PE C6320
# of Identical Nodes: 4
Comment: N/A
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge C6320 (Intel Xeon E5-2699 v3 2.30 GHz)
Form Factor: 2U
CPU Name: Intel Xeon E5-2699 v3 2.30 GHz
CPU Characteristics: 18 core, 2.30 GHz, 45 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8196 MB
Memory Details: 8GB 2Rx8 PC4-2133P ECC; slots A1-4, B1-4 populated Dell P/N H8PGN
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 160GB SATA SSD Dell P/N PX9CC
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port 10GbE Intel 82559ES Integrated Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled,AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn825m -Xms975m -Xmx975 -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 -Xgcpolicy:gencon
JVM Affinity: /NODE [0,1,2,3] /AFFINITY[0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: 1.0.1
Management Firmware Version: iDRAC 2.05.05.05
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
FC630-03.001 90,210
FC630-03.002 88,812
FC630-03.003 90,838
FC630-03.004 89,562
FC630-03.005 85,581
FC630-03.006 90,597
FC630-03.007 89,215
FC630-03.008 90,778
FC630-03.009 90,433
FC630-03.010 89,170
FC630-03.011 90,151
FC630-03.012 90,465
FC630-03.013 91,049
FC630-03.014 86,966
FC630-03.015 90,990
FC630-03.016 91,273
FC630-03.017 91,319
FC630-03.018 90,906
FC630-03.019 89,001
FC630-03.020 88,634
FC630-03.021 90,164
FC630-03.022 90,299
FC630-03.023 91,864
FC630-03.024 88,001
FC630-03.025 90,566
FC630-03.026 90,979
FC630-03.027 90,997
FC630-03.028 87,898
FC630-03.029 88,235
FC630-03.030 90,935
FC630-03.031 92,051
FC630-03.032 92,482
FC630-03.033 88,671
FC630-03.034 89,039
FC630-03.035 91,045
FC630-03.036 91,690
ssj_ops@100% 3,240,865
ssj_ops@100% per JVM 90,024
Graph of per-instance results
JVM 'FC630-03.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,631
Calibration 2     90,276
Calibration 3     90,857
ssj_ops@calibrated=90,566
100% 99.6% 90,566 90,210
90% 90.6% 81,510 82,038
80% 80.7% 72,453 73,059
70% 69.4% 63,396 62,856
60% 60.5% 54,340 54,814
50% 49.8% 45,283 45,117
40% 39.8% 36,227 36,008
30% 30.1% 27,170 27,232
20% 20.1% 18,113 18,163
10% 9.8% 9,057 8,883
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

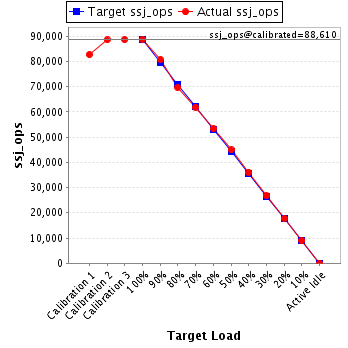

JVM 'FC630-03.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,705
Calibration 2     88,539
Calibration 3     88,681
ssj_ops@calibrated=88,610
100% 100.2% 88,610 88,812
90% 91.1% 79,749 80,763
80% 78.6% 70,888 69,670
70% 69.8% 62,027 61,886
60% 60.2% 53,166 53,337
50% 50.7% 44,305 44,955
40% 40.6% 35,444 36,011
30% 30.1% 26,583 26,704
20% 19.9% 17,722 17,657
10% 10.1% 8,861 8,925
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,108
Calibration 2     90,439
Calibration 3     90,787
ssj_ops@calibrated=90,613
100% 100.2% 90,613 90,838
90% 90.6% 81,552 82,120
80% 79.7% 72,490 72,177
70% 70.2% 63,429 63,600
60% 60.4% 54,368 54,713
50% 49.6% 45,306 44,975
40% 40.4% 36,245 36,591
30% 29.5% 27,184 26,711
20% 19.7% 18,123 17,806
10% 10.2% 9,061 9,233
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

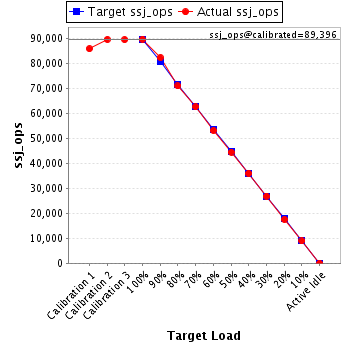

JVM 'FC630-03.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,670
Calibration 2     89,443
Calibration 3     89,350
ssj_ops@calibrated=89,396
100% 100.2% 89,396 89,562
90% 91.9% 80,457 82,175
80% 79.3% 71,517 70,848
70% 69.9% 62,577 62,484
60% 59.4% 53,638 53,081
50% 49.7% 44,698 44,429
40% 40.2% 35,759 35,933
30% 30.1% 26,819 26,870
20% 19.6% 17,879 17,489
10% 10.0% 8,940 8,921
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,025
Calibration 2     86,339
Calibration 3     85,843
ssj_ops@calibrated=86,091
100% 99.4% 86,091 85,581
90% 90.4% 77,482 77,823
80% 80.3% 68,873 69,114
70% 70.8% 60,264 60,932
60% 60.6% 51,655 52,142
50% 50.5% 43,045 43,448
40% 40.5% 34,436 34,833
30% 29.4% 25,827 25,333
20% 19.9% 17,218 17,175
10% 9.9% 8,609 8,521
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,346
Calibration 2     90,533
Calibration 3     91,112
ssj_ops@calibrated=90,822
100% 99.8% 90,822 90,597
90% 92.0% 81,740 83,593
80% 80.9% 72,658 73,477
70% 69.2% 63,576 62,841
60% 59.6% 54,493 54,140
50% 49.9% 45,411 45,354
40% 40.7% 36,329 36,978
30% 29.6% 27,247 26,886
20% 19.8% 18,164 17,949
10% 10.4% 9,082 9,474
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,051
Calibration 2     89,234
Calibration 3     89,440
ssj_ops@calibrated=89,337
100% 99.9% 89,337 89,215
90% 91.0% 80,403 81,273
80% 80.1% 71,470 71,527
70% 69.5% 62,536 62,099
60% 60.2% 53,602 53,742
50% 50.0% 44,668 44,678
40% 39.3% 35,735 35,103
30% 30.0% 26,801 26,781
20% 19.6% 17,867 17,500
10% 9.8% 8,934 8,729
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,241
Calibration 2     90,328
Calibration 3     90,568
ssj_ops@calibrated=90,448
100% 100.4% 90,448 90,778
90% 90.3% 81,403 81,664
80% 79.9% 72,358 72,305
70% 70.0% 63,314 63,318
60% 60.3% 54,269 54,515
50% 50.3% 45,224 45,520
40% 40.9% 36,179 36,987
30% 29.6% 27,134 26,805
20% 19.5% 18,090 17,679
10% 10.2% 9,045 9,237
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,897
Calibration 2     90,408
Calibration 3     91,057
ssj_ops@calibrated=90,733
100% 99.7% 90,733 90,433
90% 91.8% 81,659 83,277
80% 80.0% 72,586 72,604
70% 70.0% 63,513 63,492
60% 60.4% 54,440 54,847
50% 50.3% 45,366 45,670
40% 39.5% 36,293 35,880
30% 30.1% 27,220 27,342
20% 20.4% 18,147 18,485
10% 9.8% 9,073 8,904
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,280
Calibration 2     89,379
Calibration 3     89,080
ssj_ops@calibrated=89,229
100% 99.9% 89,229 89,170
90% 90.8% 80,307 81,050
80% 79.1% 71,384 70,538
70% 70.0% 62,461 62,439
60% 60.3% 53,538 53,803
50% 49.7% 44,615 44,363
40% 40.1% 35,692 35,765
30% 30.7% 26,769 27,391
20% 20.1% 17,846 17,917
10% 10.0% 8,923 8,892
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,072
Calibration 2     89,327
Calibration 3     89,272
ssj_ops@calibrated=89,299
100% 101.0% 89,299 90,151
90% 90.4% 80,370 80,757
80% 79.8% 71,440 71,218
70% 70.3% 62,510 62,762
60% 60.4% 53,580 53,919
50% 49.2% 44,650 43,918
40% 39.9% 35,720 35,658
30% 29.1% 26,790 26,012
20% 20.2% 17,860 18,071
10% 10.1% 8,930 9,059
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,946
Calibration 2     91,115
Calibration 3     90,823
ssj_ops@calibrated=90,969
100% 99.4% 90,969 90,465
90% 89.8% 81,872 81,703
80% 80.6% 72,775 73,304
70% 70.4% 63,678 64,063
60% 59.8% 54,581 54,361
50% 50.6% 45,485 46,061
40% 39.3% 36,388 35,783
30% 29.8% 27,291 27,126
20% 19.6% 18,194 17,794
10% 10.2% 9,097 9,304
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,052
Calibration 2     91,186
Calibration 3     90,962
ssj_ops@calibrated=91,074
100% 100.0% 91,074 91,049
90% 90.2% 81,967 82,165
80% 80.4% 72,859 73,214
70% 70.4% 63,752 64,119
60% 59.5% 54,644 54,177
50% 49.5% 45,537 45,124
40% 40.5% 36,430 36,862
30% 29.9% 27,322 27,187
20% 19.6% 18,215 17,875
10% 9.7% 9,107 8,858
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,107
Calibration 2     86,427
Calibration 3     86,961
ssj_ops@calibrated=86,694
100% 100.3% 86,694 86,966
90% 90.4% 78,025 78,360
80% 79.5% 69,355 68,893
70% 69.9% 60,686 60,630
60% 59.6% 52,016 51,660
50% 49.7% 43,347 43,113
40% 40.0% 34,678 34,650
30% 30.4% 26,008 26,322
20% 20.1% 17,339 17,418
10% 10.1% 8,669 8,787
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,124
Calibration 2     91,130
Calibration 3     91,095
ssj_ops@calibrated=91,112
100% 99.9% 91,112 90,990
90% 90.5% 82,001 82,494
80% 80.5% 72,890 73,374
70% 69.9% 63,779 63,669
60% 60.4% 54,667 55,040
50% 50.0% 45,556 45,595
40% 40.3% 36,445 36,701
30% 29.9% 27,334 27,250
20% 20.2% 18,222 18,441
10% 10.0% 9,111 9,096
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,049
Calibration 2     90,943
Calibration 3     90,958
ssj_ops@calibrated=90,950
100% 100.4% 90,950 91,273
90% 89.8% 81,855 81,683
80% 80.1% 72,760 72,859
70% 71.0% 63,665 64,551
60% 60.0% 54,570 54,591
50% 50.9% 45,475 46,296
40% 40.2% 36,380 36,605
30% 29.6% 27,285 26,913
20% 20.3% 18,190 18,462
10% 10.1% 9,095 9,204
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,160
Calibration 2     91,572
Calibration 3     91,421
ssj_ops@calibrated=91,496
100% 99.8% 91,496 91,319
90% 91.5% 82,347 83,697
80% 80.4% 73,197 73,600
70% 70.9% 64,047 64,862
60% 60.1% 54,898 55,030
50% 50.4% 45,748 46,071
40% 40.6% 36,599 37,145
30% 30.5% 27,449 27,940
20% 20.3% 18,299 18,563
10% 10.0% 9,150 9,141
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,065
Calibration 2     90,789
Calibration 3     91,399
ssj_ops@calibrated=91,094
100% 99.8% 91,094 90,906
90% 91.8% 81,985 83,644
80% 80.0% 72,875 72,852
70% 69.1% 63,766 62,901
60% 60.8% 54,657 55,347
50% 50.1% 45,547 45,627
40% 39.8% 36,438 36,269
30% 29.9% 27,328 27,221
20% 19.8% 18,219 18,070
10% 10.3% 9,109 9,399
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,574
Calibration 2     88,756
Calibration 3     88,703
ssj_ops@calibrated=88,729
100% 100.3% 88,729 89,001
90% 91.5% 79,857 81,166
80% 79.9% 70,984 70,928
70% 69.8% 62,111 61,919
60% 58.7% 53,238 52,063
50% 50.4% 44,365 44,708
40% 39.8% 35,492 35,335
30% 30.0% 26,619 26,644
20% 20.0% 17,746 17,760
10% 9.9% 8,873 8,825
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,469
Calibration 2     88,728
Calibration 3     88,721
ssj_ops@calibrated=88,724
100% 99.9% 88,724 88,634
90% 90.9% 79,852 80,677
80% 78.9% 70,980 70,043
70% 69.1% 62,107 61,295
60% 59.4% 53,235 52,743
50% 50.0% 44,362 44,321
40% 40.7% 35,490 36,073
30% 30.4% 26,617 26,958
20% 20.1% 17,745 17,807
10% 10.1% 8,872 8,925
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,632
Calibration 2     90,137
Calibration 3     90,154
ssj_ops@calibrated=90,145
100% 100.0% 90,145 90,164
90% 90.8% 81,131 81,809
80% 80.8% 72,116 72,827
70% 70.3% 63,102 63,353
60% 59.7% 54,087 53,851
50% 49.6% 45,073 44,726
40% 40.5% 36,058 36,482
30% 30.5% 27,044 27,457
20% 19.9% 18,029 17,907
10% 9.9% 9,015 8,954
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,143
Calibration 2     90,322
Calibration 3     89,986
ssj_ops@calibrated=90,154
100% 100.2% 90,154 90,299
90% 90.3% 81,139 81,385
80% 79.9% 72,123 72,036
70% 70.3% 63,108 63,404
60% 60.0% 54,092 54,050
50% 50.7% 45,077 45,696
40% 39.6% 36,062 35,721
30% 30.5% 27,046 27,466
20% 19.9% 18,031 17,958
10% 10.0% 9,015 9,025
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,453
Calibration 2     91,373
Calibration 3     91,661
ssj_ops@calibrated=91,517
100% 100.4% 91,517 91,864
90% 90.6% 82,365 82,928
80% 80.4% 73,214 73,560
70% 69.9% 64,062 63,946
60% 60.2% 54,910 55,097
50% 50.6% 45,758 46,309
40% 40.1% 36,607 36,678
30% 29.8% 27,455 27,248
20% 19.8% 18,303 18,152
10% 10.0% 9,152 9,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     81,464
Calibration 2     87,579
Calibration 3     87,421
ssj_ops@calibrated=87,500
100% 100.6% 87,500 88,001
90% 92.1% 78,750 80,594
80% 80.1% 70,000 70,131
70% 71.0% 61,250 62,122
60% 59.7% 52,500 52,271
50% 49.9% 43,750 43,633
40% 40.2% 35,000 35,199
30% 30.1% 26,250 26,299
20% 19.9% 17,500 17,379
10% 9.9% 8,750 8,675
Active Idle   0 0

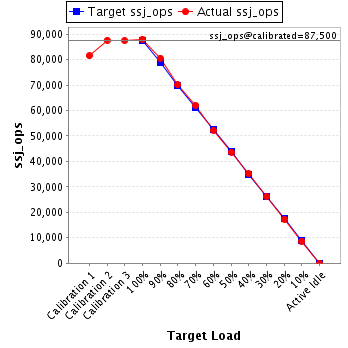

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,560
Calibration 2     90,747
Calibration 3     90,233
ssj_ops@calibrated=90,490
100% 100.1% 90,490 90,566
90% 90.9% 81,441 82,222
80% 80.0% 72,392 72,352
70% 69.8% 63,343 63,192
60% 59.9% 54,294 54,243
50% 49.7% 45,245 44,977
40% 40.3% 36,196 36,473
30% 29.6% 27,147 26,755
20% 20.6% 18,098 18,670
10% 10.1% 9,049 9,183
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,761
Calibration 2     90,338
Calibration 3     90,023
ssj_ops@calibrated=90,180
100% 100.9% 90,180 90,979
90% 90.9% 81,162 81,930
80% 80.5% 72,144 72,585
70% 69.9% 63,126 63,015
60% 60.1% 54,108 54,171
50% 49.9% 45,090 45,044
40% 40.7% 36,072 36,738
30% 29.4% 27,054 26,525
20% 19.8% 18,036 17,874
10% 9.7% 9,018 8,742
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,682
Calibration 2     90,782
Calibration 3     90,701
ssj_ops@calibrated=90,741
100% 100.3% 90,741 90,997
90% 89.9% 81,667 81,566
80% 79.2% 72,593 71,907
70% 69.0% 63,519 62,635
60% 60.4% 54,445 54,845
50% 50.1% 45,371 45,437
40% 41.1% 36,297 37,269
30% 29.4% 27,222 26,712
20% 20.1% 18,148 18,214
10% 10.0% 9,074 9,075
Active Idle   0 0

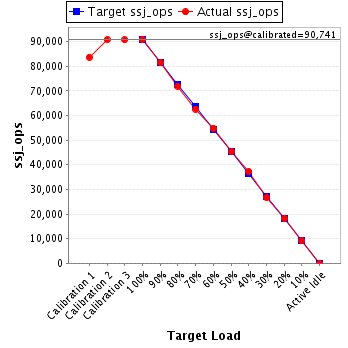

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,694
Calibration 2     87,997
Calibration 3     87,904
ssj_ops@calibrated=87,950
100% 99.9% 87,950 87,898
90% 91.5% 79,155 80,443
80% 80.4% 70,360 70,730
70% 69.4% 61,565 61,000
60% 60.2% 52,770 52,972
50% 50.0% 43,975 43,981
40% 40.0% 35,180 35,177
30% 30.0% 26,385 26,409
20% 20.5% 17,590 18,045
10% 10.0% 8,795 8,783
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,015
Calibration 2     87,552
Calibration 3     88,160
ssj_ops@calibrated=87,856
100% 100.4% 87,856 88,235
90% 91.6% 79,070 80,507
80% 80.2% 70,285 70,475
70% 70.3% 61,499 61,775
60% 60.6% 52,713 53,235
50% 49.9% 43,928 43,805
40% 40.3% 35,142 35,418
30% 30.2% 26,357 26,518
20% 20.0% 17,571 17,529
10% 10.2% 8,786 8,946
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,198
Calibration 2     90,975
Calibration 3     90,969
ssj_ops@calibrated=90,972
100% 100.0% 90,972 90,935
90% 91.2% 81,875 82,992
80% 79.5% 72,777 72,341
70% 69.9% 63,680 63,583
60% 60.0% 54,583 54,565
50% 49.5% 45,486 45,000
40% 40.0% 36,389 36,356
30% 30.7% 27,292 27,894
20% 19.9% 18,194 18,100
10% 10.1% 9,097 9,183
Active Idle   0 0

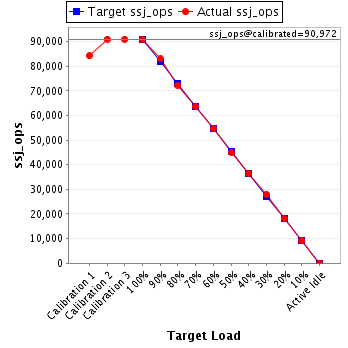

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,032
Calibration 2     90,518
Calibration 3     91,636
ssj_ops@calibrated=91,077
100% 101.1% 91,077 92,051
90% 91.2% 81,969 83,037
80% 79.1% 72,861 72,064
70% 69.4% 63,754 63,216
60% 59.8% 54,646 54,474
50% 49.9% 45,538 45,411
40% 39.8% 36,431 36,212
30% 30.1% 27,323 27,460
20% 19.7% 18,215 17,911
10% 9.9% 9,108 8,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,002
Calibration 2     91,378
Calibration 3     92,248
ssj_ops@calibrated=91,813
100% 100.7% 91,813 92,482
90% 90.8% 82,632 83,405
80% 80.2% 73,450 73,643
70% 71.1% 64,269 65,275
60% 59.7% 55,088 54,837
50% 49.8% 45,906 45,725
40% 39.7% 36,725 36,433
30% 29.8% 27,544 27,386
20% 20.1% 18,363 18,496
10% 9.9% 9,181 9,092
Active Idle   0 0

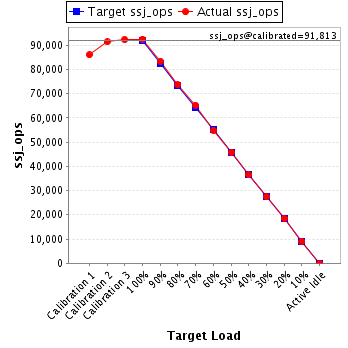

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,078
Calibration 2     88,851
Calibration 3     88,483
ssj_ops@calibrated=88,667
100% 100.0% 88,667 88,671
90% 90.8% 79,800 80,473
80% 79.5% 70,934 70,491
70% 69.7% 62,067 61,808
60% 60.0% 53,200 53,240
50% 49.6% 44,333 43,971
40% 39.9% 35,467 35,362
30% 30.4% 26,600 26,927
20% 19.7% 17,733 17,500
10% 9.5% 8,867 8,458
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,349
Calibration 2     88,988
Calibration 3     88,891
ssj_ops@calibrated=88,939
100% 100.1% 88,939 89,039
90% 90.6% 80,045 80,572
80% 79.8% 71,151 70,981
70% 70.3% 62,257 62,521
60% 59.4% 53,364 52,864
50% 49.9% 44,470 44,353
40% 40.7% 35,576 36,228
30% 29.9% 26,682 26,588
20% 19.8% 17,788 17,638
10% 9.8% 8,894 8,717
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,563
Calibration 2     90,755
Calibration 3     90,900
ssj_ops@calibrated=90,827
100% 100.2% 90,827 91,045
90% 91.1% 81,745 82,749
80% 79.5% 72,662 72,183
70% 70.7% 63,579 64,237
60% 60.1% 54,496 54,617
50% 50.6% 45,414 46,003
40% 39.7% 36,331 36,102
30% 29.7% 27,248 26,972
20% 19.8% 18,165 17,962
10% 9.7% 9,083 8,774
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-03.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,241
Calibration 2     91,280
Calibration 3     91,783
ssj_ops@calibrated=91,532
100% 100.2% 91,532 91,690
90% 90.2% 82,379 82,584
80% 80.0% 73,225 73,261
70% 70.4% 64,072 64,395
60% 60.6% 54,919 55,484
50% 50.4% 45,766 46,112
40% 40.6% 36,613 37,117
30% 30.2% 27,460 27,609
20% 19.8% 18,306 18,091
10% 10.1% 9,153 9,225
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
