Dell Inc. PowerEdge C6320 (Intel Xeon E5-2699 v3 2.30 GHz) ssj_ops@100% = 3,235,399
ssj_ops@100% per JVM = 89,872
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jun 3, 2015
Hardware Availability: Jun-2015 Software Availability: Jun-2013 Publication: Jul 28, 2015
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     3,021,056
Calibration 2     3,229,966
Calibration 3     3,234,512
ssj_ops@calibrated=3,232,239
100% 100.1% 3,232,239 3,235,399
90% 90.7% 2,909,015 2,931,087
80% 79.8% 2,585,791 2,580,422
70% 69.8% 2,262,567 2,256,731
60% 60.0% 1,939,343 1,938,022
50% 50.0% 1,616,119 1,616,191
40% 40.0% 1,292,896 1,293,768
30% 30.0% 969,672 968,683
20% 19.9% 646,448 641,661
10% 10.0% 323,224 323,722
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Dell PE C6320
# of Identical Nodes: 4
Comment: N/A
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge C6320 (Intel Xeon E5-2699 v3 2.30 GHz)
Form Factor: 2U
CPU Name: Intel Xeon E5-2699 v3 2.30 GHz
CPU Characteristics: 18 core, 2.30 GHz, 45 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 36 cores, 2 chips, 18 cores/chip
Hardware Threads: 72 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 45 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 64
# and size of DIMM: 8 x 8196 MB
Memory Details: 8GB 2Rx8 PC4-2133P ECC; slots A1-4, B1-4 populated Dell P/N H8PGN
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 160GB SATA SSD Dell P/N PX9CC
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port 10GbE Intel 82559ES Integrated Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled,AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn825m -Xms975m -Xmx975 -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads2 -Xgcpolicy:gencon
JVM Affinity: /NODE [0,1,2,3] /AFFINITY[0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000]
JVM Instances: 36
JVM Initial Heap (MB): 975
JVM Maximum Heap (MB): 975
JVM Address Bits: 64
Boot Firmware Version: 1.0.1
Management Firmware Version: iDRAC 2.05.05.05
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM WebSphere Application Server V8.5.0.0, Microsoft Hotfix for Windows (KB2510206)
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
FC630-01.001 90,381
FC630-01.002 90,208
FC630-01.003 90,429
FC630-01.004 91,290
FC630-01.005 85,352
FC630-01.006 89,575
FC630-01.007 89,134
FC630-01.008 90,468
FC630-01.009 91,287
FC630-01.010 89,559
FC630-01.011 90,720
FC630-01.012 90,203
FC630-01.013 89,865
FC630-01.014 86,975
FC630-01.015 91,000
FC630-01.016 90,651
FC630-01.017 91,430
FC630-01.018 90,951
FC630-01.019 89,483
FC630-01.020 89,511
FC630-01.021 89,602
FC630-01.022 88,756
FC630-01.023 89,720
FC630-01.024 88,645
FC630-01.025 91,220
FC630-01.026 88,869
FC630-01.027 90,804
FC630-01.028 88,864
FC630-01.029 88,657
FC630-01.030 89,921
FC630-01.031 90,860
FC630-01.032 89,873
FC630-01.033 89,724
FC630-01.034 91,496
FC630-01.035 90,646
FC630-01.036 89,268
ssj_ops@100% 3,235,399
ssj_ops@100% per JVM 89,872
Graph of per-instance results
JVM 'FC630-01.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,281
Calibration 2     90,118
Calibration 3     90,551
ssj_ops@calibrated=90,335
100% 100.1% 90,335 90,381
90% 91.3% 81,301 82,513
80% 79.5% 72,268 71,796
70% 70.0% 63,234 63,242
60% 59.7% 54,201 53,927
50% 50.3% 45,167 45,394
40% 40.4% 36,134 36,454
30% 29.9% 27,100 26,977
20% 19.4% 18,067 17,487
10% 9.9% 9,033 8,912
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,116
Calibration 2     89,803
Calibration 3     90,126
ssj_ops@calibrated=89,965
100% 100.3% 89,965 90,208
90% 91.2% 80,968 82,067
80% 79.7% 71,972 71,690
70% 70.2% 62,975 63,192
60% 59.9% 53,979 53,871
50% 49.8% 44,982 44,837
40% 39.7% 35,986 35,726
30% 29.9% 26,989 26,926
20% 19.4% 17,993 17,478
10% 10.1% 8,996 9,129
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,892
Calibration 2     90,566
Calibration 3     90,923
ssj_ops@calibrated=90,745
100% 99.7% 90,745 90,429
90% 91.2% 81,670 82,796
80% 79.4% 72,596 72,030
70% 69.1% 63,521 62,725
60% 59.5% 54,447 54,006
50% 50.3% 45,372 45,644
40% 40.5% 36,298 36,747
30% 29.6% 27,223 26,869
20% 19.9% 18,149 18,091
10% 10.1% 9,074 9,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,138
Calibration 2     90,824
Calibration 3     90,630
ssj_ops@calibrated=90,727
100% 100.6% 90,727 91,290
90% 89.5% 81,654 81,185
80% 79.4% 72,582 72,071
70% 69.0% 63,509 62,641
60% 60.6% 54,436 54,995
50% 50.5% 45,364 45,803
40% 39.6% 36,291 35,967
30% 29.8% 27,218 27,041
20% 19.5% 18,145 17,711
10% 10.1% 9,073 9,208
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,488
Calibration 2     85,736
Calibration 3     85,534
ssj_ops@calibrated=85,635
100% 99.7% 85,635 85,352
90% 89.9% 77,072 76,993
80% 80.7% 68,508 69,126
70% 68.6% 59,945 58,716
60% 60.5% 51,381 51,800
50% 49.6% 42,818 42,443
40% 39.1% 34,254 33,483
30% 30.1% 25,691 25,805
20% 20.1% 17,127 17,190
10% 10.1% 8,564 8,683
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,470
Calibration 2     89,298
Calibration 3     89,895
ssj_ops@calibrated=89,596
100% 100.0% 89,596 89,575
90% 91.6% 80,637 82,063
80% 80.5% 71,677 72,133
70% 68.9% 62,717 61,758
60% 59.6% 53,758 53,362
50% 50.2% 44,798 45,000
40% 39.9% 35,839 35,787
30% 30.1% 26,879 27,000
20% 19.8% 17,919 17,700
10% 9.6% 8,960 8,596
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

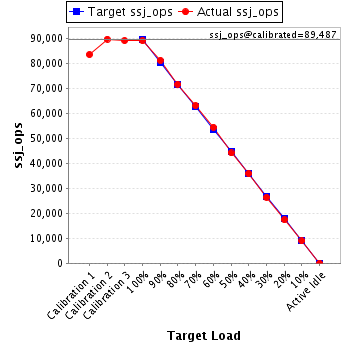

JVM 'FC630-01.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,583
Calibration 2     89,775
Calibration 3     89,199
ssj_ops@calibrated=89,487
100% 99.6% 89,487 89,134
90% 90.8% 80,538 81,281
80% 80.1% 71,589 71,695
70% 70.6% 62,641 63,148
60% 60.9% 53,692 54,471
50% 49.4% 44,743 44,195
40% 40.1% 35,795 35,892
30% 29.5% 26,846 26,429
20% 19.4% 17,897 17,388
10% 10.0% 8,949 8,971
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,016
Calibration 2     90,212
Calibration 3     90,429
ssj_ops@calibrated=90,320
100% 100.2% 90,320 90,468
90% 90.1% 81,288 81,363
80% 80.0% 72,256 72,221
70% 70.0% 63,224 63,220
60% 58.8% 54,192 53,087
50% 49.6% 45,160 44,800
40% 40.6% 36,128 36,641
30% 29.6% 27,096 26,711
20% 19.9% 18,064 17,933
10% 10.3% 9,032 9,275
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,961
Calibration 2     91,026
Calibration 3     90,921
ssj_ops@calibrated=90,974
100% 100.3% 90,974 91,287
90% 91.0% 81,876 82,767
80% 79.9% 72,779 72,653
70% 69.9% 63,682 63,585
60% 60.7% 54,584 55,186
50% 49.9% 45,487 45,437
40% 40.0% 36,389 36,394
30% 29.7% 27,292 27,000
20% 19.8% 18,195 18,036
10% 10.2% 9,097 9,312
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,737
Calibration 2     90,005
Calibration 3     89,183
ssj_ops@calibrated=89,594
100% 100.0% 89,594 89,559
90% 91.9% 80,634 82,366
80% 79.4% 71,675 71,118
70% 69.7% 62,716 62,420
60% 60.3% 53,756 54,022
50% 50.7% 44,797 45,428
40% 40.3% 35,838 36,071
30% 30.3% 26,878 27,105
20% 20.2% 17,919 18,054
10% 10.1% 8,959 9,054
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,270
Calibration 2     90,098
Calibration 3     90,024
ssj_ops@calibrated=90,061
100% 100.7% 90,061 90,720
90% 90.6% 81,055 81,555
80% 79.6% 72,049 71,733
70% 70.3% 63,043 63,308
60% 60.1% 54,037 54,134
50% 49.6% 45,031 44,705
40% 39.9% 36,024 35,957
30% 29.9% 27,018 26,901
20% 20.1% 18,012 18,108
10% 9.6% 9,006 8,646
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,742
Calibration 2     90,397
Calibration 3     90,441
ssj_ops@calibrated=90,419
100% 99.8% 90,419 90,203
90% 91.2% 81,377 82,451
80% 80.0% 72,335 72,300
70% 69.5% 63,294 62,858
60% 60.2% 54,252 54,451
50% 50.2% 45,210 45,418
40% 39.7% 36,168 35,897
30% 29.7% 27,126 26,829
20% 19.8% 18,084 17,882
10% 10.0% 9,042 9,004
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

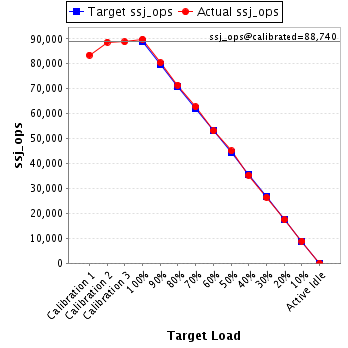

JVM 'FC630-01.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,514
Calibration 2     88,689
Calibration 3     88,791
ssj_ops@calibrated=88,740
100% 101.3% 88,740 89,865
90% 90.6% 79,866 80,424
80% 80.5% 70,992 71,425
70% 70.7% 62,118 62,736
60% 59.9% 53,244 53,114
50% 50.8% 44,370 45,056
40% 39.9% 35,496 35,368
30% 29.8% 26,622 26,483
20% 19.6% 17,748 17,428
10% 10.0% 8,874 8,866
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

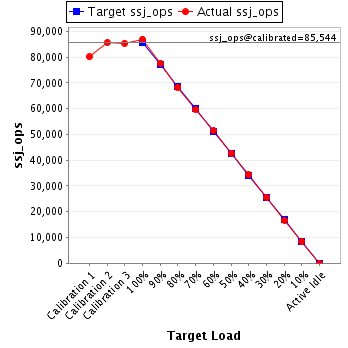

JVM 'FC630-01.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     80,120
Calibration 2     85,691
Calibration 3     85,396
ssj_ops@calibrated=85,544
100% 101.7% 85,544 86,975
90% 90.7% 76,989 77,567
80% 79.9% 68,435 68,376
70% 69.8% 59,881 59,732
60% 60.2% 51,326 51,480
50% 50.0% 42,772 42,740
40% 40.1% 34,217 34,271
30% 30.0% 25,663 25,665
20% 19.6% 17,109 16,751
10% 9.9% 8,554 8,441
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,212
Calibration 2     91,168
Calibration 3     91,375
ssj_ops@calibrated=91,271
100% 99.7% 91,271 91,000
90% 90.5% 82,144 82,584
80% 79.5% 73,017 72,588
70% 69.5% 63,890 63,407
60% 59.6% 54,763 54,440
50% 50.3% 45,636 45,865
40% 40.8% 36,509 37,263
30% 29.7% 27,381 27,150
20% 20.2% 18,254 18,453
10% 10.2% 9,127 9,337
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,555
Calibration 2     90,807
Calibration 3     91,062
ssj_ops@calibrated=90,934
100% 99.7% 90,934 90,651
90% 90.9% 81,841 82,700
80% 80.0% 72,748 72,734
70% 69.6% 63,654 63,321
60% 59.9% 54,561 54,508
50% 50.5% 45,467 45,917
40% 40.6% 36,374 36,953
30% 30.1% 27,280 27,366
20% 20.9% 18,187 19,011
10% 9.5% 9,093 8,650
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,145
Calibration 2     91,590
Calibration 3     91,522
ssj_ops@calibrated=91,556
100% 99.9% 91,556 91,430
90% 90.7% 82,400 83,003
80% 80.6% 73,245 73,761
70% 68.9% 64,089 63,086
60% 60.1% 54,934 55,041
50% 50.5% 45,778 46,277
40% 39.9% 36,622 36,497
30% 30.5% 27,467 27,880
20% 19.1% 18,311 17,503
10% 9.7% 9,156 8,900
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,886
Calibration 2     90,734
Calibration 3     91,032
ssj_ops@calibrated=90,883
100% 100.1% 90,883 90,951
90% 90.0% 81,795 81,825
80% 78.5% 72,707 71,377
70% 70.5% 63,618 64,029
60% 59.9% 54,530 54,478
50% 49.4% 45,442 44,879
40% 39.4% 36,353 35,841
30% 30.6% 27,265 27,814
20% 20.0% 18,177 18,137
10% 10.1% 9,088 9,217
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,881
Calibration 2     89,494
Calibration 3     89,717
ssj_ops@calibrated=89,606
100% 99.9% 89,606 89,483
90% 89.8% 80,645 80,487
80% 79.4% 71,684 71,165
70% 69.9% 62,724 62,664
60% 59.2% 53,763 53,090
50% 50.9% 44,803 45,616
40% 39.4% 35,842 35,273
30% 29.7% 26,882 26,645
20% 20.0% 17,921 17,895
10% 10.0% 8,961 8,975
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,324
Calibration 2     89,408
Calibration 3     89,376
ssj_ops@calibrated=89,392
100% 100.1% 89,392 89,511
90% 90.3% 80,453 80,710
80% 80.4% 71,514 71,868
70% 70.3% 62,574 62,813
60% 59.9% 53,635 53,579
50% 49.3% 44,696 44,114
40% 41.5% 35,757 37,103
30% 29.1% 26,818 25,982
20% 20.1% 17,878 17,950
10% 10.3% 8,939 9,225
Active Idle   0 0

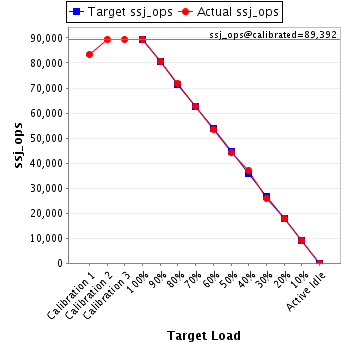

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,645
Calibration 2     89,775
Calibration 3     90,018
ssj_ops@calibrated=89,897
100% 99.7% 89,897 89,602
90% 90.6% 80,907 81,491
80% 79.7% 71,917 71,622
70% 70.1% 62,928 63,019
60% 60.4% 53,938 54,289
50% 50.7% 44,948 45,619
40% 40.2% 35,959 36,143
30% 29.2% 26,969 26,282
20% 20.0% 17,979 17,978
10% 10.0% 8,990 8,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,394
Calibration 2     88,769
Calibration 3     88,724
ssj_ops@calibrated=88,747
100% 100.0% 88,747 88,756
90% 90.9% 79,872 80,706
80% 79.3% 70,997 70,346
70% 70.1% 62,123 62,169
60% 60.5% 53,248 53,735
50% 50.3% 44,373 44,629
40% 40.1% 35,499 35,590
30% 30.2% 26,624 26,804
20% 19.8% 17,749 17,532
10% 10.2% 8,875 9,048
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,994
Calibration 2     89,421
Calibration 3     89,860
ssj_ops@calibrated=89,640
100% 100.1% 89,640 89,720
90% 90.1% 80,676 80,795
80% 79.3% 71,712 71,052
70% 69.8% 62,748 62,589
60% 60.1% 53,784 53,862
50% 49.8% 44,820 44,611
40% 39.8% 35,856 35,662
30% 30.0% 26,892 26,926
20% 19.8% 17,928 17,787
10% 9.8% 8,964 8,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,376
Calibration 2     88,094
Calibration 3     89,200
ssj_ops@calibrated=88,647
100% 100.0% 88,647 88,645
90% 91.1% 79,782 80,796
80% 79.7% 70,918 70,620
70% 69.8% 62,053 61,858
60% 59.6% 53,188 52,794
50% 49.6% 44,324 43,950
40% 40.1% 35,459 35,523
30% 30.2% 26,594 26,746
20% 19.9% 17,729 17,640
10% 9.8% 8,865 8,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,055
Calibration 2     90,595
Calibration 3     91,119
ssj_ops@calibrated=90,857
100% 100.4% 90,857 91,220
90% 90.7% 81,771 82,424
80% 79.6% 72,686 72,290
70% 71.0% 63,600 64,520
60% 60.5% 54,514 54,954
50% 49.7% 45,429 45,192
40% 40.5% 36,343 36,812
30% 30.2% 27,257 27,462
20% 19.9% 18,171 18,097
10% 9.9% 9,086 9,026
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,087
Calibration 2     88,425
Calibration 3     89,004
ssj_ops@calibrated=88,715
100% 100.2% 88,715 88,869
90% 91.3% 79,843 81,023
80% 79.1% 70,972 70,184
70% 69.8% 62,100 61,956
60% 59.2% 53,229 52,545
50% 50.0% 44,357 44,334
40% 39.4% 35,486 34,925
30% 30.4% 26,614 26,938
20% 19.8% 17,743 17,547
10% 10.2% 8,871 9,020
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,740
Calibration 2     90,870
Calibration 3     90,543
ssj_ops@calibrated=90,707
100% 100.1% 90,707 90,804
90% 91.1% 81,636 82,674
80% 80.0% 72,565 72,537
70% 70.1% 63,495 63,621
60% 60.1% 54,424 54,470
50% 49.6% 45,353 44,952
40% 39.9% 36,283 36,200
30% 30.3% 27,212 27,523
20% 19.7% 18,141 17,907
10% 10.0% 9,071 9,096
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,175
Calibration 2     88,410
Calibration 3     88,764
ssj_ops@calibrated=88,587
100% 100.3% 88,587 88,864
90% 91.3% 79,728 80,863
80% 80.7% 70,869 71,498
70% 69.6% 62,011 61,666
60% 60.0% 53,152 53,146
50% 49.9% 44,293 44,236
40% 40.0% 35,435 35,406
30% 29.7% 26,576 26,333
20% 19.8% 17,717 17,532
10% 10.0% 8,859 8,879
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,773
Calibration 2     88,900
Calibration 3     88,752
ssj_ops@calibrated=88,826
100% 99.8% 88,826 88,657
90% 89.6% 79,943 79,593
80% 79.9% 71,061 70,995
70% 69.4% 62,178 61,664
60% 60.3% 53,295 53,581
50% 49.7% 44,413 44,167
40% 39.9% 35,530 35,463
30% 29.8% 26,648 26,492
20% 19.6% 17,765 17,417
10% 10.1% 8,883 9,008
Active Idle   0 0

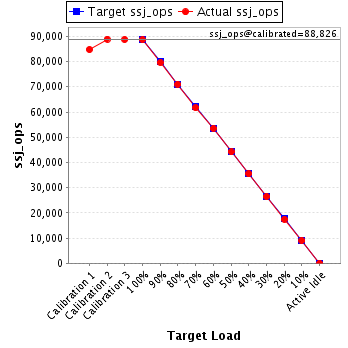

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,716
Calibration 2     89,783
Calibration 3     90,147
ssj_ops@calibrated=89,965
100% 100.0% 89,965 89,921
90% 89.9% 80,969 80,888
80% 79.7% 71,972 71,691
70% 70.2% 62,976 63,178
60% 59.5% 53,979 53,515
50% 49.5% 44,983 44,497
40% 39.9% 35,986 35,866
30% 29.8% 26,990 26,778
20% 19.8% 17,993 17,791
10% 10.1% 8,997 9,125
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,661
Calibration 2     90,519
Calibration 3     90,610
ssj_ops@calibrated=90,564
100% 100.3% 90,564 90,860
90% 91.6% 81,508 82,971
80% 80.4% 72,451 72,788
70% 70.3% 63,395 63,694
60% 59.9% 54,339 54,214
50% 50.9% 45,282 46,107
40% 39.6% 36,226 35,900
30% 30.1% 27,169 27,231
20% 19.9% 18,113 18,005
10% 10.0% 9,056 9,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,747
Calibration 2     89,590
Calibration 3     90,113
ssj_ops@calibrated=89,852
100% 100.0% 89,852 89,873
90% 90.6% 80,866 81,383
80% 79.4% 71,881 71,304
70% 70.2% 62,896 63,090
60% 59.6% 53,911 53,571
50% 49.8% 44,926 44,723
40% 39.7% 35,941 35,672
30% 30.2% 26,955 27,168
20% 19.8% 17,970 17,814
10% 9.9% 8,985 8,900
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,565
Calibration 2     89,920
Calibration 3     90,100
ssj_ops@calibrated=90,010
100% 99.7% 90,010 89,724
90% 90.1% 81,009 81,056
80% 80.6% 72,008 72,592
70% 69.3% 63,007 62,354
60% 59.1% 54,006 53,152
50% 49.3% 45,005 44,338
40% 40.1% 36,004 36,052
30% 30.3% 27,003 27,296
20% 20.1% 18,002 18,061
10% 10.3% 9,001 9,249
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

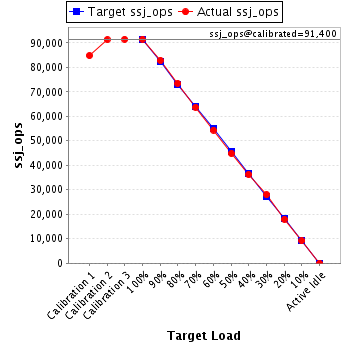

JVM 'FC630-01.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,777
Calibration 2     91,325
Calibration 3     91,475
ssj_ops@calibrated=91,400
100% 100.1% 91,400 91,496
90% 90.6% 82,260 82,842
80% 80.3% 73,120 73,439
70% 69.7% 63,980 63,742
60% 59.5% 54,840 54,407
50% 49.0% 45,700 44,819
40% 39.7% 36,560 36,247
30% 30.6% 27,420 27,989
20% 19.6% 18,280 17,946
10% 10.1% 9,140 9,205
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,236
Calibration 2     90,558
Calibration 3     90,677
ssj_ops@calibrated=90,617
100% 100.0% 90,617 90,646
90% 90.3% 81,556 81,808
80% 79.6% 72,494 72,089
70% 70.3% 63,432 63,681
60% 60.3% 54,370 54,605
50% 50.5% 45,309 45,777
40% 40.7% 36,247 36,917
30% 30.2% 27,185 27,329
20% 20.2% 18,123 18,303
10% 10.1% 9,062 9,158
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'FC630-01.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,780
Calibration 2     89,572
Calibration 3     89,278
ssj_ops@calibrated=89,425
100% 99.8% 89,425 89,268
90% 90.7% 80,482 81,073
80% 80.0% 71,540 71,515
70% 68.6% 62,597 61,328
60% 60.5% 53,655 54,140
50% 50.0% 44,712 44,673
40% 40.0% 35,770 35,805
30% 30.0% 26,827 26,806
20% 20.3% 17,885 18,118
10% 10.0% 8,942 8,945
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
