Fujitsu FUJITSU Server PRIMERGY CX2550 M1 SPECpower_ssj2008 = 9,971 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Nov 15, 2014
Hardware Availability: Dec-2014 Software Availability: Jun-2013 Publication: Dec 10, 2014
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 1,146 20.9
Calibration 2 1,156 21.1
Calibration 3 1,155 21.3
Calibration 4 1,154 21.4
100% 1,152 21.2
90% 1,036 21.2
80% 914 21.2
70% 791 21.1
60% 681 21.1
50% 602 21.1
40% 538 21.1
30% 474 21.1
20% 415 21.1
10% 350 21.1
Active Idle 171 21.0

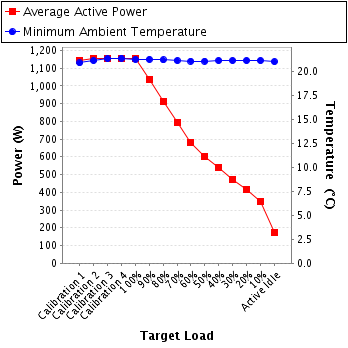

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11770806
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Atlas Copco Tools Central Europe GmbH
Calibration Label: W13088001
Date of Calibration: 15-Sep-2014
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.7.0-538b1562-20140802
Setup Description: Connected to PSU 1 and PSU 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 229 250.0 5.05 10.0 0.991 1,146 0.1%
Calibration 2 229 250.0 5.09 10.0 0.991 1,156 0.1%
Calibration 3 229 250.0 5.09 10.0 0.991 1,155 0.1%
Calibration 4 229 250.0 5.09 10.0 0.991 1,154 0.1%
100% 229 250.0 5.08 10.0 0.991 1,152 0.1%
90% 229 250.0 4.56 5.0 0.989 1,036 0.1%
80% 230 250.0 4.04 5.0 0.987 914 0.1%
70% 230 250.0 3.50 5.0 0.982 791 0.1%
60% 230 250.0 3.03 5.0 0.977 681 0.1%
50% 230 250.0 2.69 5.0 0.975 602 0.1%
40% 230 250.0 2.41 2.5 0.973 538 0.1%
30% 230 250.0 2.13 2.5 0.970 474 0.1%
20% 230 250.0 1.87 2.5 0.964 415 0.1%
10% 230 250.0 1.60 2.5 0.953 350 0.1%
Active Idle 230 250.0 0.862 1.2 0.866 171 0.1%
Power details for pwr1
