DEPO Computers DEPO Race X340H | SPECpower_ssj2008 = 1,469 overall ssj_ops/watt | ||||
Test Sponsor: | DEPO Computers | SPEC License #: | 4430 | Test Method: | Single Node |
Tested By: | DEPO Computers | Test Location: | Moscow, Russian Federation | Test Date: | Nov 19, 2014 |
Hardware Availability: | May-2014 | Software Availability: | Jun-2013 | Publication: | Dec 19, 2014 |
System Source: | Single Supplier | System Designation: | Personal System | Power Provisioning: | Line-powered |

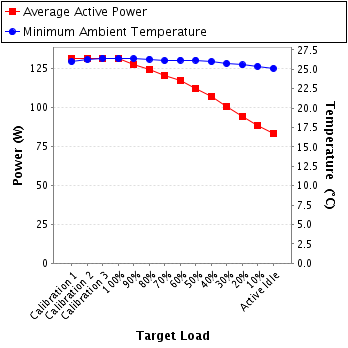

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 131 | 26.0 |
Calibration 2 | 132 | 26.2 |
Calibration 3 | 132 | 26.4 |
100% | 131 | 26.4 |
90% | 128 | 26.4 |
80% | 124 | 26.3 |
70% | 120 | 26.1 |
60% | 117 | 26.2 |
50% | 112 | 26.2 |
40% | 107 | 26.0 |
30% | 101 | 25.8 |
20% | 94.3 | 25.6 |
10% | 88.2 | 25.4 |
Active Idle | 83.2 | 25.1 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
Model: | WT310 Digital Power Meter |
Serial Number: | C2PH22077V |
Connectivity: | USB |
Input Connection: | Default |
Metrology Institute: | State Committee of the Russian Federation for Standardization, Metrology and Certification (GOSSTANDART) |
Accredited by: | FBU "ROSTEST - MOSKVA", Laboratory 551 |
Calibration Label: | CK 0035201 |
Date of Calibration: | 12-May-2014 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.7.0-538b1562-20140802 |
Setup Description: | Connect to PSU and monitor |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 25 mm in front of SUT main airflow intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 212 | 300.0 | 0.782 | 1.0 | 0.791 | 131 | 0.4% |
Calibration 2 | 212 | 300.0 | 0.784 | 1.0 | 0.792 | 132 | 0.4% |
Calibration 3 | 212 | 300.0 | 0.786 | 1.0 | 0.791 | 132 | 0.4% |
100% | 212 | 300.0 | 0.787 | 1.0 | 0.788 | 131 | 0.4% |
90% | 212 | 300.0 | 0.777 | 1.0 | 0.775 | 128 | 0.4% |
80% | 212 | 300.0 | 0.766 | 1.0 | 0.765 | 124 | 0.5% |
70% | 212 | 300.0 | 0.749 | 1.0 | 0.757 | 120 | 0.5% |
60% | 213 | 300.0 | 0.735 | 1.0 | 0.749 | 117 | 0.5% |
50% | 213 | 300.0 | 0.717 | 1.0 | 0.736 | 112 | 0.5% |
40% | 214 | 300.0 | 0.695 | 1.0 | 0.720 | 107 | 0.5% |
30% | 214 | 300.0 | 0.670 | 1.0 | 0.703 | 101 | 0.5% |
20% | 213 | 300.0 | 0.641 | 1.0 | 0.689 | 94.3 | 0.5% |
10% | 213 | 300.0 | 0.613 | 1.0 | 0.675 | 88.2 | 0.6% |
Active Idle | 214 | 300.0 | 0.591 | 1.0 | 0.659 | 83.2 | 0.6% |
