Fujitsu PRIMERGY RX100 S8 (Intel Xeon E3-1265Lv3) ssj_ops@100% = 490,149
ssj_ops@100% per JVM = 122,537
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Oct 14, 2013
Hardware Availability: Nov-2013 Software Availability: Jun-2012 Publication: Nov 13, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     473,813
Calibration 2     489,232
Calibration 3     489,879
ssj_ops@calibrated=489,555
100% 100.1% 489,555 490,149
90% 90.9% 440,600 444,960
80% 80.6% 391,644 394,420
70% 70.3% 342,689 344,398
60% 59.8% 293,733 292,836
50% 49.7% 244,778 243,380
40% 40.0% 195,822 195,626
30% 30.0% 146,867 146,764
20% 20.0% 97,911 98,054
10% 10.0% 48,956 48,739
Active Idle   0 0
Graph of results
System Under Test
Set: 'RX100 S8'
Set Identifier: RX100 S8
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX100 S8 (Intel Xeon E3-1265Lv3)
Form Factor: 1U
CPU Name: Intel Xeon E3-1265Lv3
CPU Characteristics: 4-Core, 2.50GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.70 GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4 GB 2Rx8 PC3L-12800E-11, ECC; slots 1A, 1B populated
Power Supply Quantity and Rating (W): 1 x 300
Power Supply Details: Fujitsu Technology Solutions S26113-E614-V70
Disk Drive: 1 x 250GB, HDD, 2.5" SATA, S26361-F3816-E250
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1024m -Xms1024m -Xmn800m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu
JVM Affinity: start /AFFINITY [0x3,0xC,0x30,0xC0]
JVM Instances: 4
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: R1.5.0
Management Firmware Version: 7.10F
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-BTR51M8MNK5.001 119,868
WIN-BTR51M8MNK5.002 123,664
WIN-BTR51M8MNK5.003 123,220
WIN-BTR51M8MNK5.004 123,397
ssj_ops@100% 490,149
ssj_ops@100% per JVM 122,537

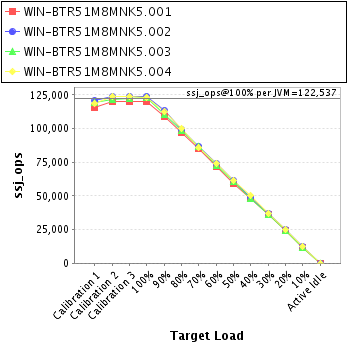

Graph of per-instance results
JVM 'WIN-BTR51M8MNK5.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,527
Calibration 2     120,269
Calibration 3     119,844
ssj_ops@calibrated=120,056
100% 99.8% 120,056 119,868
90% 90.6% 108,051 108,800
80% 80.9% 96,045 97,089
70% 70.8% 84,040 84,983
60% 60.1% 72,034 72,176
50% 49.5% 60,028 59,463
40% 40.0% 48,023 47,985
30% 30.1% 36,017 36,184
20% 20.0% 24,011 23,970
10% 9.9% 12,006 11,859
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BTR51M8MNK5.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,580
Calibration 2     123,461
Calibration 3     124,022
ssj_ops@calibrated=123,742
100% 99.9% 123,742 123,664
90% 91.4% 111,368 113,159
80% 80.0% 98,993 98,992
70% 70.1% 86,619 86,734
60% 59.6% 74,245 73,728
50% 49.7% 61,871 61,511
40% 39.6% 49,497 49,019
30% 30.0% 37,123 37,071
20% 20.1% 24,748 24,879
10% 9.9% 12,374 12,306
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BTR51M8MNK5.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,998
Calibration 2     121,822
Calibration 3     122,493
ssj_ops@calibrated=122,158
100% 100.9% 122,158 123,220
90% 90.6% 109,942 110,689
80% 80.4% 97,726 98,239
70% 71.1% 85,510 86,867
60% 59.5% 73,295 72,690
50% 49.7% 61,079 60,756
40% 39.6% 48,863 48,330
30% 29.7% 36,647 36,309
20% 20.0% 24,432 24,483
10% 9.9% 12,216 12,051
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BTR51M8MNK5.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,707
Calibration 2     123,680
Calibration 3     123,519
ssj_ops@calibrated=123,600
100% 99.8% 123,600 123,397
90% 90.9% 111,240 112,312
80% 81.0% 98,880 100,100
70% 69.4% 86,520 85,815
60% 60.1% 74,160 74,242
50% 49.9% 61,800 61,649
40% 40.7% 49,440 50,292
30% 30.1% 37,080 37,201
20% 20.0% 24,720 24,723
10% 10.1% 12,360 12,522
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
