Huawei Technologies Co., Ltd Tecal CH121 ssj_ops@100% = 1,736,862
ssj_ops@100% per JVM = 173,686
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Sep 6, 2013
Hardware Availability: Sep-2013 Software Availability: Jan-2012 Publication: Oct 21, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,702,574
Calibration 2     1,738,347
Calibration 3     1,741,556
ssj_ops@calibrated=1,739,952
100% 99.8% 1,739,952 1,736,862
90% 89.9% 1,565,956 1,563,531
80% 80.1% 1,391,961 1,394,117
70% 70.0% 1,217,966 1,218,812
60% 60.1% 1,043,971 1,044,885
50% 49.9% 869,976 867,388
40% 40.0% 695,981 696,178
30% 29.9% 521,985 520,753
20% 20.0% 347,990 347,960
10% 10.0% 173,995 174,669
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 8
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Tecal CH121
Form Factor: Blade
CPU Name: Intel Xeon E5-2660 v2
CPU Characteristics: 10-Core, 2.2GHz, 25MB L3 Cache (Intel Turbo Boost Technology up to 3.0GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 20 cores, 2 chips, 10 cores/chip
Hardware Threads: 40 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 25 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM,Slots 1A1 1B1, 1C1,2A1,2B1,2C1 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 240GB SSD 2.5" SATA Huawei P/N 02310MMT
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1 (64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1875m -Xms1875m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000]
JVM Instances: 10
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: V063
Management Firmware Version: 3.35
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-31IEMCI502Q.001 172,488
WIN-31IEMCI502Q.002 174,822
WIN-31IEMCI502Q.003 171,445
WIN-31IEMCI502Q.004 174,378
WIN-31IEMCI502Q.005 172,910
WIN-31IEMCI502Q.006 173,007
WIN-31IEMCI502Q.007 175,755
WIN-31IEMCI502Q.008 173,395
WIN-31IEMCI502Q.009 173,890
WIN-31IEMCI502Q.010 174,772
ssj_ops@100% 1,736,862
ssj_ops@100% per JVM 173,686

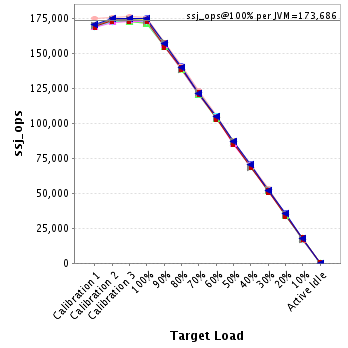

Graph of per-instance results
JVM 'WIN-31IEMCI502Q.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,358
Calibration 2     173,638
Calibration 3     172,919
ssj_ops@calibrated=173,278
100% 99.5% 173,278 172,488
90% 90.6% 155,951 157,012
80% 79.9% 138,623 138,532
70% 70.1% 121,295 121,515
60% 60.4% 103,967 104,693
50% 50.5% 86,639 87,448
40% 40.5% 69,311 70,168
30% 30.1% 51,984 52,220
20% 20.0% 34,656 34,739
10% 10.0% 17,328 17,316
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-31IEMCI502Q.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,904
Calibration 2     174,107
Calibration 3     174,534
ssj_ops@calibrated=174,321
100% 100.3% 174,321 174,822
90% 89.5% 156,889 155,997
80% 80.6% 139,457 140,578
70% 70.4% 122,024 122,665
60% 60.1% 104,592 104,685
50% 50.0% 87,160 87,241
40% 40.4% 69,728 70,500
30% 29.9% 52,296 52,154
20% 20.3% 34,864 35,324
10% 10.1% 17,432 17,611
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-31IEMCI502Q.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,710
Calibration 2     173,217
Calibration 3     172,723
ssj_ops@calibrated=172,970
100% 99.1% 172,970 171,445
90% 89.8% 155,673 155,359
80% 80.2% 138,376 138,691
70% 69.9% 121,079 120,967
60% 59.8% 103,782 103,435
50% 49.8% 86,485 86,194
40% 39.9% 69,188 68,986
30% 29.9% 51,891 51,783
20% 19.9% 34,594 34,375
10% 10.0% 17,297 17,371
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-31IEMCI502Q.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,977
Calibration 2     174,032
Calibration 3     174,474
ssj_ops@calibrated=174,253
100% 100.1% 174,253 174,378
90% 89.8% 156,827 156,547
80% 79.7% 139,402 138,818
70% 70.2% 121,977 122,404
60% 60.2% 104,552 104,906
50% 50.1% 87,126 87,235
40% 39.7% 69,701 69,220
30% 29.7% 52,276 51,671
20% 19.8% 34,851 34,573
10% 10.2% 17,425 17,761
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-31IEMCI502Q.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,408
Calibration 2     172,211
Calibration 3     172,955
ssj_ops@calibrated=172,583
100% 100.2% 172,583 172,910
90% 89.9% 155,325 155,238
80% 80.4% 138,067 138,836
70% 70.0% 120,808 120,788
60% 60.4% 103,550 104,198
50% 49.2% 86,292 84,951
40% 40.0% 69,033 69,112
30% 30.0% 51,775 51,694
20% 20.2% 34,517 34,943
10% 9.9% 17,258 17,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-31IEMCI502Q.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,714
Calibration 2     172,666
Calibration 3     174,368
ssj_ops@calibrated=173,517
100% 99.7% 173,517 173,007
90% 89.9% 156,165 156,025
80% 80.3% 138,814 139,337
70% 70.2% 121,462 121,772
60% 60.6% 104,110 105,082
50% 49.8% 86,759 86,369
40% 39.7% 69,407 68,934
30% 29.9% 52,055 51,811
20% 19.7% 34,703 34,234
10% 10.0% 17,352 17,275
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-31IEMCI502Q.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,368
Calibration 2     175,829
Calibration 3     176,641
ssj_ops@calibrated=176,235
100% 99.7% 176,235 175,755
90% 89.5% 158,611 157,644
80% 80.2% 140,988 141,302
70% 70.3% 123,364 123,891
60% 59.8% 105,741 105,398
50% 49.6% 88,117 87,388
40% 40.2% 70,494 70,814
30% 30.5% 52,870 53,729
20% 19.9% 35,247 35,084
10% 9.9% 17,623 17,467
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-31IEMCI502Q.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,301
Calibration 2     174,052
Calibration 3     174,486
ssj_ops@calibrated=174,269
100% 99.5% 174,269 173,395
90% 90.5% 156,842 157,704
80% 79.5% 139,415 138,629
70% 70.2% 121,988 122,279
60% 59.7% 104,562 104,073
50% 50.0% 87,135 87,153
40% 39.4% 69,708 68,700
30% 30.1% 52,281 52,460
20% 20.0% 34,854 34,908
10% 9.9% 17,427 17,329
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-31IEMCI502Q.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,156
Calibration 2     173,315
Calibration 3     173,359
ssj_ops@calibrated=173,337
100% 100.3% 173,337 173,890
90% 89.4% 156,004 154,878
80% 80.3% 138,670 139,148
70% 69.9% 121,336 121,168
60% 59.6% 104,002 103,271
50% 49.6% 86,669 85,982
40% 39.9% 69,335 69,220
30% 29.6% 52,001 51,389
20% 19.8% 34,667 34,287
10% 10.1% 17,334 17,454
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-31IEMCI502Q.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,678
Calibration 2     175,280
Calibration 3     175,097
ssj_ops@calibrated=175,188
100% 99.8% 175,188 174,772
90% 89.7% 157,670 157,128
80% 80.1% 140,151 140,247
70% 69.3% 122,632 121,362
60% 60.0% 105,113 105,144
50% 49.9% 87,594 87,426
40% 40.3% 70,075 70,525
30% 29.6% 52,557 51,841
20% 20.3% 35,038 35,494
10% 10.3% 17,519 18,000
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
