Acer Incorporated Altos T350 F2 ssj_ops@100% = 1,310,610
ssj_ops@100% per JVM = 163,826
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Jun 7, 2013
Hardware Availability: May-2013 Software Availability: Jun-2012 Publication: Jul 16, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,262,610
Calibration 2     1,310,239
Calibration 3     1,310,781
ssj_ops@calibrated=1,310,510
100% 100.0% 1,310,510 1,310,610
90% 90.0% 1,179,459 1,179,813
80% 79.7% 1,048,408 1,045,097
70% 70.1% 917,357 918,581
60% 60.2% 786,306 788,768
50% 49.8% 655,255 652,972
40% 39.8% 524,204 521,792
30% 30.1% 393,153 394,683
20% 20.0% 262,102 262,679
10% 10.0% 131,051 130,678
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Altos T350 F2
Form Factor: 2U
CPU Name: Intel Xeon E5-2650 2.0 GHz (Intel Turbo Boost Technology up to 2.80 GHz)
CPU Characteristics: 8 core, 2.0 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots A1, B1, C1, E1, F1 and G1 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Acer P/N SC.75017.002
Disk Drive: 1 x 240GB SSD 2.5" SATA, Acer P/N KN.2400N.002
Disk Controller: onboard SAS controller
# and type of Network Interface Cards (NICs) Installed: 1 x Quad-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: No
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1600m -Xms1600m -Xmn1200m -XlockReservation - Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [0F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: 01.06.0002
Management Firmware Version: 1.17.4151
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
T350F2.001 165,528
T350F2.002 164,104
T350F2.003 161,816
T350F2.004 165,344
T350F2.005 162,884
T350F2.006 162,837
T350F2.007 163,109
T350F2.008 164,987
ssj_ops@100% 1,310,610
ssj_ops@100% per JVM 163,826

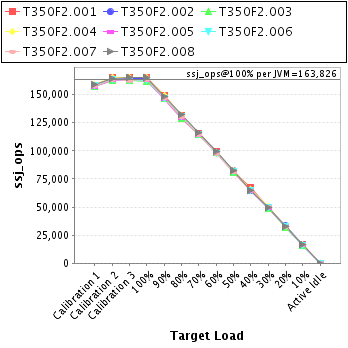

Graph of per-instance results
JVM 'T350F2.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,468
Calibration 2     164,976
Calibration 3     165,405
ssj_ops@calibrated=165,191
100% 100.2% 165,191 165,528
90% 90.3% 148,671 149,100
80% 79.8% 132,152 131,884
70% 70.1% 115,633 115,759
60% 60.1% 99,114 99,262
50% 49.4% 82,595 81,637
40% 40.6% 66,076 67,138
30% 30.0% 49,557 49,616
20% 20.0% 33,038 33,028
10% 9.9% 16,519 16,286
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'T350F2.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,039
Calibration 2     163,395
Calibration 3     164,240
ssj_ops@calibrated=163,818
100% 100.2% 163,818 164,104
90% 89.5% 147,436 146,612
80% 79.7% 131,054 130,589
70% 70.0% 114,672 114,738
60% 60.4% 98,291 98,892
50% 50.1% 81,909 82,109
40% 39.7% 65,527 65,073
30% 29.7% 49,145 48,634
20% 20.3% 32,764 33,190
10% 10.0% 16,382 16,391
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'T350F2.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,314
Calibration 2     162,744
Calibration 3     162,195
ssj_ops@calibrated=162,469
100% 99.6% 162,469 161,816
90% 90.2% 146,222 146,545
80% 79.5% 129,975 129,207
70% 70.3% 113,728 114,273
60% 60.4% 97,481 98,178
50% 49.8% 81,235 80,943
40% 40.3% 64,988 65,421
30% 29.8% 48,741 48,445
20% 19.7% 32,494 32,023
10% 9.9% 16,247 16,066
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'T350F2.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     158,649
Calibration 2     164,953
Calibration 3     165,339
ssj_ops@calibrated=165,146
100% 100.1% 165,146 165,344
90% 90.3% 148,631 149,072
80% 79.9% 132,117 131,927
70% 69.5% 115,602 114,703
60% 59.8% 99,088 98,751
50% 49.8% 82,573 82,269
40% 39.5% 66,058 65,250
30% 30.5% 49,544 50,449
20% 20.0% 33,029 32,981
10% 10.2% 16,515 16,771
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

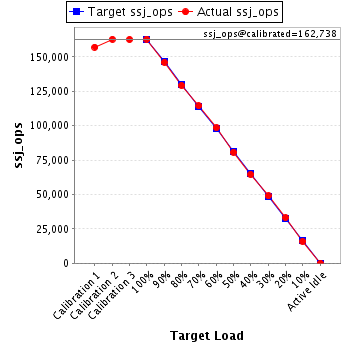

JVM 'T350F2.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,139
Calibration 2     162,793
Calibration 3     162,683
ssj_ops@calibrated=162,738
100% 100.1% 162,738 162,884
90% 89.8% 146,464 146,105
80% 79.4% 130,190 129,206
70% 70.3% 113,917 114,364
60% 60.5% 97,643 98,514
50% 49.7% 81,369 80,810
40% 39.6% 65,095 64,490
30% 30.0% 48,821 48,899
20% 20.3% 32,548 33,089
10% 9.8% 16,274 15,942
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'T350F2.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     158,444
Calibration 2     163,521
Calibration 3     162,857
ssj_ops@calibrated=163,189
100% 99.8% 163,189 162,837
90% 90.0% 146,870 146,950
80% 79.8% 130,551 130,295
70% 70.2% 114,232 114,623
60% 59.9% 97,913 97,803
50% 50.1% 81,594 81,805
40% 39.8% 65,276 64,941
30% 30.2% 48,957 49,207
20% 20.1% 32,638 32,760
10% 9.8% 16,319 16,054
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'T350F2.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,462
Calibration 2     163,346
Calibration 3     162,492
ssj_ops@calibrated=162,919
100% 100.1% 162,919 163,109
90% 90.1% 146,627 146,788
80% 79.6% 130,335 129,741
70% 70.1% 114,043 114,148
60% 59.9% 97,751 97,632
50% 49.8% 81,459 81,145
40% 39.6% 65,168 64,562
30% 30.7% 48,876 49,958
20% 20.0% 32,584 32,511
10% 10.2% 16,292 16,543
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'T350F2.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     159,095
Calibration 2     164,511
Calibration 3     165,571
ssj_ops@calibrated=165,041
100% 100.0% 165,041 164,987
90% 90.1% 148,537 148,641
80% 80.1% 132,033 132,247
70% 70.3% 115,528 115,972
60% 60.4% 99,024 99,736
50% 49.8% 82,520 82,253
40% 39.3% 66,016 64,917
30% 30.0% 49,512 49,473
20% 20.1% 33,008 33,097
10% 10.1% 16,504 16,625
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
