SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| Acer Incorporated Altos T350 F2 | SPECpower_ssj2008 = 5,146 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Jun 7, 2013 |
| Hardware Availability: | May-2013 | Software Availability: | Jun-2012 | Publication: | Jul 16, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

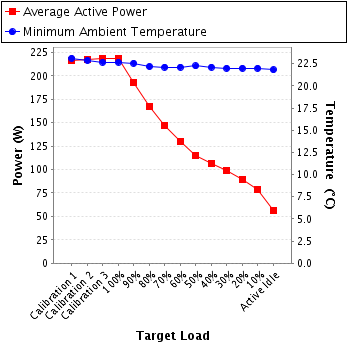

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 216 | 23.1 |
| Calibration 2 | 217 | 22.9 |
| Calibration 3 | 218 | 22.7 |
| 100% | 219 | 22.7 |
| 90% | 193 | 22.6 |
| 80% | 167 | 22.2 |
| 70% | 147 | 22.1 |
| 60% | 130 | 22.1 |
| 50% | 115 | 22.2 |
| 40% | 107 | 22.1 |
| 30% | 98.5 | 22.0 |
| 20% | 89.0 | 22.0 |
| 10% | 78.7 | 22.0 |
| Active Idle | 56.1 | 21.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 13-04-BAC-380-01 |
| Date of Calibration: | 9-May-2013 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.6.0-7f9b1b00-20130314 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT airflow intake |

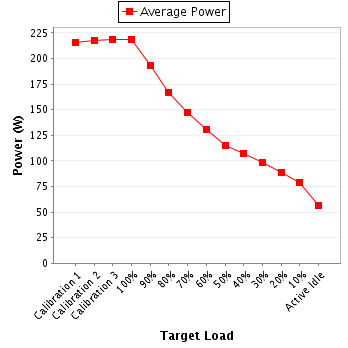

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 222 | 300.0 | 1.01 | 2.0 | 0.968 | 216 | 0.5% |
| Calibration 2 | 222 | 300.0 | 1.01 | 2.0 | 0.968 | 217 | 0.5% |
| Calibration 3 | 221 | 300.0 | 1.02 | 2.0 | 0.968 | 218 | 0.5% |
| 100% | 221 | 300.0 | 1.02 | 2.0 | 0.969 | 219 | 0.5% |
| 90% | 221 | 300.0 | 0.902 | 2.0 | 0.967 | 193 | 0.5% |
| 80% | 222 | 300.0 | 0.781 | 2.0 | 0.966 | 167 | 0.6% |
| 70% | 222 | 300.0 | 0.692 | 2.0 | 0.962 | 147 | 0.6% |
| 60% | 222 | 300.0 | 0.614 | 2.0 | 0.955 | 130 | 0.7% |
| 50% | 220 | 300.0 | 0.553 | 1.0 | 0.948 | 115 | 0.5% |
| 40% | 219 | 300.0 | 0.522 | 1.0 | 0.934 | 107 | 0.5% |
| 30% | 220 | 300.0 | 0.489 | 1.0 | 0.917 | 98.5 | 0.5% |
| 20% | 220 | 300.0 | 0.453 | 1.0 | 0.896 | 89.0 | 0.6% |
| 10% | 220 | 300.0 | 0.408 | 1.0 | 0.878 | 78.7 | 0.6% |
| Active Idle | 220 | 300.0 | 0.326 | 1.0 | 0.781 | 56.1 | 0.8% |
