Acer Incorporated Altos R360 F2 ssj_ops@100% = 1,297,515
ssj_ops@100% per JVM = 162,189
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Jan 1, 2005
Hardware Availability: May-2013 Software Availability: Jun-2012 Publication: Jul 16, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,259,305
Calibration 2     1,296,389
Calibration 3     1,299,053
ssj_ops@calibrated=1,297,721
100% 100.0% 1,297,721 1,297,515
90% 90.1% 1,167,949 1,169,391
80% 80.1% 1,038,177 1,039,352
70% 70.1% 908,405 910,168
60% 60.6% 778,633 785,842
50% 50.0% 648,861 649,412
40% 40.0% 519,089 518,669
30% 30.0% 389,316 389,890
20% 20.0% 259,544 259,391
10% 10.0% 129,772 129,791
Active Idle   0 0

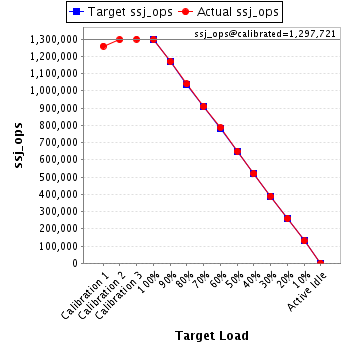

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: Acer Incorporated
Model: Altos R360 F2
Form Factor: 1U
CPU Name: Intel Xeon E5-2650 2.0 GHz (Intel Turbo Boost Technology up to 2.80 GHz)
CPU Characteristics: 8 core, 2.00 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E; slots A1, B1, C1, E1, F1 and G1 populated
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Acer P/N SC.46017.001
Disk Drive: 1 x 160GB SSD 2.5" SATA, Acer part KN.1600N.001
Disk Controller: onboard SCU controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I350 dual-port Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1600m -Xms1600m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: 01.08.0003
Management Firmware Version: 1.17.4207
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-35LQ2SRL8QI.001 164,516
WIN-35LQ2SRL8QI.002 161,340
WIN-35LQ2SRL8QI.003 160,328
WIN-35LQ2SRL8QI.004 164,451
WIN-35LQ2SRL8QI.005 162,331
WIN-35LQ2SRL8QI.006 160,277
WIN-35LQ2SRL8QI.007 161,907
WIN-35LQ2SRL8QI.008 162,367
ssj_ops@100% 1,297,515
ssj_ops@100% per JVM 162,189
Graph of per-instance results
JVM 'WIN-35LQ2SRL8QI.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     159,530
Calibration 2     163,967
Calibration 3     164,701
ssj_ops@calibrated=164,334
100% 100.1% 164,334 164,516
90% 90.2% 147,900 148,219
80% 79.2% 131,467 130,223
70% 70.4% 115,034 115,688
60% 60.7% 98,600 99,672
50% 50.0% 82,167 82,225
40% 39.8% 65,734 65,475
30% 30.1% 49,300 49,450
20% 20.0% 32,867 32,807
10% 10.2% 16,433 16,699
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-35LQ2SRL8QI.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,983
Calibration 2     161,004
Calibration 3     161,556
ssj_ops@calibrated=161,280
100% 100.0% 161,280 161,340
90% 89.8% 145,152 144,786
80% 80.2% 129,024 129,395
70% 70.4% 112,896 113,464
60% 61.0% 96,768 98,423
50% 50.1% 80,640 80,786
40% 39.8% 64,512 64,205
30% 29.8% 48,384 48,114
20% 20.1% 32,256 32,461
10% 10.1% 16,128 16,365
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-35LQ2SRL8QI.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,356
Calibration 2     159,656
Calibration 3     158,984
ssj_ops@calibrated=159,320
100% 100.6% 159,320 160,328
90% 90.3% 143,388 143,798
80% 80.5% 127,456 128,189
70% 70.1% 111,524 111,678
60% 60.5% 95,592 96,347
50% 50.2% 79,660 79,970
40% 40.4% 63,728 64,415
30% 30.0% 47,796 47,835
20% 19.6% 31,864 31,227
10% 10.1% 15,932 16,028
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

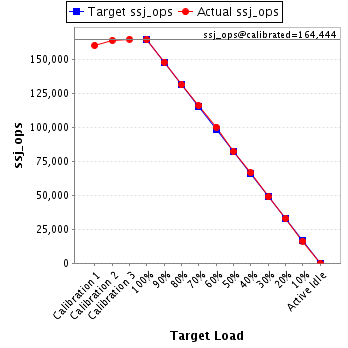

JVM 'WIN-35LQ2SRL8QI.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     160,335
Calibration 2     164,011
Calibration 3     164,878
ssj_ops@calibrated=164,444
100% 100.0% 164,444 164,451
90% 90.0% 148,000 147,970
80% 79.8% 131,555 131,224
70% 70.6% 115,111 116,021
60% 61.0% 98,667 100,231
50% 50.1% 82,222 82,383
40% 40.5% 65,778 66,521
30% 29.7% 49,333 48,824
20% 20.1% 32,889 33,034
10% 10.0% 16,444 16,370
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-35LQ2SRL8QI.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,825
Calibration 2     162,065
Calibration 3     162,478
ssj_ops@calibrated=162,272
100% 100.0% 162,272 162,331
90% 90.3% 146,044 146,482
80% 80.6% 129,817 130,818
70% 69.9% 113,590 113,355
60% 60.7% 97,363 98,422
50% 49.8% 81,136 80,846
40% 39.8% 64,909 64,541
30% 30.5% 48,681 49,528
20% 19.8% 32,454 32,135
10% 9.9% 16,227 16,129
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

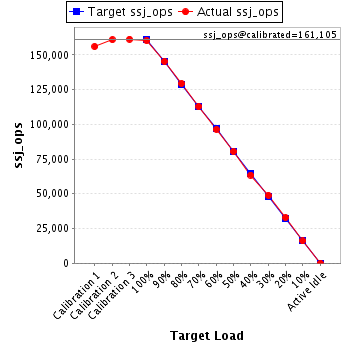

JVM 'WIN-35LQ2SRL8QI.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,024
Calibration 2     160,905
Calibration 3     161,306
ssj_ops@calibrated=161,105
100% 99.5% 161,105 160,277
90% 90.2% 144,995 145,299
80% 80.3% 128,884 129,369
70% 70.1% 112,774 112,872
60% 59.8% 96,663 96,418
50% 49.9% 80,553 80,425
40% 39.4% 64,442 63,507
30% 30.4% 48,332 48,971
20% 20.4% 32,221 32,886
10% 10.0% 16,111 16,037
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-35LQ2SRL8QI.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,748
Calibration 2     162,401
Calibration 3     162,702
ssj_ops@calibrated=162,552
100% 99.6% 162,552 161,907
90% 89.7% 146,296 145,752
80% 79.9% 130,041 129,800
70% 70.1% 113,786 114,028
60% 60.4% 97,531 98,258
50% 49.8% 81,276 81,007
40% 39.9% 65,021 64,783
30% 29.9% 48,765 48,643
20% 19.8% 32,510 32,244
10% 9.9% 16,255 16,026
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-35LQ2SRL8QI.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,505
Calibration 2     162,381
Calibration 3     162,449
ssj_ops@calibrated=162,415
100% 100.0% 162,415 162,367
90% 90.6% 146,173 147,084
80% 80.2% 129,932 130,333
70% 69.6% 113,690 113,062
60% 60.4% 97,449 98,070
50% 50.3% 81,207 81,770
40% 40.2% 64,966 65,221
30% 29.9% 48,724 48,527
20% 20.1% 32,483 32,598
10% 9.9% 16,241 16,137
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
