Dell Inc. PowerEdge C5220 (Intel Xeon E3-1265LV2) ssj_ops@100% = 5,258,070
ssj_ops@100% per Host = 438,172
ssj_ops@100% per JVM = 109,543
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 15, 2013
Hardware Availability: Jan-2013 Software Availability: Jun-2012 Publication: Apr 19, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,097,184
Calibration 2     5,267,377
Calibration 3     5,281,240
ssj_ops@calibrated=5,274,308
100% 99.7% 5,274,308 5,258,070
90% 90.0% 4,746,878 4,747,282
80% 80.1% 4,219,447 4,222,757
70% 70.0% 3,692,016 3,694,317
60% 60.0% 3,164,585 3,164,924
50% 49.8% 2,637,154 2,627,505
40% 40.1% 2,109,723 2,114,034
30% 30.0% 1,582,293 1,582,847
20% 20.0% 1,054,862 1,054,616
10% 10.0% 527,431 527,234
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
12 12 48 96 96.0 12 48
System Under Test
Shared Hardware
Shared Hardware
Enclosure: PowerEdge C5220
Form Factor: 3U
Power Supply Quantity and Rating (W): 2 x 1400
Power Supply Details: Dell P/N J8HPV
Network Switch: 24 Port 1Gb Ethernet Switch
Network Switch Details: 1000Mb
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network hardware not measured for power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 12
Comment: None
Hardware per Node
Hardware Vendor: Dell Inc.
Model: PowerEdge C5220 (Intel Xeon E3-1265LV2)
Form Factor: Blade
CPU Name: Intel Xeon E3-1265LV2
CPU Characteristics: Quad-Core, 2.50GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB 2Rx8 PCL3-12800E ECC CL11; slots 1,3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 100GB SSD, 2.5" SATA, Dell P/N DYW42
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82580 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver Mode in OS (see SUT Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled))
JVM Command-line Options: -Xms1228m -Xmx1228m -Xmn1024m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xthr:minimizeusercpu -Xgcthreads2
JVM Affinity: start /affinity [3,C,30,C0]
JVM Instances: 4
JVM Initial Heap (MB): 1228
JVM Maximum Heap (MB): 1228
JVM Address Bits: 64
Boot Firmware Version: 2.0.5
Management Firmware Version: 1.15
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
C5220-01 436,293
C5220-02 439,891
C5220-03 436,554
C5220-04 439,251
C5220-05 435,721
C5220-06 439,873
C5220-07 435,136
C5220-08 438,662
C5220-09 438,165
C5220-10 438,294
C5220-11 439,760
C5220-12 440,470
ssj_ops@100% 5,258,070
ssj_ops@100% per Host 438,172
ssj_ops@100% per JVM 109,543

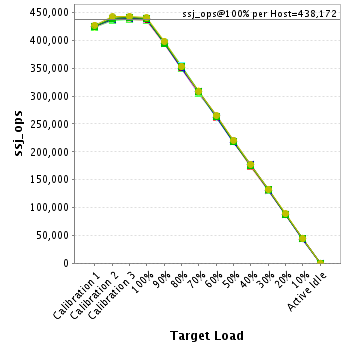

Graph of per-host results
Host 'C5220-01' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     424,390
Calibration 2     437,380
Calibration 3     438,776
ssj_ops@calibrated=438,078
100% 99.6% 438,078 436,293
90% 90.1% 394,270 394,904
80% 80.3% 350,463 351,683
70% 70.4% 306,655 308,411
60% 59.9% 262,847 262,416
50% 49.9% 219,039 218,441
40% 39.8% 175,231 174,425
30% 29.9% 131,423 130,797
20% 20.0% 87,616 87,686
10% 10.1% 43,808 44,221
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'C5220-02' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     425,618
Calibration 2     440,514
Calibration 3     441,943
ssj_ops@calibrated=441,229
100% 99.7% 441,229 439,891
90% 89.9% 397,106 396,670
80% 80.0% 352,983 353,183
70% 69.9% 308,860 308,231
60% 59.9% 264,737 264,184
50% 50.0% 220,614 220,449
40% 40.2% 176,492 177,502
30% 30.0% 132,369 132,497
20% 19.8% 88,246 87,276
10% 9.9% 44,123 43,604
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'C5220-03' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     423,273
Calibration 2     436,508
Calibration 3     437,998
ssj_ops@calibrated=437,253
100% 99.8% 437,253 436,554
90% 90.5% 393,528 395,758
80% 80.1% 349,802 350,126
70% 69.6% 306,077 304,366
60% 60.3% 262,352 263,448
50% 50.1% 218,627 218,866
40% 40.3% 174,901 176,373
30% 30.0% 131,176 131,372
20% 20.0% 87,451 87,478
10% 10.0% 43,725 43,800
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'C5220-04' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     423,634
Calibration 2     440,308
Calibration 3     441,243
ssj_ops@calibrated=440,775
100% 99.7% 440,775 439,251
90% 89.8% 396,698 395,961
80% 80.2% 352,620 353,551
70% 70.5% 308,543 310,598
60% 59.9% 264,465 264,160
50% 49.8% 220,388 219,576
40% 40.0% 176,310 176,433
30% 30.0% 132,233 132,200
20% 20.2% 88,155 88,947
10% 9.9% 44,078 43,795
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'C5220-05' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     424,103
Calibration 2     437,747
Calibration 3     439,527
ssj_ops@calibrated=438,637
100% 99.3% 438,637 435,721
90% 90.0% 394,773 394,985
80% 79.7% 350,909 349,656
70% 69.7% 307,046 305,566
60% 60.3% 263,182 264,600
50% 49.7% 219,318 218,204
40% 40.1% 175,455 175,933
30% 30.0% 131,591 131,399
20% 20.0% 87,727 87,675
10% 10.0% 43,864 43,738
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'C5220-06' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     425,658
Calibration 2     439,828
Calibration 3     440,553
ssj_ops@calibrated=440,191
100% 99.9% 440,191 439,873
90% 90.1% 396,172 396,569
80% 80.6% 352,152 354,937
70% 70.1% 308,133 308,733
60% 59.6% 264,114 262,483
50% 49.6% 220,095 218,374
40% 40.0% 176,076 175,876
30% 30.2% 132,057 132,784
20% 20.0% 88,038 88,215
10% 9.9% 44,019 43,599
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.

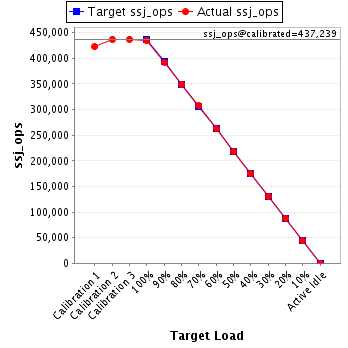

Host 'C5220-07' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     422,826
Calibration 2     436,989
Calibration 3     437,489
ssj_ops@calibrated=437,239
100% 99.5% 437,239 435,136
90% 89.8% 393,515 392,621
80% 79.9% 349,791 349,298
70% 70.3% 306,067 307,573
60% 60.1% 262,344 262,590
50% 49.9% 218,620 218,212
40% 39.9% 174,896 174,548
30% 30.0% 131,172 131,172
20% 20.1% 87,448 87,939
10% 10.0% 43,724 43,778
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'C5220-08' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     424,206
Calibration 2     439,028
Calibration 3     440,373
ssj_ops@calibrated=439,700
100% 99.8% 439,700 438,662
90% 89.9% 395,730 395,235
80% 80.0% 351,760 351,653
70% 70.2% 307,790 308,750
60% 60.5% 263,820 265,849
50% 49.7% 219,850 218,742
40% 40.1% 175,880 176,380
30% 29.8% 131,910 131,237
20% 19.9% 87,940 87,648
10% 10.1% 43,970 44,368
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'C5220-09' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     425,599
Calibration 2     439,970
Calibration 3     440,386
ssj_ops@calibrated=440,178
100% 99.5% 440,178 438,165
90% 90.0% 396,160 396,054
80% 79.9% 352,142 351,525
70% 69.9% 308,124 307,517
60% 59.8% 264,107 263,140
50% 49.7% 220,089 218,811
40% 40.0% 176,071 176,216
30% 30.1% 132,053 132,381
20% 20.0% 88,036 88,155
10% 10.1% 44,018 44,478
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'C5220-10' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     425,020
Calibration 2     438,007
Calibration 3     439,046
ssj_ops@calibrated=438,526
100% 99.9% 438,526 438,294
90% 90.1% 394,674 395,220
80% 79.9% 350,821 350,279
70% 70.2% 306,969 307,805
60% 59.8% 263,116 262,450
50% 49.6% 219,263 217,601
40% 40.4% 175,411 176,971
30% 30.0% 131,558 131,372
20% 20.1% 87,705 87,926
10% 9.9% 43,853 43,479
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'C5220-11' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     425,272
Calibration 2     439,014
Calibration 3     440,701
ssj_ops@calibrated=439,857
100% 100.0% 439,857 439,760
90% 89.8% 395,872 394,871
80% 80.3% 351,886 353,277
70% 70.0% 307,900 307,994
60% 60.1% 263,914 264,276
50% 49.9% 219,929 219,404
40% 40.1% 175,943 176,196
30% 30.2% 131,957 132,936
20% 19.8% 87,971 87,012
10% 9.9% 43,986 43,697
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'C5220-12' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     427,586
Calibration 2     442,085
Calibration 3     443,204
ssj_ops@calibrated=442,645
100% 99.5% 442,645 440,470
90% 90.0% 398,380 398,435
80% 79.9% 354,116 353,588
70% 69.8% 309,851 308,774
60% 59.9% 265,587 265,327
50% 49.9% 221,322 220,826
40% 40.0% 177,058 177,183
30% 30.0% 132,793 132,699
20% 20.0% 88,529 88,658
10% 10.1% 44,264 44,679
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
