Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.60 GHz) ssj_ops@100% = 1,422,283
ssj_ops@100% per JVM = 88,893
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jan 11, 2013
Hardware Availability: Dec-2012 Software Availability: Jun-2012 Publication: Feb 20, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,343,363
Calibration 2     1,428,188
Calibration 3     1,425,064
ssj_ops@calibrated=1,426,626
100% 99.7% 1,426,626 1,422,283
90% 89.9% 1,283,964 1,282,543
80% 80.1% 1,141,301 1,142,767
70% 70.0% 998,638 998,877
60% 60.0% 855,976 856,370
50% 50.0% 713,313 713,816
40% 39.8% 570,650 567,248
30% 30.1% 427,988 428,891
20% 20.0% 285,325 285,549
10% 10.0% 142,663 142,146
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.60 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-3, B1-3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N: DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Dual-Port Intel X520-k Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -XtlhPrefetch -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.4.9
Management Firmware Version: iDRAC7 1.30.30 (Build 39)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M620-05.001 89,349
M620-05.002 88,692
M620-05.003 89,236
M620-05.004 88,828
M620-05.005 88,071
M620-05.006 88,916
M620-05.007 89,102
M620-05.008 89,179
M620-05.009 88,629
M620-05.010 88,541
M620-05.011 88,808
M620-05.012 89,573
M620-05.013 88,685
M620-05.014 88,907
M620-05.015 88,358
M620-05.016 89,407
ssj_ops@100% 1,422,283
ssj_ops@100% per JVM 88,893

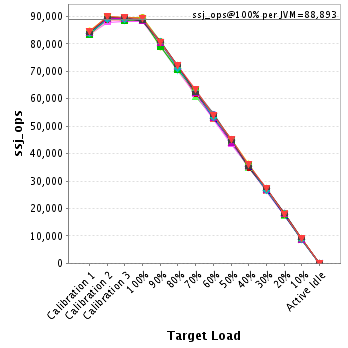

Graph of per-instance results
JVM 'M620-05.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,512
Calibration 2     89,226
Calibration 3     89,210
ssj_ops@calibrated=89,218
100% 100.1% 89,218 89,349
90% 90.2% 80,296 80,491
80% 80.6% 71,374 71,930
70% 70.3% 62,452 62,748
60% 59.1% 53,531 52,693
50% 50.6% 44,609 45,142
40% 40.1% 35,687 35,789
30% 29.9% 26,765 26,715
20% 20.2% 17,844 18,021
10% 10.1% 8,922 8,978
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-05.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,949
Calibration 2     89,174
Calibration 3     88,957
ssj_ops@calibrated=89,066
100% 99.6% 89,066 88,692
90% 90.1% 80,159 80,283
80% 80.5% 71,253 71,664
70% 70.8% 62,346 63,060
60% 60.9% 53,440 54,201
50% 49.6% 44,533 44,204
40% 39.7% 35,626 35,357
30% 29.9% 26,720 26,625
20% 20.2% 17,813 18,032
10% 10.1% 8,907 8,958
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-05.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,411
Calibration 2     89,225
Calibration 3     88,910
ssj_ops@calibrated=89,067
100% 100.2% 89,067 89,236
90% 89.9% 80,160 80,071
80% 80.9% 71,254 72,033
70% 68.2% 62,347 60,716
60% 59.9% 53,440 53,344
50% 49.4% 44,534 43,970
40% 39.3% 35,627 34,969
30% 30.5% 26,720 27,203
20% 19.5% 17,813 17,360
10% 10.1% 8,907 8,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-05.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,850
Calibration 2     89,657
Calibration 3     89,194
ssj_ops@calibrated=89,426
100% 99.3% 89,426 88,828
90% 88.2% 80,483 78,883
80% 80.7% 71,540 72,193
70% 69.7% 62,598 62,312
60% 59.6% 53,655 53,342
50% 50.5% 44,713 45,162
40% 40.7% 35,770 36,354
30% 29.8% 26,828 26,614
20% 19.7% 17,885 17,657
10% 10.0% 8,943 8,966
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-05.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,394
Calibration 2     87,769
Calibration 3     88,178
ssj_ops@calibrated=87,974
100% 100.1% 87,974 88,071
90% 90.4% 79,176 79,524
80% 79.7% 70,379 70,148
70% 69.9% 61,582 61,471
60% 59.8% 52,784 52,630
50% 49.2% 43,987 43,251
40% 40.1% 35,189 35,314
30% 29.8% 26,392 26,248
20% 19.6% 17,595 17,278
10% 10.1% 8,797 8,854
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-05.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,649
Calibration 2     89,090
Calibration 3     88,733
ssj_ops@calibrated=88,911
100% 100.0% 88,911 88,916
90% 88.8% 80,020 78,966
80% 79.2% 71,129 70,405
70% 70.7% 62,238 62,856
60% 60.3% 53,347 53,593
50% 50.0% 44,456 44,481
40% 39.1% 35,565 34,804
30% 30.2% 26,673 26,889
20% 20.1% 17,782 17,832
10% 9.7% 8,891 8,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-05.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,021
Calibration 2     88,719
Calibration 3     88,463
ssj_ops@calibrated=88,591
100% 100.6% 88,591 89,102
90% 89.5% 79,732 79,259
80% 79.6% 70,873 70,495
70% 70.4% 62,014 62,360
60% 60.3% 53,155 53,452
50% 50.8% 44,295 45,016
40% 39.7% 35,436 35,168
30% 29.5% 26,577 26,130
20% 20.2% 17,718 17,868
10% 10.0% 8,859 8,875
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-05.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,936
Calibration 2     89,361
Calibration 3     89,299
ssj_ops@calibrated=89,330
100% 99.8% 89,330 89,179
90% 90.2% 80,397 80,591
80% 79.4% 71,464 70,935
70% 70.4% 62,531 62,854
60% 61.0% 53,598 54,493
50% 50.2% 44,665 44,863
40% 39.4% 35,732 35,216
30% 30.6% 26,799 27,310
20% 20.0% 17,866 17,861
10% 9.8% 8,933 8,762
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-05.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,872
Calibration 2     89,109
Calibration 3     88,942
ssj_ops@calibrated=89,026
100% 99.6% 89,026 88,629
90% 90.8% 80,123 80,871
80% 80.4% 71,220 71,551
70% 69.4% 62,318 61,764
60% 60.5% 53,415 53,860
50% 50.2% 44,513 44,730
40% 39.1% 35,610 34,821
30% 30.2% 26,708 26,866
20% 20.3% 17,805 18,032
10% 10.2% 8,903 9,108
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-05.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,001
Calibration 2     89,345
Calibration 3     89,309
ssj_ops@calibrated=89,327
100% 99.1% 89,327 88,541
90% 90.0% 80,394 80,400
80% 80.8% 71,462 72,135
70% 70.0% 62,529 62,547
60% 59.3% 53,596 52,946
50% 50.0% 44,663 44,677
40% 39.6% 35,731 35,406
30% 29.6% 26,798 26,423
20% 19.6% 17,865 17,509
10% 9.8% 8,933 8,734
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-05.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,585
Calibration 2     89,729
Calibration 3     88,451
ssj_ops@calibrated=89,090
100% 99.7% 89,090 88,808
90% 88.9% 80,181 79,233
80% 79.3% 71,272 70,659
70% 70.9% 62,363 63,179
60% 60.1% 53,454 53,562
50% 49.4% 44,545 43,981
40% 40.3% 35,636 35,910
30% 30.0% 26,727 26,754
20% 20.0% 17,818 17,816
10% 9.8% 8,909 8,754
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-05.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,496
Calibration 2     89,977
Calibration 3     89,819
ssj_ops@calibrated=89,898
100% 99.6% 89,898 89,573
90% 90.0% 80,909 80,899
80% 79.9% 71,919 71,798
70% 69.8% 62,929 62,788
60% 59.8% 53,939 53,765
50% 50.3% 44,949 45,212
40% 39.5% 35,959 35,552
30% 30.0% 26,970 26,938
20% 20.3% 17,980 18,228
10% 10.0% 8,990 8,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-05.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,318
Calibration 2     89,238
Calibration 3     89,373
ssj_ops@calibrated=89,305
100% 99.3% 89,305 88,685
90% 90.3% 80,375 80,676
80% 80.2% 71,444 71,623
70% 69.6% 62,514 62,126
60% 59.7% 53,583 53,306
50% 49.4% 44,653 44,125
40% 40.1% 35,722 35,785
30% 30.2% 26,792 26,929
20% 20.2% 17,861 18,038
10% 9.9% 8,931 8,824
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-05.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,745
Calibration 2     88,989
Calibration 3     88,839
ssj_ops@calibrated=88,914
100% 100.0% 88,914 88,907
90% 90.8% 80,023 80,745
80% 79.8% 71,131 70,950
70% 70.4% 62,240 62,611
60% 59.8% 53,348 53,147
50% 50.7% 44,457 45,097
40% 39.9% 35,566 35,491
30% 29.8% 26,674 26,472
20% 20.2% 17,783 18,000
10% 9.7% 8,891 8,591
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-05.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,045
Calibration 2     89,494
Calibration 3     89,679
ssj_ops@calibrated=89,587
100% 98.6% 89,587 88,358
90% 90.5% 80,628 81,091
80% 80.6% 71,669 72,240
70% 69.5% 62,711 62,241
60% 60.4% 53,752 54,119
50% 49.9% 44,793 44,659
40% 39.2% 35,835 35,128
30% 30.5% 26,876 27,329
20% 20.2% 17,917 18,132
10% 10.3% 8,959 9,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-05.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,579
Calibration 2     90,088
Calibration 3     89,707
ssj_ops@calibrated=89,897
100% 99.5% 89,897 89,407
90% 89.6% 80,907 80,561
80% 80.1% 71,918 72,008
70% 70.4% 62,928 63,245
60% 60.0% 53,938 53,916
50% 50.3% 44,949 45,246
40% 40.2% 35,959 36,183
30% 30.5% 26,969 27,445
20% 19.9% 17,979 17,884
10% 9.9% 8,990 8,887
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
