Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.60 GHz) ssj_ops@100% = 1,427,921
ssj_ops@100% per JVM = 89,245
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jan 11, 2013
Hardware Availability: Dec-2012 Software Availability: Jun-2012 Publication: Feb 20, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,347,584
Calibration 2     1,429,058
Calibration 3     1,430,988
ssj_ops@calibrated=1,430,023
100% 99.9% 1,430,023 1,427,921
90% 90.2% 1,287,021 1,289,263
80% 80.0% 1,144,018 1,144,704
70% 69.9% 1,001,016 999,837
60% 60.1% 858,014 859,464
50% 50.1% 715,011 715,753
40% 40.0% 572,009 572,232
30% 30.0% 429,007 428,961
20% 20.0% 286,005 285,315
10% 10.0% 143,002 142,297
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.60 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-3, B1-3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N: DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Dual-Port Intel X520-k Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -XtlhPrefetch -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.4.9
Management Firmware Version: iDRAC7 1.30.30 (Build 39)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M620-02.001 88,623
M620-02.002 88,331
M620-02.003 89,847
M620-02.004 88,457
M620-02.005 89,791
M620-02.006 89,837
M620-02.007 88,798
M620-02.008 90,381
M620-02.009 88,942
M620-02.010 88,119
M620-02.011 89,684
M620-02.012 89,580
M620-02.013 88,253
M620-02.014 90,037
M620-02.015 89,084
M620-02.016 90,155
ssj_ops@100% 1,427,921
ssj_ops@100% per JVM 89,245

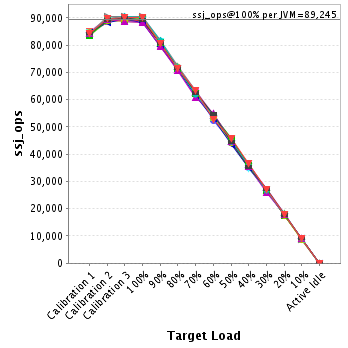

Graph of per-instance results
JVM 'M620-02.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,119
Calibration 2     88,803
Calibration 3     88,996
ssj_ops@calibrated=88,900
100% 99.7% 88,900 88,623
90% 89.4% 80,010 79,475
80% 80.5% 71,120 71,580
70% 71.5% 62,230 63,526
60% 59.9% 53,340 53,227
50% 50.0% 44,450 44,478
40% 40.0% 35,560 35,550
30% 29.9% 26,670 26,553
20% 20.2% 17,780 17,924
10% 10.1% 8,890 8,999
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-02.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,466
Calibration 2     88,532
Calibration 3     88,613
ssj_ops@calibrated=88,573
100% 99.7% 88,573 88,331
90% 91.1% 79,715 80,662
80% 80.1% 70,858 70,977
70% 70.9% 62,001 62,810
60% 59.1% 53,144 52,320
50% 50.1% 44,286 44,377
40% 39.7% 35,429 35,127
30% 30.0% 26,572 26,586
20% 20.0% 17,715 17,749
10% 10.1% 8,857 8,916
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-02.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,255
Calibration 2     89,441
Calibration 3     89,299
ssj_ops@calibrated=89,370
100% 100.5% 89,370 89,847
90% 90.1% 80,433 80,531
80% 80.6% 71,496 72,072
70% 69.5% 62,559 62,115
60% 59.9% 53,622 53,499
50% 49.9% 44,685 44,577
40% 40.1% 35,748 35,838
30% 29.9% 26,811 26,715
20% 20.5% 17,874 18,296
10% 9.7% 8,937 8,674
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

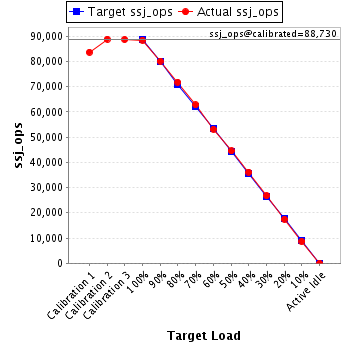

JVM 'M620-02.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,653
Calibration 2     88,795
Calibration 3     88,665
ssj_ops@calibrated=88,730
100% 99.7% 88,730 88,457
90% 90.3% 79,857 80,126
80% 80.9% 70,984 71,770
70% 70.7% 62,111 62,742
60% 59.9% 53,238 53,145
50% 50.1% 44,365 44,494
40% 40.7% 35,492 36,156
30% 30.1% 26,619 26,730
20% 19.7% 17,746 17,481
10% 9.8% 8,873 8,665
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-02.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,932
Calibration 2     89,809
Calibration 3     89,821
ssj_ops@calibrated=89,815
100% 100.0% 89,815 89,791
90% 90.7% 80,834 81,440
80% 80.1% 71,852 71,919
70% 70.7% 62,871 63,532
60% 60.6% 53,889 54,395
50% 49.4% 44,908 44,341
40% 40.3% 35,926 36,199
30% 30.5% 26,945 27,422
20% 20.3% 17,963 18,222
10% 9.7% 8,982 8,754
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-02.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,481
Calibration 2     89,646
Calibration 3     89,550
ssj_ops@calibrated=89,598
100% 100.3% 89,598 89,837
90% 90.7% 80,639 81,278
80% 79.4% 71,679 71,176
70% 68.7% 62,719 61,573
60% 59.8% 53,759 53,569
50% 50.0% 44,799 44,801
40% 38.9% 35,839 34,847
30% 30.4% 26,880 27,228
20% 20.0% 17,920 17,875
10% 10.0% 8,960 8,987
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-02.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,006
Calibration 2     89,253
Calibration 3     89,528
ssj_ops@calibrated=89,390
100% 99.3% 89,390 88,798
90% 88.7% 80,451 79,275
80% 80.0% 71,512 71,510
70% 70.1% 62,573 62,634
60% 60.0% 53,634 53,659
50% 50.6% 44,695 45,239
40% 40.4% 35,756 36,109
30% 29.7% 26,817 26,588
20% 19.9% 17,878 17,762
10% 9.8% 8,939 8,725
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-02.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,094
Calibration 2     90,469
Calibration 3     90,552
ssj_ops@calibrated=90,511
100% 99.9% 90,511 90,381
90% 90.4% 81,459 81,798
80% 80.1% 72,408 72,501
70% 69.9% 63,357 63,248
60% 60.1% 54,306 54,357
50% 49.9% 45,255 45,198
40% 40.4% 36,204 36,572
30% 29.5% 27,153 26,682
20% 20.0% 18,102 18,078
10% 9.8% 9,051 8,833
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-02.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,968
Calibration 2     89,695
Calibration 3     89,408
ssj_ops@calibrated=89,551
100% 99.3% 89,551 88,942
90% 90.1% 80,596 80,685
80% 79.9% 71,641 71,530
70% 70.0% 62,686 62,710
60% 60.6% 53,731 54,239
50% 50.7% 44,776 45,378
40% 40.2% 35,821 36,038
30% 30.2% 26,865 27,011
20% 19.7% 17,910 17,623
10% 10.0% 8,955 8,912
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-02.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,499
Calibration 2     88,345
Calibration 3     89,258
ssj_ops@calibrated=88,802
100% 99.2% 88,802 88,119
90% 89.7% 79,921 79,675
80% 79.9% 71,041 70,913
70% 69.3% 62,161 61,501
60% 59.7% 53,281 53,057
50% 49.0% 44,401 43,525
40% 39.7% 35,521 35,210
30% 30.1% 26,640 26,758
20% 19.8% 17,760 17,624
10% 10.0% 8,880 8,900
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-02.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,677
Calibration 2     89,210
Calibration 3     89,289
ssj_ops@calibrated=89,250
100% 100.5% 89,250 89,684
90% 90.8% 80,325 81,012
80% 80.0% 71,400 71,360
70% 69.9% 62,475 62,368
60% 60.7% 53,550 54,212
50% 51.2% 44,625 45,670
40% 40.1% 35,700 35,817
30% 29.9% 26,775 26,649
20% 19.6% 17,850 17,495
10% 10.3% 8,925 9,158
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-02.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,468
Calibration 2     89,077
Calibration 3     88,905
ssj_ops@calibrated=88,991
100% 100.7% 88,991 89,580
90% 91.0% 80,092 81,004
80% 80.6% 71,193 71,730
70% 70.1% 62,294 62,356
60% 60.0% 53,395 53,376
50% 49.6% 44,495 44,156
40% 40.1% 35,596 35,666
30% 30.4% 26,697 27,036
20% 19.8% 17,798 17,623
10% 9.8% 8,899 8,754
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-02.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,198
Calibration 2     89,296
Calibration 3     88,680
ssj_ops@calibrated=88,988
100% 99.2% 88,988 88,253
90% 89.4% 80,089 79,512
80% 79.6% 71,190 70,837
70% 68.4% 62,292 60,879
60% 61.7% 53,393 54,925
50% 50.2% 44,494 44,697
40% 40.1% 35,595 35,664
30% 29.3% 26,696 26,074
20% 20.1% 17,798 17,882
10% 10.0% 8,899 8,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-02.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,310
Calibration 2     89,834
Calibration 3     90,327
ssj_ops@calibrated=90,080
100% 100.0% 90,080 90,037
90% 90.6% 81,072 81,585
80% 79.6% 72,064 71,686
70% 68.7% 63,056 61,926
60% 60.0% 54,048 54,047
50% 49.8% 45,040 44,823
40% 39.7% 36,032 35,764
30% 29.6% 27,024 26,665
20% 19.9% 18,016 17,936
10% 10.0% 9,008 8,999
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-02.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,360
Calibration 2     89,060
Calibration 3     89,978
ssj_ops@calibrated=89,519
100% 99.5% 89,519 89,084
90% 90.1% 80,567 80,652
80% 80.0% 71,615 71,643
70% 69.8% 62,663 62,447
60% 61.0% 53,711 54,564
50% 49.6% 44,759 44,409
40% 39.3% 35,808 35,181
30% 30.5% 26,856 27,311
20% 19.9% 17,904 17,851
10% 10.2% 8,952 9,121
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-02.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,096
Calibration 2     89,794
Calibration 3     90,118
ssj_ops@calibrated=89,956
100% 100.2% 89,956 90,155
90% 89.5% 80,960 80,553
80% 79.5% 71,965 71,501
70% 70.6% 62,969 63,471
60% 58.8% 53,974 52,872
50% 50.7% 44,978 45,589
40% 40.6% 35,982 36,493
30% 30.0% 26,987 26,952
20% 19.9% 17,991 17,893
10% 10.0% 8,996 8,967
Active Idle   0 0

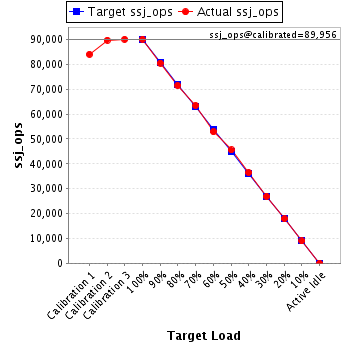

Graph of results
See the JVM Instance Performance Report for additional details.
