Dell Inc. PowerEdge C6105 (AMD Opteron 4376HE, 2.6 GHz) | ssj_ops@100% = 802,370 ssj_ops@100% per JVM = 200,592 |
||||
Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Multi Node |
Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Sep 14, 2012 |
Hardware Availability: | Feb-2013 | Software Availability: | Jun-2012 | Publication: | Jan 9, 2013 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 789,831 | ||
Calibration 2 | 807,192 | ||
Calibration 3 | 805,392 | ||
ssj_ops@calibrated=806,292 | |||
100% | 99.5% | 806,292 | 802,370 |
90% | 89.8% | 725,663 | 724,147 |
80% | 80.0% | 645,034 | 644,771 |
70% | 70.4% | 564,404 | 567,247 |
60% | 59.9% | 483,775 | 483,216 |
50% | 49.9% | 403,146 | 402,292 |
40% | 40.0% | 322,517 | 322,735 |
30% | 30.0% | 241,888 | 241,885 |
20% | 19.9% | 161,258 | 160,821 |
10% | 9.9% | 80,629 | 80,026 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 4 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Dell Inc. |
Model: | PowerEdge C6105 (AMD Opteron 4376HE, 2.6 GHz) |
Form Factor: | Blade |
CPU Name: | AMD Opteron 4376HE |
CPU Characteristics: | 8-Core, 2.6GHz, 8MB L3 Cache |
CPU Frequency (MHz): | 2600 |
CPU(s) Enabled: | 16 cores, 2 chips, 8 cores/chip |
Hardware Threads: | 16 (1 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 256 KB I + 128 KB D on chip per chip |
Secondary Cache: | 8 MB I+D on chip per chip, 2 MB shared / 2 cores |
Tertiary Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 16 |
# and size of DIMM: | 4 x 4096 MB |
Memory Details: | 4GB 2Rx8 PC3L-10600R ECC ; slots A0,A1,B0,B1 populated |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | N/A |
Disk Drive: | 1 x 500GB 2.5" SATA 7200RPM (Dell PN: TH2NR) |
Disk Controller: | Onboard SATA |
# and type of Network Interface Cards (NICs) Installed: | 1 x Intel(R) 82576 Gigabit Dual Port Network Connection |
NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Power Saver Plan in OS |
Operating System (OS): | Microsoft Windows 2008 Enterprise x64 Edition |
OS Version: | R2 SP1 (64-bit) |
Filesystem: | NTFS |
JVM Vendor: | IBM Corporation |
JVM Version: | IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled) |
JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu |
JVM Affinity: | start /affinity [F,F0,F00,F000] |
JVM Instances: | 4 |
JVM Initial Heap (MB): | 1875 |
JVM Maximum Heap (MB): | 1875 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 2.1.7 |
Management Firmware Version: | 1.28 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | IBM SDK Java Technology Edition Version 7.0 for Windows |

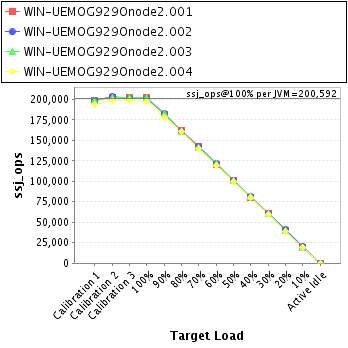

JVM Instance | ssj_ops@100% |
---|---|
WIN-UEMOG929Onode2.001 | 202,132 |
WIN-UEMOG929Onode2.002 | 200,696 |
WIN-UEMOG929Onode2.003 | 202,140 |
WIN-UEMOG929Onode2.004 | 197,402 |
ssj_ops@100% | 802,370 |
ssj_ops@100% per JVM | 200,592 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 198,242 | ||
Calibration 2 | 202,866 | ||
Calibration 3 | 202,641 | ||
ssj_ops@calibrated=202,753 | |||
100% | 99.7% | 202,753 | 202,132 |
90% | 89.4% | 182,478 | 181,199 |
80% | 79.9% | 162,203 | 162,100 |
70% | 70.5% | 141,927 | 143,017 |
60% | 59.7% | 121,652 | 120,999 |
50% | 49.5% | 101,377 | 100,463 |
40% | 39.6% | 81,101 | 80,314 |
30% | 30.0% | 60,826 | 60,837 |
20% | 19.8% | 40,551 | 40,108 |
10% | 9.7% | 20,275 | 19,691 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 198,930 | ||
Calibration 2 | 203,904 | ||
Calibration 3 | 201,129 | ||
ssj_ops@calibrated=202,517 | |||
100% | 99.1% | 202,517 | 200,696 |
90% | 90.0% | 182,265 | 182,199 |
80% | 79.4% | 162,013 | 160,804 |
70% | 70.5% | 141,762 | 142,715 |
60% | 60.0% | 121,510 | 121,429 |
50% | 49.9% | 101,258 | 101,081 |
40% | 40.1% | 81,007 | 81,139 |
30% | 30.0% | 60,755 | 60,658 |
20% | 20.3% | 40,503 | 41,072 |
10% | 10.3% | 20,252 | 20,800 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 198,721 | ||
Calibration 2 | 201,903 | ||
Calibration 3 | 202,760 | ||
ssj_ops@calibrated=202,331 | |||
100% | 99.9% | 202,331 | 202,140 |
90% | 90.1% | 182,098 | 182,289 |
80% | 79.7% | 161,865 | 161,290 |
70% | 70.1% | 141,632 | 141,816 |
60% | 60.1% | 121,399 | 121,515 |
50% | 50.2% | 101,166 | 101,473 |
40% | 40.3% | 80,932 | 81,481 |
30% | 30.1% | 60,699 | 60,804 |
20% | 20.0% | 40,466 | 40,479 |
10% | 9.7% | 20,233 | 19,720 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 193,939 | ||
Calibration 2 | 198,519 | ||
Calibration 3 | 198,862 | ||
ssj_ops@calibrated=198,691 | |||
100% | 99.4% | 198,691 | 197,402 |
90% | 89.8% | 178,822 | 178,461 |
80% | 80.8% | 158,953 | 160,577 |
70% | 70.3% | 139,083 | 139,700 |
60% | 60.0% | 119,214 | 119,273 |
50% | 50.0% | 99,345 | 99,276 |
40% | 40.2% | 79,476 | 79,802 |
30% | 30.0% | 59,607 | 59,586 |
20% | 19.7% | 39,738 | 39,162 |
10% | 10.0% | 19,869 | 19,814 |
Active Idle | 0 | 0 |
