Fujitsu PRIMERGY RX300 S7 (Intel Xeon E5-2660) SPECpower_ssj2008 = 5,406 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Sep 10, 2012
Hardware Availability: Sep-2012 Software Availability: Jun-2012 Publication: Oct 3, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 1,432,829 245 5,859
90% 89.9% 1,291,012 216 5,988
80% 80.1% 1,149,959 183 6,289
70% 69.9% 1,003,836 153 6,555
60% 60.1% 863,137 132 6,516
50% 50.1% 720,232 117 6,173
40% 39.9% 573,470 106 5,435
30% 30.1% 431,904 95.2 4,535
20% 20.0% 287,140 85.4 3,361
10% 10.0% 143,632 75.3 1,906
Active Idle 0 54.0 0
∑ssj_ops / ∑power = 5,406
Graph of results
System Under Test
Set: 'RX300 S7'
Set Identifier: RX300 S7
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX300 S7 (Intel Xeon E5-2660)
Form Factor: 2U
CPU Name: Intel Xeon E5-2660
CPU Characteristics: 8-Core, 2.20GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.0 GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4 GB 2Rx8 PC3L-12800E-11, ECC; slots 1A, 1B, 1C, 1D, 1E, 1F populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: Fujitsu Technology Solutions S26113-E575-E10
Disk Drive: 1 x 250GB, HDD, 2.5" SATA, S26361-F3708-E250
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I350 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /NODE [0,1] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: R1.13.0
Management Firmware Version: 6.53A
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64, ServerView Agent for Windows, ServerView RAID Manager
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX100 S3
CPU Description: Pentium D 950
Memory amount (GB): 2
Software
Operating System (OS): Windows Server 2003 Enterprise Edition + SP1
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) R27.6.0 (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 12084181
Date of Calibration: 06-Aug-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 245 22.2
90% 216 22.2
80% 183 22.2
70% 153 22.2
60% 132 22.2
50% 117 22.2
40% 106 22.2
30% 95.2 22.2
20% 85.4 22.2
10% 75.3 22.2
Active Idle 54.0 22.2
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 22.2 117
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,357,532
Calibration 2     1,436,434
Calibration 3     1,436,139
ssj_ops@calibrated=1,436,287
100% 99.8% 1,436,287 1,432,829
90% 89.9% 1,292,658 1,291,012
80% 80.1% 1,149,030 1,149,959
70% 69.9% 1,005,401 1,003,836
60% 60.1% 861,772 863,137
50% 50.1% 718,143 720,232
40% 39.9% 574,515 573,470
30% 30.1% 430,886 431,904
20% 20.0% 287,257 287,140
10% 10.0% 143,629 143,632
Active Idle   0 0

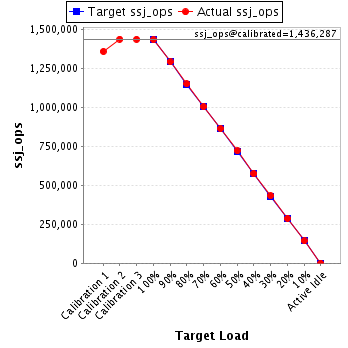

Graph of results
See the Host Performance Report for additional details.
