Huawei Technologies Co., Ltd XH320 V2 ssj_ops@100% = 1,314,439
ssj_ops@100% per JVM = 164,305
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Jun 4, 2012
Hardware Availability: May-2012 Software Availability: Dec-2011 Publication: Jun 28, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,318,159
Calibration 2     1,293,666
Calibration 3     1,317,229
ssj_ops@calibrated=1,305,447
100% 100.7% 1,305,447 1,314,439
90% 88.9% 1,174,902 1,160,074
80% 79.9% 1,044,358 1,042,606
70% 69.8% 913,813 910,681
60% 59.9% 783,268 781,762
50% 50.1% 652,724 654,308
40% 40.0% 522,179 521,774
30% 29.9% 391,634 390,656
20% 19.9% 261,089 260,032
10% 10.0% 130,545 131,083
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: XH320 V2
Form Factor: 1U
CPU Name: Intel Xeon E5-2470
CPU Characteristics: 8-Core, 2.30 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 3.1 GHz)
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -Xmx1600m -Xms1600m -Xmn1200m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [0x0F,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: V020
Management Firmware Version: 3.05
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-U1SPNC9HE0R.001 163,339
WIN-U1SPNC9HE0R.002 163,442
WIN-U1SPNC9HE0R.003 164,103
WIN-U1SPNC9HE0R.004 165,238
WIN-U1SPNC9HE0R.005 165,808
WIN-U1SPNC9HE0R.006 164,239
WIN-U1SPNC9HE0R.007 163,300
WIN-U1SPNC9HE0R.008 164,970
ssj_ops@100% 1,314,439
ssj_ops@100% per JVM 164,305

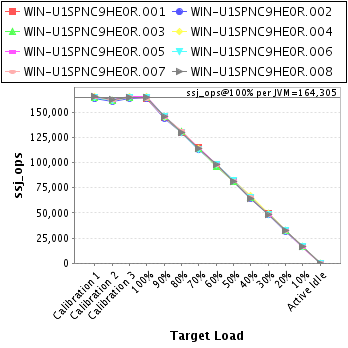

Graph of per-instance results
JVM 'WIN-U1SPNC9HE0R.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,498
Calibration 2     161,555
Calibration 3     164,119
ssj_ops@calibrated=162,837
100% 100.3% 162,837 163,339
90% 88.7% 146,553 144,413
80% 79.6% 130,269 129,583
70% 70.3% 113,986 114,400
60% 60.1% 97,702 97,941
50% 50.5% 81,418 82,237
40% 40.0% 65,135 65,090
30% 30.5% 48,851 49,633
20% 19.9% 32,567 32,448
10% 10.2% 16,284 16,682
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-U1SPNC9HE0R.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,169
Calibration 2     160,926
Calibration 3     163,802
ssj_ops@calibrated=162,364
100% 100.7% 162,364 163,442
90% 88.7% 146,128 143,988
80% 80.0% 129,891 129,931
70% 69.4% 113,655 112,757
60% 60.5% 97,418 98,189
50% 50.0% 81,182 81,165
40% 39.8% 64,946 64,584
30% 30.0% 48,709 48,669
20% 19.7% 32,473 31,985
10% 10.3% 16,236 16,711
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-U1SPNC9HE0R.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,924
Calibration 2     161,321
Calibration 3     164,570
ssj_ops@calibrated=162,945
100% 100.7% 162,945 164,103
90% 89.1% 146,651 145,233
80% 80.2% 130,356 130,666
70% 70.0% 114,062 114,035
60% 59.2% 97,767 96,455
50% 49.9% 81,473 81,363
40% 39.8% 65,178 64,854
30% 30.3% 48,884 49,317
20% 19.9% 32,589 32,487
10% 10.0% 16,295 16,324
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-U1SPNC9HE0R.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,056
Calibration 2     161,918
Calibration 3     165,750
ssj_ops@calibrated=163,834
100% 100.9% 163,834 165,238
90% 88.6% 147,450 145,164
80% 79.4% 131,067 130,064
70% 69.6% 114,684 113,952
60% 59.9% 98,300 98,154
50% 50.1% 81,917 82,140
40% 40.8% 65,534 66,867
30% 30.2% 49,150 49,540
20% 19.9% 32,767 32,662
10% 9.9% 16,383 16,177
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-U1SPNC9HE0R.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,007
Calibration 2     162,182
Calibration 3     165,574
ssj_ops@calibrated=163,878
100% 101.2% 163,878 165,808
90% 88.8% 147,490 145,515
80% 79.9% 131,102 130,985
70% 70.0% 114,714 114,789
60% 59.9% 98,327 98,232
50% 50.1% 81,939 82,038
40% 40.0% 65,551 65,553
30% 29.5% 49,163 48,354
20% 20.1% 32,776 32,886
10% 9.7% 16,388 15,945
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-U1SPNC9HE0R.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,839
Calibration 2     161,796
Calibration 3     164,136
ssj_ops@calibrated=162,966
100% 100.8% 162,966 164,239
90% 89.3% 146,669 145,537
80% 79.8% 130,373 129,971
70% 69.3% 114,076 112,932
60% 60.1% 97,780 97,892
50% 50.5% 81,483 82,316
40% 39.9% 65,186 65,033
30% 30.0% 48,890 48,843
20% 19.9% 32,593 32,444
10% 10.0% 16,297 16,332
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-U1SPNC9HE0R.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,071
Calibration 2     161,810
Calibration 3     164,695
ssj_ops@calibrated=163,253
100% 100.0% 163,253 163,300
90% 88.8% 146,927 144,941
80% 80.6% 130,602 131,640
70% 69.8% 114,277 113,913
60% 59.5% 97,952 97,177
50% 49.9% 81,626 81,476
40% 40.1% 65,301 65,534
30% 29.6% 48,976 48,370
20% 19.9% 32,651 32,476
10% 10.2% 16,325 16,571
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-U1SPNC9HE0R.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,594
Calibration 2     162,158
Calibration 3     164,584
ssj_ops@calibrated=163,371
100% 101.0% 163,371 164,970
90% 88.9% 147,034 145,283
80% 79.4% 130,697 129,766
70% 69.7% 114,360 113,902
60% 59.8% 98,023 97,722
50% 49.9% 81,685 81,574
40% 39.3% 65,348 64,257
30% 29.3% 49,011 47,932
20% 20.0% 32,674 32,644
10% 10.0% 16,337 16,341
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
