SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Acer Incorporated Acer AR585 F1 | SPECpower_ssj2008 = 2,803 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Apr 30, 2012 |
| Hardware Availability: | Jan-2012 | Software Availability: | Dec-2010 | Publication: | Jun 5, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

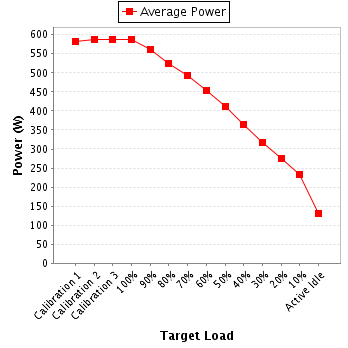

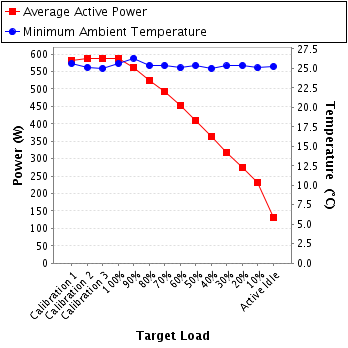

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 583 | 25.6 |
| Calibration 2 | 587 | 25.1 |
| Calibration 3 | 588 | 25.0 |
| 100% | 588 | 25.6 |
| 90% | 561 | 26.3 |
| 80% | 525 | 25.4 |
| 70% | 493 | 25.4 |
| 60% | 453 | 25.1 |
| 50% | 410 | 25.4 |
| 40% | 364 | 25.0 |
| 30% | 317 | 25.3 |
| 20% | 274 | 25.4 |
| 10% | 233 | 25.1 |
| Active Idle | 130 | 25.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 11-05-BAC-205-07 |
| Date of Calibration: | 16-May-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 215 | 300.0 | 2.81 | 5.0 | 0.967 | 583 | 0.4% |
| Calibration 2 | 215 | 300.0 | 2.83 | 5.0 | 0.967 | 587 | 0.4% |
| Calibration 3 | 215 | 300.0 | 2.83 | 5.0 | 0.967 | 588 | 0.4% |
| 100% | 215 | 300.0 | 2.83 | 5.0 | 0.967 | 588 | 0.4% |
| 90% | 215 | 300.0 | 2.70 | 5.0 | 0.966 | 561 | 0.4% |
| 80% | 215 | 300.0 | 2.53 | 5.0 | 0.964 | 525 | 0.4% |
| 70% | 215 | 300.0 | 2.38 | 5.0 | 0.962 | 493 | 0.5% |
| 60% | 215 | 300.0 | 2.20 | 5.0 | 0.959 | 453 | 0.5% |
| 50% | 211 | 300.0 | 2.03 | 2.0 | 0.958 | 410 | 0.3% |
| 40% | 211 | 300.0 | 1.81 | 2.0 | 0.952 | 364 | 0.3% |
| 30% | 211 | 300.0 | 1.60 | 2.0 | 0.945 | 317 | 0.4% |
| 20% | 210 | 300.0 | 1.39 | 2.0 | 0.937 | 274 | 0.4% |
| 10% | 210 | 300.0 | 1.20 | 1.0 | 0.925 | 233 | 0.4% |
| Active Idle | 210 | 300.0 | 0.729 | 1.0 | 0.850 | 130 | 0.5% |
