Huawei Technologies Co., Ltd XH621 V2 ssj_ops@100% = 945,982
ssj_ops@100% per JVM = 118,248
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Mar 6, 2012
Hardware Availability: Mar-2012 Software Availability: Mar-2012 Publication: Mar 28, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     938,659
Calibration 2     945,812
Calibration 3     948,396
ssj_ops@calibrated=947,104
100% 99.9% 947,104 945,982
90% 90.2% 852,394 854,413
80% 79.9% 757,683 757,187
70% 70.1% 662,973 663,665
60% 60.1% 568,262 568,962
50% 49.8% 473,552 471,227
40% 40.1% 378,842 379,920
30% 29.7% 284,131 281,085
20% 19.9% 189,421 188,722
10% 9.9% 94,710 94,190
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: XH621 V2
Form Factor: 1U
CPU Name: Intel Xeon E5-2650L
CPU Characteristics: 8-Core, 1.80 GHz, 20 MB L3 Cache
CPU Frequency (MHz): 1800
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 8 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver enabled in OS
Operating System (OS): Windows Server 2008 R2, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1706m -Xms2048m -Xmx2048m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [f,f0,f00,f000,f0000,f00000,f000000,f0000000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: V009
Management Firmware Version: 3.00
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: IBM Websphere application server V7.0 for Windows on X86-64bit
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-LKEBNTJJ3AF.001 119,211
WIN-LKEBNTJJ3AF.002 119,829
WIN-LKEBNTJJ3AF.003 119,549
WIN-LKEBNTJJ3AF.004 119,161
WIN-LKEBNTJJ3AF.005 115,806
WIN-LKEBNTJJ3AF.006 118,940
WIN-LKEBNTJJ3AF.007 119,348
WIN-LKEBNTJJ3AF.008 114,137
ssj_ops@100% 945,982
ssj_ops@100% per JVM 118,248

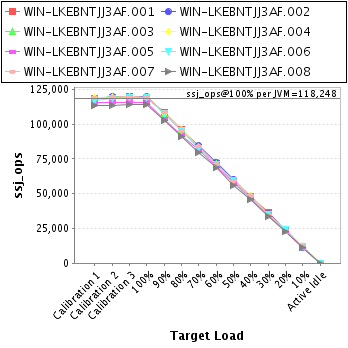

Graph of per-instance results
JVM 'WIN-LKEBNTJJ3AF.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,740
Calibration 2     119,270
Calibration 3     119,608
ssj_ops@calibrated=119,439
100% 99.8% 119,439 119,211
90% 90.6% 107,495 108,245
80% 80.4% 95,551 96,040
70% 70.0% 83,607 83,583
60% 60.3% 71,664 71,983
50% 49.4% 59,720 59,055
40% 40.1% 47,776 47,954
30% 30.5% 35,832 36,381
20% 20.0% 23,888 23,890
10% 9.9% 11,944 11,871
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LKEBNTJJ3AF.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,046
Calibration 2     119,977
Calibration 3     120,141
ssj_ops@calibrated=120,059
100% 99.8% 120,059 119,829
90% 89.8% 108,053 107,795
80% 79.2% 96,047 95,130
70% 70.3% 84,041 84,424
60% 60.6% 72,036 72,790
50% 50.4% 60,030 60,553
40% 39.7% 48,024 47,671
30% 29.8% 36,018 35,718
20% 20.1% 24,012 24,135
10% 9.7% 12,006 11,625
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LKEBNTJJ3AF.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,495
Calibration 2     119,739
Calibration 3     119,446
ssj_ops@calibrated=119,593
100% 100.0% 119,593 119,549
90% 89.9% 107,633 107,565
80% 80.3% 95,674 96,066
70% 70.4% 83,715 84,207
60% 60.1% 71,756 71,823
50% 49.3% 59,796 58,940
40% 39.7% 47,837 47,502
30% 29.6% 35,878 35,350
20% 19.7% 23,919 23,545
10% 9.9% 11,959 11,787
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LKEBNTJJ3AF.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,889
Calibration 2     119,326
Calibration 3     119,897
ssj_ops@calibrated=119,612
100% 99.6% 119,612 119,161
90% 90.3% 107,650 108,013
80% 80.2% 95,689 95,911
70% 69.6% 83,728 83,243
60% 59.6% 71,767 71,348
50% 49.9% 59,806 59,691
40% 40.5% 47,845 48,426
30% 29.5% 35,883 35,256
20% 20.1% 23,922 24,046
10% 10.0% 11,961 11,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LKEBNTJJ3AF.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,557
Calibration 2     115,869
Calibration 3     115,932
ssj_ops@calibrated=115,900
100% 99.9% 115,900 115,806
90% 89.5% 104,310 103,712
80% 79.5% 92,720 92,158
70% 70.5% 81,130 81,731
60% 60.3% 69,540 69,880
50% 50.1% 57,950 58,064
40% 40.0% 46,360 46,367
30% 29.7% 34,770 34,389
20% 19.9% 23,180 23,111
10% 9.8% 11,590 11,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LKEBNTJJ3AF.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     117,088
Calibration 2     118,656
Calibration 3     119,041
ssj_ops@calibrated=118,848
100% 100.1% 118,848 118,940
90% 90.9% 106,964 107,993
80% 80.2% 95,079 95,300
70% 69.3% 83,194 82,343
60% 60.0% 71,309 71,301
50% 50.1% 59,424 59,488
40% 39.6% 47,539 47,060
30% 29.8% 35,655 35,362
20% 20.2% 23,770 24,016
10% 10.0% 11,885 11,896
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LKEBNTJJ3AF.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     118,499
Calibration 2     119,226
Calibration 3     119,918
ssj_ops@calibrated=119,572
100% 99.8% 119,572 119,348
90% 90.7% 107,615 108,433
80% 79.7% 95,658 95,296
70% 70.4% 83,700 84,204
60% 59.6% 71,743 71,295
50% 49.5% 59,786 59,225
40% 40.9% 47,829 48,902
30% 29.2% 35,872 34,860
20% 19.5% 23,914 23,263
10% 10.2% 11,957 12,217
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-LKEBNTJJ3AF.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     113,346
Calibration 2     113,749
Calibration 3     114,413
ssj_ops@calibrated=114,081
100% 100.0% 114,081 114,137
90% 90.0% 102,673 102,657
80% 80.0% 91,265 91,286
70% 70.1% 79,857 79,930
60% 60.1% 68,448 68,542
50% 49.3% 57,040 56,212
40% 40.4% 45,632 46,038
30% 29.6% 34,224 33,769
20% 19.9% 22,816 22,717
10% 10.0% 11,408 11,446
Active Idle   0 0

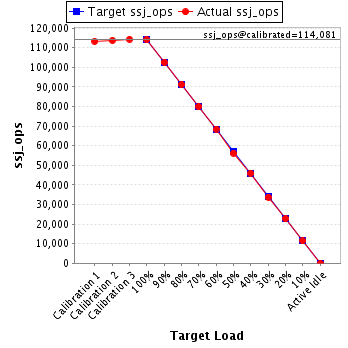

Graph of results
See the JVM Instance Performance Report for additional details.
