IBM Corporation IBM System x iDataPlex dx360 M4 ssj_ops@100% = 1,211,349
ssj_ops@100% per JVM = 151,419
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Multi Node
Tested By: IBM Corporation Test Location: Taipei, Taiwan Test Date: Mar 4, 2012
Hardware Availability: Apr-2012 Software Availability: Jun-2012 Publication: Mar 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,164,625
Calibration 2     1,216,901
Calibration 3     1,217,427
ssj_ops@calibrated=1,217,164
100% 99.5% 1,217,164 1,211,349
90% 90.1% 1,095,448 1,097,022
80% 80.3% 973,731 977,762
70% 70.0% 852,015 851,862
60% 60.0% 730,298 729,943
50% 49.9% 608,582 607,357
40% 39.8% 486,866 484,466
30% 30.2% 365,149 367,541
20% 20.1% 243,433 244,734
10% 10.0% 121,716 122,033
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x iDataPlex dx360 M4
Form Factor: 2U
CPU Name: Intel Xeon E5-2660
CPU Characteristics: Eight-Core, 2.2GHz, 20MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4098 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC CL9; slots 1, 3, 8, 9 11 and 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 200 GB SATA SSD, IBM P/N: 43W7742
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver plan in OS
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows 7 amd64-64 20120204_101769 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: TDE111G
Management Firmware Version: 1AOO25K
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-KDRK08S3VO1.001 150,987
WIN-KDRK08S3VO1.002 153,864
WIN-KDRK08S3VO1.003 151,259
WIN-KDRK08S3VO1.004 151,645
WIN-KDRK08S3VO1.005 153,142
WIN-KDRK08S3VO1.006 148,897
WIN-KDRK08S3VO1.007 150,355
WIN-KDRK08S3VO1.008 151,201
ssj_ops@100% 1,211,349
ssj_ops@100% per JVM 151,419

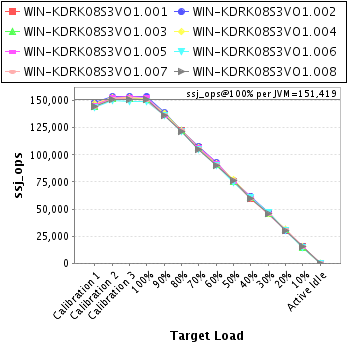

Graph of per-instance results
JVM 'WIN-KDRK08S3VO1.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     146,265
Calibration 2     151,660
Calibration 3     151,702
ssj_ops@calibrated=151,681
100% 99.5% 151,681 150,987
90% 90.3% 136,513 136,954
80% 80.6% 121,345 122,306
70% 70.6% 106,177 107,125
60% 60.0% 91,008 91,052
50% 49.9% 75,840 75,682
40% 39.5% 60,672 59,858
30% 30.6% 45,504 46,389
20% 20.0% 30,336 30,380
10% 10.0% 15,168 15,141
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KDRK08S3VO1.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,081
Calibration 2     153,790
Calibration 3     154,050
ssj_ops@calibrated=153,920
100% 100.0% 153,920 153,864
90% 90.0% 138,528 138,565
80% 79.6% 123,136 122,557
70% 70.1% 107,744 107,890
60% 60.4% 92,352 92,963
50% 49.6% 76,960 76,416
40% 40.3% 61,568 61,979
30% 30.1% 46,176 46,377
20% 19.9% 30,784 30,621
10% 10.3% 15,392 15,878
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KDRK08S3VO1.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,897
Calibration 2     151,739
Calibration 3     151,571
ssj_ops@calibrated=151,655
100% 99.7% 151,655 151,259
90% 91.0% 136,489 137,982
80% 80.6% 121,324 122,209
70% 70.3% 106,158 106,648
60% 60.0% 90,993 90,917
50% 49.8% 75,827 75,571
40% 40.0% 60,662 60,686
30% 30.4% 45,496 46,058
20% 20.3% 30,331 30,799
10% 9.8% 15,165 14,898
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KDRK08S3VO1.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     146,913
Calibration 2     153,058
Calibration 3     153,250
ssj_ops@calibrated=153,154
100% 99.0% 153,154 151,645
90% 90.3% 137,838 138,352
80% 79.7% 122,523 122,140
70% 69.8% 107,208 106,972
60% 59.8% 91,892 91,652
50% 50.4% 76,577 77,253
40% 39.6% 61,261 60,678
30% 30.0% 45,946 45,989
20% 20.0% 30,631 30,704
10% 10.1% 15,315 15,520
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KDRK08S3VO1.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,774
Calibration 2     152,935
Calibration 3     153,699
ssj_ops@calibrated=153,317
100% 99.9% 153,317 153,142
90% 88.9% 137,985 136,252
80% 80.0% 122,654 122,724
70% 69.9% 107,322 107,172
60% 60.3% 91,990 92,510
50% 49.2% 76,658 75,355
40% 39.9% 61,327 61,198
30% 29.6% 45,995 45,333
20% 20.5% 30,663 31,482
10% 10.1% 15,332 15,419
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KDRK08S3VO1.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,416
Calibration 2     150,484
Calibration 3     149,573
ssj_ops@calibrated=150,029
100% 99.2% 150,029 148,897
90% 90.6% 135,026 135,954
80% 81.3% 120,023 121,927
70% 70.2% 105,020 105,301
60% 60.3% 90,017 90,413
50% 49.8% 75,014 74,672
40% 40.3% 60,011 60,457
30% 31.0% 45,009 46,579
20% 20.0% 30,006 29,959
10% 9.7% 15,003 14,513
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KDRK08S3VO1.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,360
Calibration 2     151,911
Calibration 3     152,129
ssj_ops@calibrated=152,020
100% 98.9% 152,020 150,355
90% 89.7% 136,818 136,343
80% 80.6% 121,616 122,547
70% 69.4% 106,414 105,486
60% 59.4% 91,212 90,289
50% 50.3% 76,010 76,488
40% 39.2% 60,808 59,650
30% 29.8% 45,606 45,321
20% 20.3% 30,404 30,929
10% 10.1% 15,202 15,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KDRK08S3VO1.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,920
Calibration 2     151,324
Calibration 3     151,455
ssj_ops@calibrated=151,389
100% 99.9% 151,389 151,201
90% 90.2% 136,250 136,621
80% 80.2% 121,111 121,353
70% 69.5% 105,972 105,268
60% 59.5% 90,833 90,147
50% 50.1% 75,695 75,921
40% 39.6% 60,556 59,959
30% 30.1% 45,417 45,495
20% 19.7% 30,278 29,861
10% 10.1% 15,139 15,276
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
