IBM Corporation IBM System x iDataPlex dx360 M4 SPECpower_ssj2008 = 5,043 overall ssj_ops/watt
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Multi Node
Tested By: IBM Corporation Test Location: Taipei, Taiwan Test Date: Mar 4, 2012
Hardware Availability: Apr-2012 Software Availability: Jun-2012 Publication: Mar 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 378 22.2
Calibration 2 378 22.1
Calibration 3 378 22.1
100% 379 22.1
90% 359 22.1
80% 336 22.1
70% 307 22.2
60% 269 22.2
50% 231 22.2
40% 200 22.2
30% 176 22.3
20% 158 22.2
10% 140 22.2
Active Idle 96.5 22.4

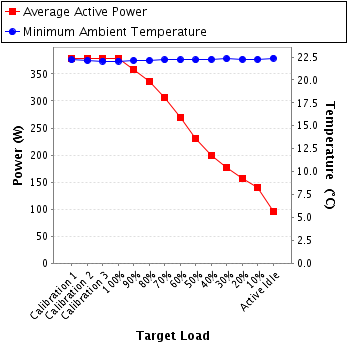

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA, Inc.
Model: WT210
Serial Number: 91JB14535
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 11-05-BAC-032-03
Date of Calibration: 5-May-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 204 300.0 1.90 2.0 0.979 378 0.3%
Calibration 2 204 300.0 1.90 2.0 0.979 378 0.3%
Calibration 3 204 300.0 1.90 2.0 0.979 378 0.3%
100% 204 300.0 1.90 2.0 0.979 379 0.3%
90% 204 300.0 1.80 2.0 0.977 359 0.3%
80% 204 300.0 1.69 2.0 0.974 336 0.3%
70% 204 300.0 1.55 2.0 0.971 307 0.3%
60% 204 300.0 1.37 2.0 0.965 269 0.4%
50% 204 300.0 1.19 2.0 0.955 231 0.4%
40% 204 300.0 1.04 2.0 0.942 200 0.5%
30% 204 300.0 0.930 1.0 0.928 176 0.4%
20% 204 300.0 0.845 1.0 0.914 158 0.4%
10% 204 300.0 0.767 1.0 0.897 140 0.4%
Active Idle 205 300.0 0.579 1.0 0.815 96.5 0.6%

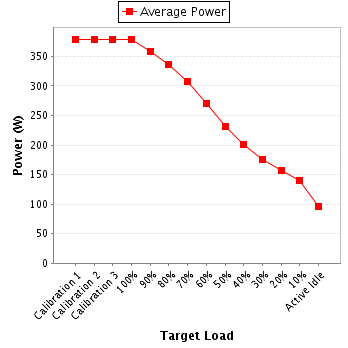

Power details for pwr1
