SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Acer Incorporated Acer AR585 F1 | SPECpower_ssj2008 = 2,552 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Dec 15, 2011 |
| Hardware Availability: | Jan-2012 | Software Availability: | Dec-2010 | Publication: | Mar 14, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

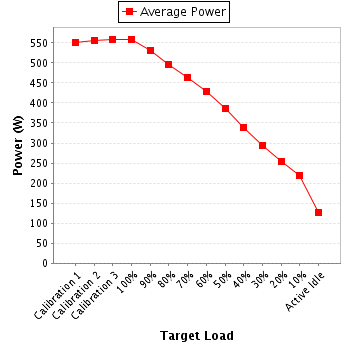

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 550 | 24.8 |
| Calibration 2 | 557 | 24.4 |
| Calibration 3 | 559 | 24.7 |
| 100% | 559 | 25.2 |
| 90% | 530 | 25.4 |
| 80% | 497 | 24.9 |
| 70% | 463 | 24.8 |
| 60% | 428 | 24.9 |
| 50% | 386 | 25.3 |
| 40% | 339 | 25.2 |
| 30% | 293 | 24.6 |
| 20% | 254 | 24.6 |
| 10% | 220 | 24.6 |
| Active Idle | 127 | 24.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 11-05-BAC-205-07 |
| Date of Calibration: | 16-May-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 217 | 300.0 | 2.62 | 5.0 | 0.965 | 550 | 0.4% |
| Calibration 2 | 217 | 300.0 | 2.66 | 5.0 | 0.965 | 557 | 0.4% |
| Calibration 3 | 217 | 300.0 | 2.67 | 5.0 | 0.965 | 559 | 0.4% |
| 100% | 217 | 300.0 | 2.66 | 5.0 | 0.965 | 559 | 0.4% |
| 90% | 217 | 300.0 | 2.53 | 5.0 | 0.964 | 530 | 0.4% |
| 80% | 217 | 300.0 | 2.38 | 5.0 | 0.962 | 497 | 0.5% |
| 70% | 218 | 300.0 | 2.22 | 5.0 | 0.959 | 463 | 0.5% |
| 60% | 218 | 300.0 | 2.06 | 5.0 | 0.955 | 428 | 0.5% |
| 50% | 218 | 300.0 | 1.86 | 5.0 | 0.950 | 386 | 0.6% |
| 40% | 218 | 300.0 | 1.65 | 2.0 | 0.943 | 339 | 0.3% |
| 30% | 218 | 300.0 | 1.44 | 2.0 | 0.934 | 293 | 0.4% |
| 20% | 218 | 300.0 | 1.26 | 2.0 | 0.923 | 254 | 0.4% |
| 10% | 218 | 300.0 | 1.11 | 2.0 | 0.909 | 220 | 0.5% |
| Active Idle | 219 | 300.0 | 0.700 | 1.0 | 0.828 | 127 | 0.5% |
