SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3755 M3 | SPECpower_ssj2008 = 2,968 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Nangang, Taipei, Taiwan | Test Date: | Nov 4, 2011 |
| Hardware Availability: | Dec-2011 | Software Availability: | Mar-2011 | Publication: | Nov 30, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

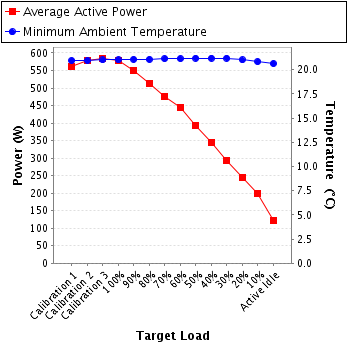

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 562 | 20.9 |
| Calibration 2 | 578 | 20.9 |
| Calibration 3 | 585 | 21.0 |
| 100% | 580 | 21.0 |
| 90% | 550 | 21.1 |
| 80% | 514 | 21.1 |
| 70% | 475 | 21.1 |
| 60% | 446 | 21.1 |
| 50% | 393 | 21.2 |
| 40% | 345 | 21.2 |
| 30% | 294 | 21.2 |
| 20% | 244 | 21.0 |
| 10% | 200 | 20.8 |
| Active Idle | 122 | 20.6 |

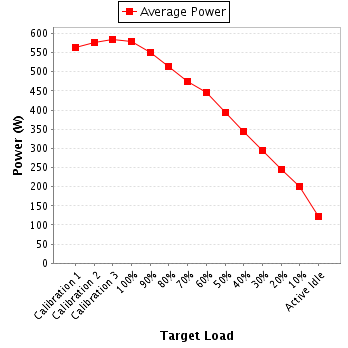

| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. LTD |
| Model: | WT210 |
| Serial Number: | 91H245648 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 11-05-BAC-032-02 |
| Date of Calibration: | 06-May-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 202 | 300.0 | 2.85 | 5.0 | 0.976 | 562 | 0.4% |
| Calibration 2 | 202 | 300.0 | 2.93 | 5.0 | 0.977 | 578 | 0.4% |
| Calibration 3 | 202 | 300.0 | 2.97 | 5.0 | 0.977 | 585 | 0.4% |
| 100% | 201 | 300.0 | 2.95 | 5.0 | 0.977 | 580 | 0.4% |
| 90% | 202 | 300.0 | 2.80 | 5.0 | 0.975 | 550 | 0.4% |
| 80% | 203 | 300.0 | 2.60 | 5.0 | 0.973 | 514 | 0.4% |
| 70% | 204 | 300.0 | 2.40 | 5.0 | 0.971 | 475 | 0.5% |
| 60% | 203 | 300.0 | 2.26 | 2.0 | 0.969 | 446 | 0.3% |
| 50% | 203 | 300.0 | 2.01 | 2.0 | 0.965 | 393 | 0.3% |
| 40% | 204 | 300.0 | 1.77 | 2.0 | 0.959 | 345 | 0.3% |
| 30% | 204 | 300.0 | 1.51 | 2.0 | 0.951 | 294 | 0.4% |
| 20% | 204 | 300.0 | 1.27 | 2.0 | 0.940 | 244 | 0.4% |
| 10% | 204 | 300.0 | 1.06 | 1.0 | 0.925 | 200 | 0.3% |
| Active Idle | 204 | 300.0 | 0.685 | 1.0 | 0.877 | 122 | 0.5% |
