SPECpower_ssj2008
Host 'WIN-Q7UPCAUE3CC' Performance Report
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge C6100 (Intel Xeon X5675, 3.06 GHz) | ssj_ops@100% = 918,907 ssj_ops@100% per JVM = 459,454 |
||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Multi Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Oct 7, 2011 |
| Hardware Availability: | Sep-2011 | Software Availability: | Apr-2011 | Publication: | Nov 2, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 924,723 | ||
| Calibration 2 | 923,986 | ||
| Calibration 3 | 920,587 | ||
| ssj_ops@calibrated=922,287 | |||
| 100% | 99.6% | 922,287 | 918,907 |
| 90% | 90.0% | 830,058 | 830,278 |
| 80% | 79.8% | 737,829 | 735,892 |
| 70% | 70.2% | 645,601 | 647,149 |
| 60% | 60.0% | 553,372 | 553,332 |
| 50% | 49.9% | 461,143 | 460,664 |
| 40% | 40.0% | 368,915 | 369,056 |
| 30% | 30.0% | 276,686 | 276,585 |
| 20% | 20.1% | 184,457 | 185,402 |
| 10% | 9.9% | 92,229 | 91,041 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 4 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell Inc. |
| Model: | PowerEdge C6100 (Intel Xeon X5675, 3.06 GHz) |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon 5675 |
| CPU Characteristics: | 6-Core, 3.06GHz, 12MB L3 Cache |
| CPU Frequency (MHz): | 3067 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 24 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4 x 4096 MB |
| Memory Details: | 4GB 2Rx8 PC3L-10600R ECC ; slots A0,A1,B0,B1 populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | N/A |
| Disk Drive: | 1 x 50GB SSD 2.5" SATA (Dell PN Y949P) |
| Disk Controller: | On Board SATA |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Intel(R) 82576 Gigabit Dual Port Network Connection |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (See SUT Notes) |
| Operating System (OS): | Microsoft Windows 2008 Enterprise x64 Edition |
| OS Version: | R2 SP1 (64-bit) |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_27 |
| JVM Command-line Options: | -server -Xmx6g -Xms6g -Xmn5g -XX:SurvivorRatio=55 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=12 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts |
| JVM Affinity: | start /affinity [000FFF,FFF000] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 6144 |
| JVM Maximum Heap (MB): | 6144 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 1.64 |
| Management Firmware Version: | 1.24 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

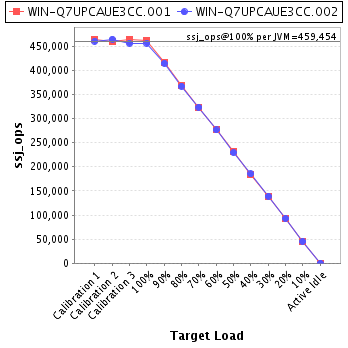

| JVM Instance | ssj_ops@100% |
|---|---|
| WIN-Q7UPCAUE3CC.001 | 462,597 |
| WIN-Q7UPCAUE3CC.002 | 456,311 |
| ssj_ops@100% | 918,907 |
| ssj_ops@100% per JVM | 459,454 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 464,153 | ||
| Calibration 2 | 459,376 | ||
| Calibration 3 | 464,082 | ||
| ssj_ops@calibrated=461,729 | |||
| 100% | 100.2% | 461,729 | 462,597 |
| 90% | 90.1% | 415,557 | 415,826 |
| 80% | 79.9% | 369,384 | 368,737 |
| 70% | 70.1% | 323,211 | 323,616 |
| 60% | 60.0% | 277,038 | 277,008 |
| 50% | 50.1% | 230,865 | 231,118 |
| 40% | 39.8% | 184,692 | 183,931 |
| 30% | 29.8% | 138,519 | 137,754 |
| 20% | 20.1% | 92,346 | 92,709 |
| 10% | 9.9% | 46,173 | 45,662 |
| Active Idle | 0 | 0 | |

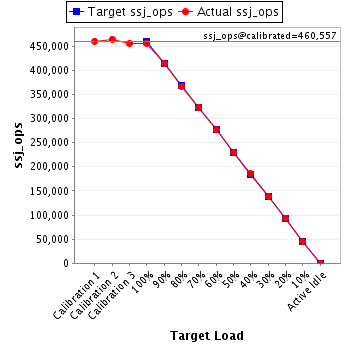

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 460,570 | ||
| Calibration 2 | 464,610 | ||
| Calibration 3 | 456,505 | ||
| ssj_ops@calibrated=460,557 | |||
| 100% | 99.1% | 460,557 | 456,311 |
| 90% | 90.0% | 414,502 | 414,451 |
| 80% | 79.7% | 368,446 | 367,155 |
| 70% | 70.2% | 322,390 | 323,533 |
| 60% | 60.0% | 276,334 | 276,325 |
| 50% | 49.8% | 230,279 | 229,546 |
| 40% | 40.2% | 184,223 | 185,124 |
| 30% | 30.1% | 138,167 | 138,830 |
| 20% | 20.1% | 92,111 | 92,692 |
| 10% | 9.9% | 46,056 | 45,379 |
| Active Idle | 0 | 0 | |
