SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge C6100 (Intel Xeon X5675, 3.06 GHz) | SPECpower_ssj2008 = 3,281 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Multi Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Oct 7, 2011 |
| Hardware Availability: | Sep-2011 | Software Availability: | Apr-2011 | Publication: | Nov 2, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

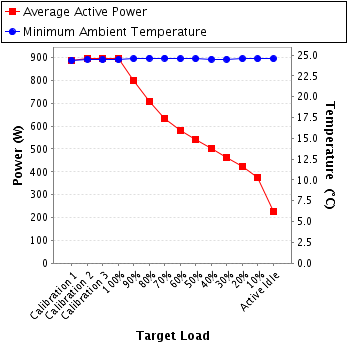

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 887 | 24.4 |
| Calibration 2 | 897 | 24.5 |
| Calibration 3 | 897 | 24.4 |
| 100% | 895 | 24.4 |
| 90% | 800 | 24.6 |
| 80% | 709 | 24.6 |
| 70% | 635 | 24.6 |
| 60% | 583 | 24.6 |
| 50% | 542 | 24.6 |
| 40% | 503 | 24.5 |
| 30% | 463 | 24.5 |
| 20% | 423 | 24.6 |
| 10% | 375 | 24.6 |
| Active Idle | 227 | 24.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91HB22773 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Simco Electronics |
| Calibration Label: | 33427-2136 |
| Date of Calibration: | 23-Apr-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.0-7071d9e7 |
| Setup Description: | SUT Power Supply 1 and 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.3.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50MM in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 211 | 300.0 | 4.35 | 5.0 | 0.966 | 887 | 0.3% |
| Calibration 2 | 211 | 300.0 | 4.40 | 5.0 | 0.966 | 897 | 0.3% |
| Calibration 3 | 211 | 300.0 | 4.40 | 5.0 | 0.965 | 897 | 0.3% |
| 100% | 211 | 300.0 | 4.39 | 5.0 | 0.965 | 895 | 0.3% |
| 90% | 211 | 300.0 | 3.95 | 5.0 | 0.960 | 800 | 0.3% |
| 80% | 211 | 300.0 | 3.52 | 5.0 | 0.955 | 709 | 0.4% |
| 70% | 212 | 300.0 | 3.17 | 5.0 | 0.948 | 635 | 0.4% |
| 60% | 212 | 300.0 | 2.92 | 5.0 | 0.943 | 583 | 0.4% |
| 50% | 211 | 300.0 | 2.73 | 5.0 | 0.939 | 542 | 0.5% |
| 40% | 211 | 300.0 | 2.55 | 5.0 | 0.932 | 503 | 0.5% |
| 30% | 211 | 300.0 | 2.37 | 5.0 | 0.924 | 463 | 0.5% |
| 20% | 212 | 300.0 | 2.19 | 5.0 | 0.914 | 423 | 0.5% |
| 10% | 211 | 300.0 | 1.97 | 2.0 | 0.901 | 375 | 0.4% |
| Active Idle | 212 | 300.0 | 1.31 | 2.0 | 0.818 | 227 | 0.5% |
