Hitachi, Ltd. HA8000-bd/BD10X1 ssj_ops@100% = 125,760
ssj_ops@100% per JVM = 62,880
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Multi Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Mar 22, 2011
Hardware Availability: Jul-2010 Software Availability: Jun-2010 Publication: Apr 12, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,590
Calibration 2     126,984
Calibration 3     126,960
ssj_ops@calibrated=126,972
100% 99.0% 126,972 125,760
90% 89.6% 114,275 113,788
80% 80.4% 101,578 102,076
70% 70.5% 88,880 89,544
60% 60.4% 76,183 76,719
50% 50.7% 63,486 64,335
40% 39.9% 50,789 50,629
30% 30.4% 38,092 38,615
20% 19.8% 25,394 25,166
10% 9.8% 12,697 12,504
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 40
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000-bd/BD10X1
Form Factor: Blade
CPU Name: Intel Core i7 610E
CPU Characteristics: Dual-Core,2.53GHz, 4MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 2 cores, 1 chip, 2 cores/chip
Hardware Threads: 4 (2 / core)
CPU(s) Orderable: 1 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4 GB
Memory Details: 4GB 2Rx8 PC3-8500S ECC CL7; slots 1 and 2 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 500GB 7200rpm SATA2
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Standard
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20100219_54049)(JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1050m -Xmx1200m -Xmn1200m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [03,0c]
JVM Instances: 2
JVM Initial Heap (MB): 1050
JVM Maximum Heap (MB): 1200
JVM Address Bits: 64
Boot Firmware Version: 1000.023W
Management Firmware Version: 20-17-01
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: IBM WebSphere Application Server V7.0 for Windows on x86-64bit
Boot Firmware Settings
None
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
HITACHI6.001 62,746
HITACHI6.002 63,014
ssj_ops@100% 125,760
ssj_ops@100% per JVM 62,880

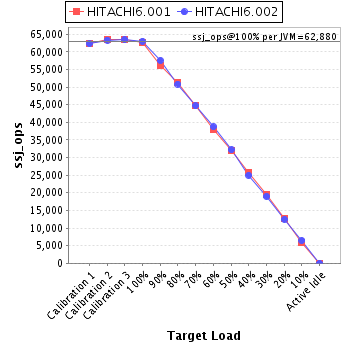

Graph of per-instance results

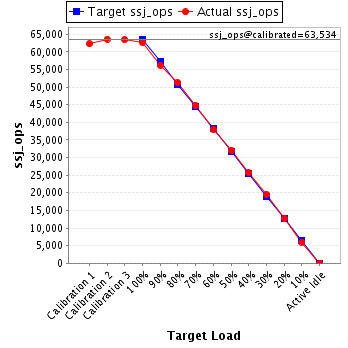

JVM 'HITACHI6.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,283
Calibration 2     63,619
Calibration 3     63,449
ssj_ops@calibrated=63,534
100% 98.8% 63,534 62,746
90% 88.5% 57,180 56,211
80% 80.6% 50,827 51,193
70% 70.6% 44,474 44,852
60% 59.8% 38,120 38,011
50% 50.5% 31,767 32,094
40% 40.4% 25,414 25,636
30% 30.9% 19,060 19,607
20% 20.0% 12,707 12,687
10% 9.5% 6,353 6,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'HITACHI6.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     62,307
Calibration 2     63,366
Calibration 3     63,511
ssj_ops@calibrated=63,438
100% 99.3% 63,438 63,014
90% 90.8% 57,094 57,577
80% 80.2% 50,751 50,882
70% 70.4% 44,407 44,691
60% 61.0% 38,063 38,708
50% 50.8% 31,719 32,242
40% 39.4% 25,375 24,993
30% 30.0% 19,031 19,008
20% 19.7% 12,688 12,479
10% 10.2% 6,344 6,471
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
