Hewlett-Packard Company ProLiant DL580 G3 ssj_ops@100% = 86,082
ssj_ops@100% per JVM = 21,521
Test Sponsor: Intel Corp. SPEC License #: 3184 Test Method: Single Node
Tested By: Principled Technologies, Inc. Test Location: Durham, NC, USA Test Date: Jan 21, 2011
Hardware Availability: Nov-2005 Software Availability: May-2009 Publication: Feb 17, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,837
Calibration 2     86,234
Calibration 3     85,823
ssj_ops@calibrated=86,028
100% 100.1% 86,028 86,082
90% 91.0% 77,426 78,279
80% 80.5% 68,823 69,226
70% 69.9% 60,220 60,124
60% 59.1% 51,617 50,869
50% 49.8% 43,014 42,849
40% 40.8% 34,411 35,118
30% 30.0% 25,809 25,826
20% 19.8% 17,206 17,042
10% 10.0% 8,603 8,586
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL580 G3
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL580 G3
Form Factor: 4U
CPU Name: Intel Xeon Processor 7020
CPU Characteristics: Dual-Core, 2.66 GHz, 2 MB L2 Cache, 667 MHz system bus
CPU Frequency (MHz): 2660
CPU(s) Enabled: 8 cores, 4 chips, 2 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 4 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per chip
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 16 x 1024 MB
Memory Details: 1GB 1Rx4 PC2-3200R; all slots populated
Power Supply Quantity and Rating (W): 2 x 1300
Power Supply Details: HP part #337867-001
Disk Drive: 2 x 146.8GB 15K RPM Ultra 320 SCSI
Disk Controller: HP Ultra320 Smart Array 6i Controller with 64MB RAM
# and type of Network Interface Cards (NICs) Installed: 2 x NC7782 PCI-X Gigabit Server Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2003 R2, Enterprise x64 Edition
OS Version: SP2, Build 3790
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3700m -Xmx3700m -Xns3100m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [F, F0, F00, F000]
JVM Instances: 4
JVM Initial Heap (MB): 3700
JVM Maximum Heap (MB): 3700
JVM Address Bits: 64
Boot Firmware Version: P38 2007.08.02
Management Firmware Version: 1.94 03/19/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Hardware Prefetcher disabled in BIOS, Adjacent Cache Line Prefetch disabled in BIOS, HP Dynamic Power Mode Enabled in BIOS
Management Firmware Settings
Default
System Under Test Notes
Notes
Used USB-to-Serial converter, Model Sabrent SBT-USC1M (driver version 2.0.2.1), to connect power analyzer to the controller.

This benchmark result is intended to provide perspective on past power and/or performance using the historical hardware and/or software described on this result page.

The system as described on this result page was formerly generally available. At the time of this publication, it may not be shipping, and/or may not be supported, and/or may fail to meet other tests of General Availability described in the SPEC OSG Policy document, http://www.spec.org/osg/policy.html

This measured result may not be representative of the result that would be measured were this benchmark run with hardware and software available as of the publication date.

JVM Instance Summary
JVM Instance ssj_ops@100%
hpdl580g3.001 21,197
hpdl580g3.002 21,646
hpdl580g3.003 21,155
hpdl580g3.004 22,084
ssj_ops@100% 86,082
ssj_ops@100% per JVM 21,521

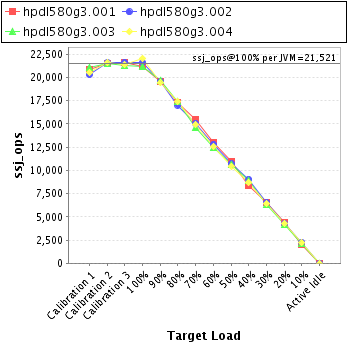

Graph of per-instance results

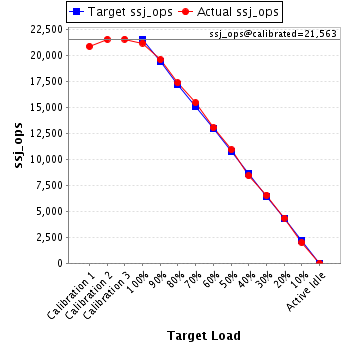

JVM 'hpdl580g3.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     20,874
Calibration 2     21,556
Calibration 3     21,570
ssj_ops@calibrated=21,563
100% 98.3% 21,563 21,197
90% 90.9% 19,407 19,600
80% 80.5% 17,250 17,363
70% 71.6% 15,094 15,444
60% 60.5% 12,938 13,045
50% 50.7% 10,781 10,935
40% 39.0% 8,625 8,419
30% 30.4% 6,469 6,563
20% 20.2% 4,313 4,354
10% 9.3% 2,156 2,004
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hpdl580g3.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     20,299
Calibration 2     21,620
Calibration 3     21,633
ssj_ops@calibrated=21,627
100% 100.1% 21,627 21,646
90% 90.6% 19,464 19,600
80% 78.7% 17,301 17,025
70% 69.7% 15,139 15,084
60% 59.3% 12,976 12,830
50% 49.7% 10,813 10,756
40% 41.8% 8,651 9,049
30% 30.2% 6,488 6,541
20% 19.6% 4,325 4,247
10% 10.5% 2,163 2,264
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

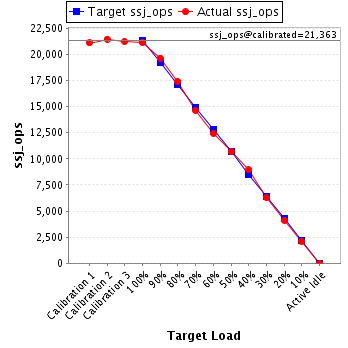

JVM 'hpdl580g3.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     21,104
Calibration 2     21,471
Calibration 3     21,254
ssj_ops@calibrated=21,363
100% 99.0% 21,363 21,155
90% 92.0% 19,227 19,664
80% 81.6% 17,090 17,424
70% 68.6% 14,954 14,652
60% 58.2% 12,818 12,444
50% 50.0% 10,681 10,686
40% 41.8% 8,545 8,937
30% 29.4% 6,409 6,284
20% 19.3% 4,273 4,133
10% 9.9% 2,136 2,115
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'hpdl580g3.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     20,560
Calibration 2     21,586
Calibration 3     21,366
ssj_ops@calibrated=21,476
100% 102.8% 21,476 22,084
90% 90.4% 19,329 19,415
80% 81.1% 17,181 17,414
70% 69.6% 15,033 14,944
60% 58.4% 12,886 12,551
50% 48.8% 10,738 10,472
40% 40.6% 8,590 8,713
30% 30.0% 6,443 6,437
20% 20.1% 4,295 4,308
10% 10.3% 2,148 2,203
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
