SPECpower_ssj2008
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Acer Incorporated Acer AR360 F1 (Intel Xeon X5670, 2.93 GHz) | SPECpower_ssj2008 = 2,414 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Aug 19, 2010 |
| Hardware Availability: | Jun-2010 | Software Availability: | Dec-2009 | Publication: | Sep 22, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

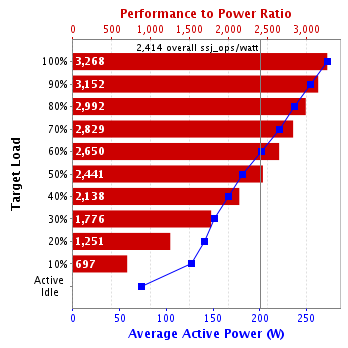

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.8% | 890,144 | 272 | 3,268 |
| 90% | 89.8% | 800,629 | 254 | 3,152 |
| 80% | 79.7% | 710,930 | 238 | 2,992 |
| 70% | 70.1% | 624,829 | 221 | 2,829 |
| 60% | 60.0% | 534,810 | 202 | 2,650 |
| 50% | 49.6% | 442,251 | 181 | 2,441 |
| 40% | 40.0% | 356,683 | 167 | 2,138 |
| 30% | 30.1% | 268,606 | 151 | 1,776 |
| 20% | 19.8% | 176,427 | 141 | 1,251 |
| 10% | 9.9% | 88,104 | 126 | 697 |
| Active Idle | 0 | 73.6 | 0 | |
| ∑ssj_ops / ∑power = | 2,414 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Acer AR360 F1 (Intel Xeon X5670, 2.93 GHz) |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon X5670 |
| CPU Characteristics: | Six-Core, 2.93 GHz, 12 MB L3 cache |
| CPU Frequency (MHz): | 2933 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 24 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 12 |
| # and size of DIMM: | 6 x 2048 MB |
| Memory Details: | 2GB 2Rx8 PC3-10600E; slots 1A, 2A, and 3A populated on each processor |
| Power Supply Quantity and Rating (W): | 1 x 700 |
| Power Supply Details: | PWS-703P-1R |
| Disk Drive: | 1 x 64GB SSD 2.5" SATA, Acer Part#KF.0640N.001 |
| Disk Controller: | onboard SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Quad-port Intel 82576EB Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 4/4/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | PS2 |
| Mouse: | PS2 |
| Monitor: | Direct |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power save enabled in OS |
| Operating System (OS): | Windows Server 2008, Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000] |
| JVM Instances: | 6 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | P02 |
| Management Firmware Version: | 1.01 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Acer Incorporated |
| Model: | Gateway GR160 F1 |
| CPU Description: | Intel Xeon E5504 |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2008 x64, Enterprise Edition SP2 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Calibration Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 10-06-BAC-041-01 |
| Date of Calibration: | 1-Jun-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 272 | 24.1 |
| 90% | 254 | 24.2 |
| 80% | 238 | 24.1 |
| 70% | 221 | 24.0 |
| 60% | 202 | 23.9 |
| 50% | 181 | 23.8 |
| 40% | 167 | 23.8 |
| 30% | 151 | 23.8 |
| 20% | 141 | 23.8 |
| 10% | 126 | 23.8 |
| Active Idle | 73.6 | 23.0 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 60 Hz / 1 phase / 2 wires | 23.0 | 132 |

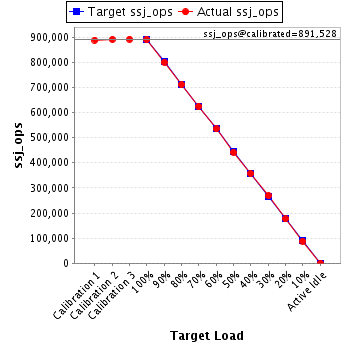

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 888,721 | ||
| Calibration 2 | 890,861 | ||
| Calibration 3 | 892,196 | ||
| ssj_ops@calibrated=891,528 | |||
| 100% | 99.8% | 891,528 | 890,144 |
| 90% | 89.8% | 802,376 | 800,629 |
| 80% | 79.7% | 713,223 | 710,930 |
| 70% | 70.1% | 624,070 | 624,829 |
| 60% | 60.0% | 534,917 | 534,810 |
| 50% | 49.6% | 445,764 | 442,251 |
| 40% | 40.0% | 356,611 | 356,683 |
| 30% | 30.1% | 267,459 | 268,606 |
| 20% | 19.8% | 178,306 | 176,427 |
| 10% | 9.9% | 89,153 | 88,104 |
| Active Idle | 0 | 0 | |
