Acer Incorporated Gateway GW2000ht-GW170ht F1 | SPECpower_ssj2008 = 2,098 overall ssj_ops/watt | ||||
Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Multi Node |
Tested By: | Acer Incorporated | Test Location: | San Jose, CA, USA | Test Date: | Jul 26, 2010 |
Hardware Availability: | Jul-2010 | Software Availability: | Sep-2009 | Publication: | Aug 25, 2010 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

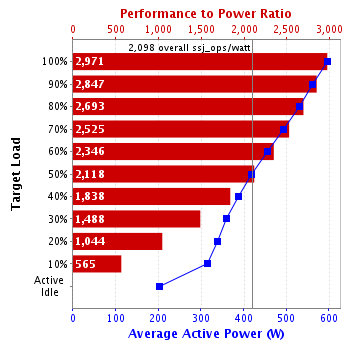

Performance | Power | Performance to Power Ratio | ||
---|---|---|---|---|
Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
100% | 99.4% | 1,772,060 | 596 | 2,971 |
90% | 89.8% | 1,599,838 | 562 | 2,847 |
80% | 80.1% | 1,427,703 | 530 | 2,693 |
70% | 70.1% | 1,248,250 | 494 | 2,525 |
60% | 60.2% | 1,072,172 | 457 | 2,346 |
50% | 49.9% | 888,544 | 419 | 2,118 |
40% | 39.9% | 711,732 | 387 | 1,838 |
30% | 30.1% | 536,714 | 361 | 1,488 |
20% | 19.9% | 354,515 | 340 | 1,044 |
10% | 10.0% | 178,104 | 315 | 565 |
Active Idle | 0 | 204 | 0 | |
∑ssj_ops / ∑power = | 2,098 |
# of Nodes | # of Chips | # of Cores | # of Threads | Total RAM (GB) | # of OS Images | # of JVM Instances |
---|---|---|---|---|---|---|
2 | 4 | 24 | 48 | 24.0 | 2 | 12 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 2 |
Comment: | None |
Hardware per Node | |
---|---|
Hardware Vendor: | Acer Incorporated |
Model: | Gateway GW2000ht-GW170ht F1 |
Form Factor: | 2U |
CPU Name: | Intel Xeon X5670 |
CPU Characteristics: | Six-Core, 2.93GHz, 12MB L3 Cache |
CPU Frequency (MHz): | 2933 |
CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
Hardware Threads: | 24 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 12.0 |
# and size of DIMM: | 6 x 2048 MB |
Memory Details: | 2GB 2Rx8 PC3L-10600R; slots 1A, 2A, and 3A are populated on each processor |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | Shared |
Disk Drive: | 1 x Intel X25-E Extreme 64 GB SLC SSD - SSDSA2SH064G1GC |
Disk Controller: | Intel ICH10R SATA 3.0Gbps Controller |
# and type of Network Interface Cards (NICs) Installed: | 2 x Intel 82574L Gigabit Ethernet |
NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | KVM |
Mouse: | KVM |
Monitor: | KVM |
Optical Drives: | No |
Other Hardware: | NVIDIA Tesla C2050 GPU Card |
Software per Node | |
---|---|
Power Management: | Power save enabled in OS |
Operating System (OS): | Windows Server 2008, Enterprise Edition |
OS Version: | R2 |
Filesystem: | NTFS |
JVM Vendor: | IBM Corporation |
JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled) |
JVM Command-line Options: | -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
JVM Affinity: | start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000] |
JVM Instances: | 6 |
JVM Initial Heap (MB): | 1500 |
JVM Maximum Heap (MB): | 1500 |
JVM Address Bits: | 64 |
Boot Firmware Version: | D03 07/22/2010 |
Management Firmware Version: | 0.01 06/04/2010 |
Workload Version: | SSJ 1.2.6 |
Director Location: | Controller |
Other Software: | None |
Hardware | |
---|---|
Hardware Vendor: | Acer Incorporated |
Model: | Gateway GR160 F1 |
CPU Description: | Intel Xeon E5504 |
Memory amount (GB): | 2.0 |
Software | |
---|---|
Operating System (OS): | Windows Server 2008 x64, Enterprise Edition SP2 |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode) |
CCS Version: | 1.2.4 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91H520530 |
Connectivity: | RS232 |
Input Connection: | Default |
Calibration Institute: | NIST |
Accredited by: | SE-Laboratories |
Calibration Label: | C56-0066 |
Date of Calibration: | 22-Dec-2009 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.0-7071d9e7 |
Setup Description: | None |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.0.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | None |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
100% | 596 | 22.3 |
90% | 562 | 22.5 |
80% | 530 | 22.3 |
70% | 494 | 22.1 |
60% | 457 | 22.2 |
50% | 419 | 22.2 |
40% | 387 | 22.2 |
30% | 361 | 22.0 |
20% | 340 | 22.0 |
10% | 315 | 22.1 |
Active Idle | 204 | 22.0 |
Line Standard | Minimum Temperature (°C) | Elevation (m) |
---|---|---|
208V / 60 Hz / 1 phase / 2 wires | 22.0 | 26 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,780,744 | ||
Calibration 2 | 1,780,991 | ||
Calibration 3 | 1,782,825 | ||
ssj_ops@calibrated=1,781,908 | |||
100% | 99.4% | 1,781,908 | 1,772,060 |
90% | 89.8% | 1,603,717 | 1,599,838 |
80% | 80.1% | 1,425,526 | 1,427,703 |
70% | 70.1% | 1,247,336 | 1,248,250 |
60% | 60.2% | 1,069,145 | 1,072,172 |
50% | 49.9% | 890,954 | 888,544 |
40% | 39.9% | 712,763 | 711,732 |
30% | 30.1% | 534,572 | 536,714 |
20% | 19.9% | 356,382 | 354,515 |
10% | 10.0% | 178,191 | 178,104 |
Active Idle | 0 | 0 |
