SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| NEC Corporation Express5800/R120b-2 | SPECpower_ssj2008 = 2,404 overall ssj_ops/watt | ||||
| Test Sponsor: | NEC Corporation | SPEC License #: | 9006 | Test Method: | Single Node |
| Tested By: | NEC Corporation | Test Location: | Fuchu, Tokyo, Japan | Test Date: | Jul 16, 2010 |
| Hardware Availability: | Jun-2010 | Software Availability: | Feb-2010 | Publication: | Aug 25, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

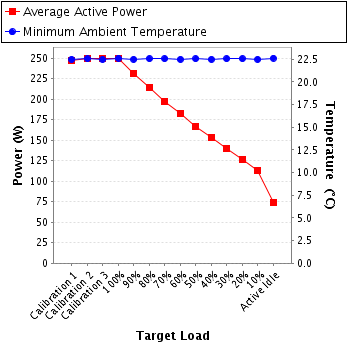

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 248 | 22.5 |
| Calibration 2 | 249 | 22.6 |
| Calibration 3 | 250 | 22.5 |
| 100% | 249 | 22.6 |
| 90% | 231 | 22.5 |
| 80% | 215 | 22.6 |
| 70% | 197 | 22.6 |
| 60% | 182 | 22.5 |
| 50% | 167 | 22.6 |
| 40% | 153 | 22.5 |
| 30% | 139 | 22.6 |
| 20% | 127 | 22.6 |
| 10% | 113 | 22.5 |
| Active Idle | 74.5 | 22.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H928025 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Calibration Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
| Accredited by: | JQA (Japan Quality Assurance Organization) |
| Calibration Label: | 150-92562 |
| Date of Calibration: | 8-Sep-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.30.2.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |

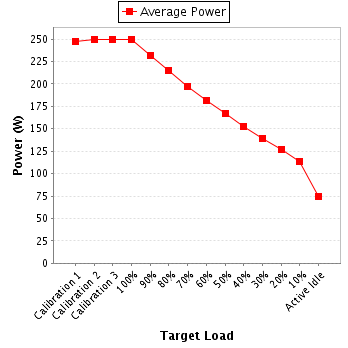

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 203 | 300.0 | 1.24 | 2.0 | 0.987 | 248 | 0.4% |
| Calibration 2 | 203 | 300.0 | 1.25 | 2.0 | 0.987 | 249 | 0.4% |
| Calibration 3 | 204 | 300.0 | 1.24 | 2.0 | 0.987 | 250 | 0.4% |
| 100% | 204 | 300.0 | 1.24 | 2.0 | 0.987 | 249 | 0.4% |
| 90% | 204 | 300.0 | 1.15 | 2.0 | 0.985 | 231 | 0.4% |
| 80% | 203 | 300.0 | 1.08 | 2.0 | 0.983 | 215 | 0.4% |
| 70% | 203 | 300.0 | 0.990 | 2.0 | 0.979 | 197 | 0.4% |
| 60% | 203 | 300.0 | 0.919 | 2.0 | 0.975 | 182 | 0.5% |
| 50% | 203 | 300.0 | 0.848 | 1.0 | 0.971 | 167 | 0.3% |
| 40% | 203 | 300.0 | 0.777 | 1.0 | 0.969 | 153 | 0.3% |
| 30% | 203 | 300.0 | 0.712 | 1.0 | 0.967 | 139 | 0.4% |
| 20% | 202 | 300.0 | 0.651 | 1.0 | 0.964 | 127 | 0.4% |
| 10% | 203 | 300.0 | 0.589 | 1.0 | 0.948 | 113 | 0.4% |
| Active Idle | 202 | 300.0 | 0.395 | 1.0 | 0.934 | 74.5 | 0.6% |
