Acer Incorporated Gateway GR380 F1 (Intel Xeon X5670, 2.93 GHz) | SPECpower_ssj2008 = 2,519 overall ssj_ops/watt | ||||
Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Jun 21, 2010 |
Hardware Availability: | Jun-2010 | Software Availability: | Sep-2009 | Publication: | Jul 14, 2010 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

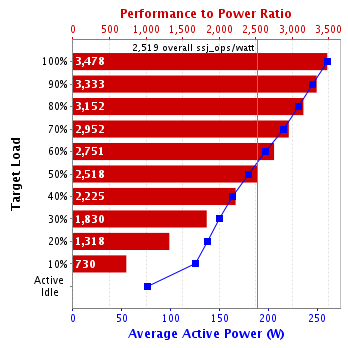

Performance | Power | Performance to Power Ratio | ||
---|---|---|---|---|
Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
100% | 99.6% | 905,129 | 260 | 3,478 |
90% | 90.0% | 817,807 | 245 | 3,333 |
80% | 80.0% | 727,251 | 231 | 3,152 |
70% | 70.0% | 636,398 | 216 | 2,952 |
60% | 59.8% | 543,276 | 198 | 2,751 |
50% | 49.8% | 452,829 | 180 | 2,518 |
40% | 40.1% | 364,191 | 164 | 2,225 |
30% | 30.1% | 273,587 | 150 | 1,830 |
20% | 20.0% | 181,805 | 138 | 1,318 |
10% | 10.1% | 91,850 | 126 | 730 |
Active Idle | 0 | 76.6 | 0 | |
∑ssj_ops / ∑power = | 2,519 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Acer Incorporated |
Model: | Gateway GR380 F1 (Intel Xeon X5670, 2.93 GHz) |
Form Factor: | 2U |
CPU Name: | Intel Xeon X5670 |
CPU Characteristics: | Six-Core, 2.93 GHz, 12 MB L3 cache |
CPU Frequency (MHz): | 2933 |
CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
Hardware Threads: | 24 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 12 |
# and size of DIMM: | 6 x 2048 MB |
Memory Details: | 2GB 2Rx8 PC3-10600E; slots 1A, 2A, and 3A populated on each processor |
Power Supply Quantity and Rating (W): | 1 x 720 |
Power Supply Details: | PS-0815 |
Disk Drive: | 1 x 64GB SSD 2.5" SATA |
Disk Controller: | onboard SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 4 x onboard Intel gigabit |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | PS2 |
Mouse: | PS2 |
Monitor: | Direct |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Power save enabled in OS |
Operating System (OS): | Windows Server 2008, Enterprise Edition |
OS Version: | R2 |
Filesystem: | NTFS |
JVM Vendor: | IBM Corporation |
JVM Version: | IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr7-20091214_49398 (JIT enabled, AOT enabled) |
JVM Command-line Options: | -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
JVM Affinity: | start /affinity [0xF, 0xF0, 0xF00,0xF000, 0xF0000, 0xF00000] |
JVM Instances: | 6 |
JVM Initial Heap (MB): | 1500 |
JVM Maximum Heap (MB): | 1500 |
JVM Address Bits: | 64 |
Boot Firmware Version: | P02 |
Management Firmware Version: | 1.01 |
Workload Version: | SSJ 1.2.6 |
Director Location: | Controller |
Other Software: | None |
Hardware | |
---|---|
Hardware Vendor: | Acer Incorporated |
Model: | Gateway GR160 F1 |
CPU Description: | Intel Xeon E5504 |
Memory amount (GB): | 4 |
Software | |
---|---|
Operating System (OS): | Windows Server 2008 x64, Enterprise Edition SP2 |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode) |
CCS Version: | 1.2.4 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91H534921 |
Connectivity: | RS232 |
Input Connection: | Default |
Calibration Institute: | NML (National Measurement Laboratory, R.O.C.) |
Accredited by: | ETC, Taiwan |
Calibration Label: | 10-06-BAC-041-01 |
Date of Calibration: | 10-Jun-2010 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.3.10-511c8daa |
Setup Description: | None |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.0.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | None |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
100% | 260 | 22.8 |
90% | 245 | 24.0 |
80% | 231 | 23.9 |
70% | 216 | 23.6 |
60% | 198 | 23.4 |
50% | 180 | 23.6 |
40% | 164 | 23.5 |
30% | 150 | 23.8 |
20% | 138 | 23.4 |
10% | 126 | 24.0 |
Active Idle | 76.6 | 23.5 |
Line Standard | Minimum Temperature (°C) | Elevation (m) |
---|---|---|
220V / 60 Hz / 1 phase / 2 wires | 22.8 | 44 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 906,505 | ||
Calibration 2 | 907,380 | ||
Calibration 3 | 909,969 | ||
ssj_ops@calibrated=908,674 | |||
100% | 99.6% | 908,674 | 905,129 |
90% | 90.0% | 817,807 | 817,807 |
80% | 80.0% | 726,939 | 727,251 |
70% | 70.0% | 636,072 | 636,398 |
60% | 59.8% | 545,204 | 543,276 |
50% | 49.8% | 454,337 | 452,829 |
40% | 40.1% | 363,470 | 364,191 |
30% | 30.1% | 272,602 | 273,587 |
20% | 20.0% | 181,735 | 181,805 |
10% | 10.1% | 90,867 | 91,850 |
Active Idle | 0 | 0 |
