Acer Incorporated Gateway GT110 F1 SPECpower_ssj2008 = 1,263 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, Taiwan, ROC Test Date: Apr 9, 2010
Hardware Availability: Dec-2009 Software Availability: Jul-2009 Publication: May 19, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.3% 184,372 94.5 1,952
90% 90.2% 167,467 91.4 1,832
80% 79.5% 147,685 89.7 1,646
70% 69.3% 128,631 83.6 1,538
60% 59.6% 110,639 79.3 1,395
50% 50.1% 92,954 74.0 1,255
40% 40.0% 74,273 68.5 1,084
30% 30.1% 55,967 63.6 879
20% 19.5% 36,243 59.2 612
10% 10.0% 18,608 53.5 348
Active Idle 0 47.7 0
∑ssj_ops / ∑power = 1,263

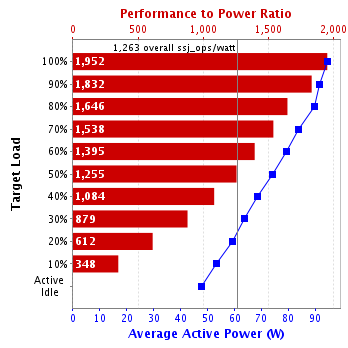

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GT110 F1
Form Factor: Tower
CPU Name: Intel Xeon Processor L3360
CPU Characteristics: 12M Cache, 2.83 GHz, 1333 MHz FSB
CPU Frequency (MHz): 2833
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 4 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 4.00
# and size of DIMM: 2 x 2048 MB
Memory Details: 2GB 2Rx8 PC2-6400E ECC CL5; slots 1A and 1B populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: FSP450-60EP
Disk Drive: 1 x 320 GB 7200RPM SATA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82566DM-2 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: PS2
Mouse: USB
Monitor: Direct
Optical Drives: No
Other Hardware: N/A
Software
Power Management: Balance power enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition SP2
OS Version: Version 6.0.6002 Service Pack 2 Build 6002
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64)
JVM Command-line Options: --Xms1500m -Xmx1500m -Xns1300m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k
JVM Affinity: start /affinity [0x3,0xC]
JVM Instances: 2
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: none
Management Firmware Version: none
Workload Version: SSJ 1.2.6
Director Location: SUT
Other Software: None
Boot Firmware Settings
none
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GT110 F1
CPU Description: Xeon UP Quad-Core X3370
Memory amount (GB): 4.00
Software
Operating System (OS): Windows Server 2003 R2 Enterprise Edition SP2
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC17356
Connectivity: RS-232-C
Input Connection: Default
Calibration Institute: Tai Yi Electronics & Surveillance Co., Ltd.
Accredited by: Tai Yi Electronics & Surveillance Co., Ltd.
Calibration Label: T9802230701
Date of Calibration: 30-Mar-2010
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: Temperature@lert
Driver Version: 2.4.16.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 94.5 25.8
90% 91.4 25.8
80% 89.7 25.9
70% 83.6 25.9
60% 79.3 26.1
50% 74.0 26.0
40% 68.5 25.9
30% 63.6 25.8
20% 59.2 25.7
10% 53.5 25.6
Active Idle 47.7 25.6
Line Standard Minimum Temperature (°C) Elevation (m)
110V / 60 Hz / 1 phase / 2 wires 25.6 1
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,151
Calibration 2     185,304
Calibration 3     186,092
ssj_ops@calibrated=185,698
100% 99.3% 185,698 184,372
90% 90.2% 167,128 167,467
80% 79.5% 148,559 147,685
70% 69.3% 129,989 128,631
60% 59.6% 111,419 110,639
50% 50.1% 92,849 92,954
40% 40.0% 74,279 74,273
30% 30.1% 55,709 55,967
20% 19.5% 37,140 36,243
10% 10.0% 18,570 18,608
Active Idle   0 0
Graph of results
