Fujitsu PRIMERGY CX120 S1 (Intel Xeon L5530) ssj_ops@100% = 523,429
ssj_ops@100% per JVM = 130,857
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 7, 2010
Hardware Availability: Jun-2010 Software Availability: Nov-2009 Publication: Mar 24, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     530,127
Calibration 2     529,382
Calibration 3     526,236
ssj_ops@calibrated=527,809
100% 99.2% 527,809 523,429
90% 90.3% 475,028 476,354
80% 80.2% 422,247 423,515
70% 70.4% 369,466 371,386
60% 59.9% 316,685 316,376
50% 49.8% 263,904 263,001
40% 40.0% 211,124 211,345
30% 29.9% 158,343 157,905
20% 19.9% 105,562 105,020
10% 10.1% 52,781 53,415
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: Set of 38 identically configured PRIMERGY CX120 S1 servers
# of Identical Nodes: 38
Comment: None
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY CX120 S1 (Intel Xeon L5530)
Form Factor: 1U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad-Core, 2.40GHz, 8MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E ECC CL9; slots B1, C1, E1, F1 populated
Power Supply Quantity and Rating (W): 1 x 400
Power Supply Details: Fujitsu Technology Solutions DPS-460GP A
Disk Drive: 1 x 160GB HDD SATA (2.5", 5.4krpm)
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: Version 6.1.7600 Build 7600
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1550m -Xmx1550m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xgcthreads4
JVM Affinity: start /affinity [0x000F,0x00F0,0x0F00,0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 0.46
Management Firmware Version: 0.48
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Node-7.001 128,248
Node-7.002 132,813
Node-7.003 134,435
Node-7.004 127,933
ssj_ops@100% 523,429
ssj_ops@100% per JVM 130,857

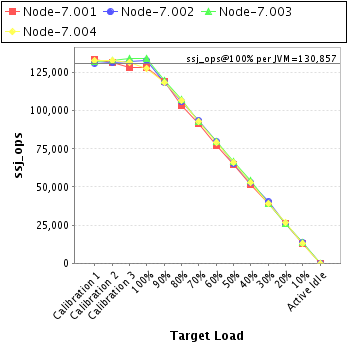

Graph of per-instance results
JVM 'Node-7.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,598
Calibration 2     131,773
Calibration 3     128,101
ssj_ops@calibrated=129,937
100% 98.7% 129,937 128,248
90% 91.9% 116,943 119,350
80% 79.8% 103,950 103,741
70% 70.7% 90,956 91,897
60% 59.6% 77,962 77,462
50% 49.9% 64,968 64,893
40% 39.6% 51,975 51,498
30% 30.2% 38,981 39,184
20% 20.2% 25,987 26,265
10% 10.1% 12,994 13,170
Active Idle   0 0

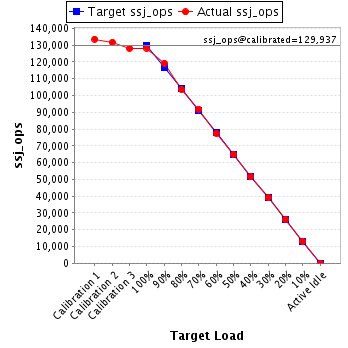

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-7.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,231
Calibration 2     131,596
Calibration 3     132,379
ssj_ops@calibrated=131,988
100% 100.6% 131,988 132,813
90% 89.8% 118,789 118,501
80% 80.2% 105,590 105,880
70% 70.8% 92,391 93,381
60% 60.2% 79,193 79,497
50% 49.4% 65,994 65,182
40% 40.1% 52,795 52,985
30% 30.5% 39,596 40,273
20% 19.7% 26,398 25,970
10% 10.1% 13,199 13,384
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-7.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,507
Calibration 2     133,069
Calibration 3     133,937
ssj_ops@calibrated=133,503
100% 100.7% 133,503 134,435
90% 89.8% 120,153 119,942
80% 80.2% 106,803 107,098
70% 69.6% 93,452 92,934
60% 60.0% 80,102 80,044
50% 50.0% 66,752 66,780
40% 40.4% 53,401 53,951
30% 29.4% 40,051 39,224
20% 19.8% 26,701 26,386
10% 10.2% 13,350 13,616
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-7.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,790
Calibration 2     132,944
Calibration 3     131,818
ssj_ops@calibrated=132,381
100% 96.6% 132,381 127,933
90% 89.6% 119,143 118,560
80% 80.7% 105,905 106,796
70% 70.4% 92,667 93,174
60% 60.0% 79,429 79,372
50% 50.0% 66,190 66,145
40% 40.0% 52,952 52,911
30% 29.6% 39,714 39,225
20% 19.9% 26,476 26,399
10% 10.0% 13,238 13,245
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
