Fujitsu PRIMERGY CX120 S1 (Intel Xeon L5530) ssj_ops@100% = 526,180
ssj_ops@100% per JVM = 131,545
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 7, 2010
Hardware Availability: Jun-2010 Software Availability: Nov-2009 Publication: Mar 24, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     527,463
Calibration 2     528,271
Calibration 3     526,748
ssj_ops@calibrated=527,510
100% 99.7% 527,510 526,180
90% 90.3% 474,759 476,493
80% 80.1% 422,008 422,548
70% 70.1% 369,257 369,993
60% 59.9% 316,506 316,225
50% 50.0% 263,755 263,918
40% 39.7% 211,004 209,675
30% 29.9% 158,253 157,943
20% 20.1% 105,502 105,927
10% 10.0% 52,751 52,950
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: Set of 38 identically configured PRIMERGY CX120 S1 servers
# of Identical Nodes: 38
Comment: None
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY CX120 S1 (Intel Xeon L5530)
Form Factor: 1U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad-Core, 2.40GHz, 8MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E ECC CL9; slots B1, C1, E1, F1 populated
Power Supply Quantity and Rating (W): 1 x 400
Power Supply Details: Fujitsu Technology Solutions DPS-460GP A
Disk Drive: 1 x 160GB HDD SATA (2.5", 5.4krpm)
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: Version 6.1.7600 Build 7600
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1550m -Xmx1550m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xgcthreads4
JVM Affinity: start /affinity [0x000F,0x00F0,0x0F00,0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 0.46
Management Firmware Version: 0.48
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Node-33.001 132,806
Node-33.002 127,612
Node-33.003 133,475
Node-33.004 132,286
ssj_ops@100% 526,180
ssj_ops@100% per JVM 131,545

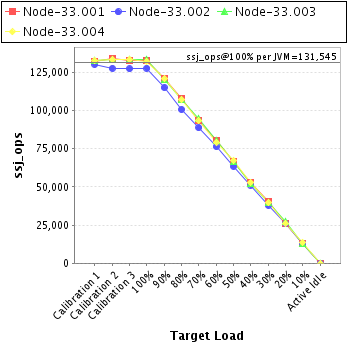

Graph of per-instance results
JVM 'Node-33.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,328
Calibration 2     134,196
Calibration 3     132,862
ssj_ops@calibrated=133,529
100% 99.5% 133,529 132,806
90% 90.4% 120,176 120,648
80% 80.6% 106,823 107,619
70% 70.2% 93,470 93,687
60% 60.3% 80,117 80,515
50% 50.0% 66,764 66,707
40% 39.7% 53,411 53,059
30% 30.2% 40,059 40,344
20% 19.6% 26,706 26,132
10% 9.9% 13,353 13,196
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

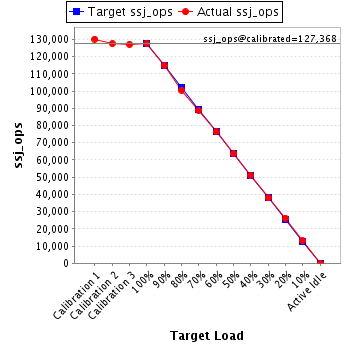

JVM 'Node-33.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     130,165
Calibration 2     127,505
Calibration 3     127,230
ssj_ops@calibrated=127,368
100% 100.2% 127,368 127,612
90% 90.2% 114,631 114,888
80% 79.0% 101,894 100,600
70% 69.6% 89,157 88,654
60% 59.9% 76,421 76,324
50% 49.9% 63,684 63,508
40% 40.2% 50,947 51,186
30% 29.8% 38,210 37,937
20% 20.5% 25,474 26,163
10% 10.2% 12,737 12,961
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-33.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,576
Calibration 2     133,331
Calibration 3     133,598
ssj_ops@calibrated=133,465
100% 100.0% 133,465 133,475
90% 90.1% 120,118 120,222
80% 80.5% 106,772 107,396
70% 70.8% 93,425 94,498
60% 60.1% 80,079 80,210
50% 49.7% 66,732 66,300
40% 39.3% 53,386 52,434
30% 30.0% 40,039 40,074
20% 20.4% 26,693 27,287
10% 9.9% 13,346 13,200
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-33.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,394
Calibration 2     133,240
Calibration 3     133,058
ssj_ops@calibrated=133,149
100% 99.4% 133,149 132,286
90% 90.7% 119,834 120,735
80% 80.3% 106,519 106,934
70% 70.0% 93,204 93,153
60% 59.5% 79,889 79,175
50% 50.6% 66,574 67,404
40% 39.8% 53,260 52,997
30% 29.7% 39,945 39,587
20% 19.8% 26,630 26,345
10% 10.2% 13,315 13,594
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
