Fujitsu PRIMERGY CX120 S1 (Intel Xeon L5530) ssj_ops@100% = 529,736
ssj_ops@100% per JVM = 132,434
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Multi Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Mar 7, 2010
Hardware Availability: Jun-2010 Software Availability: Nov-2009 Publication: Mar 24, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     529,065
Calibration 2     531,057
Calibration 3     531,886
ssj_ops@calibrated=531,472
100% 99.7% 531,472 529,736
90% 90.1% 478,325 478,920
80% 80.0% 425,177 424,917
70% 70.1% 372,030 372,362
60% 59.8% 318,883 317,897
50% 49.9% 265,736 265,287
40% 39.9% 212,589 212,310
30% 29.8% 159,442 158,557
20% 20.0% 106,294 106,194
10% 10.0% 53,147 53,072
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: Set of 38 identically configured PRIMERGY CX120 S1 servers
# of Identical Nodes: 38
Comment: None
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY CX120 S1 (Intel Xeon L5530)
Form Factor: 1U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad-Core, 2.40GHz, 8MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E ECC CL9; slots B1, C1, E1, F1 populated
Power Supply Quantity and Rating (W): 1 x 400
Power Supply Details: Fujitsu Technology Solutions DPS-460GP A
Disk Drive: 1 x 160GB HDD SATA (2.5", 5.4krpm)
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: Version 6.1.7600 Build 7600
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, JRE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr6-20090923_42924 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1550m -Xmx1550m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xgcthreads4
JVM Affinity: start /affinity [0x000F,0x00F0,0x0F00,0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 0.46
Management Firmware Version: 0.48
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Node-19.001 130,927
Node-19.002 132,735
Node-19.003 132,219
Node-19.004 133,855
ssj_ops@100% 529,736
ssj_ops@100% per JVM 132,434

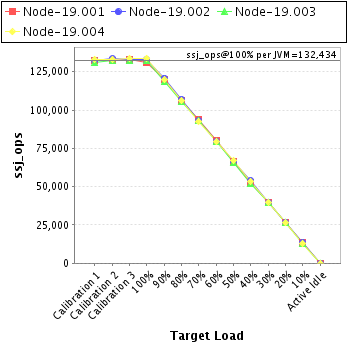

Graph of per-instance results
JVM 'Node-19.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,288
Calibration 2     132,324
Calibration 3     133,173
ssj_ops@calibrated=132,749
100% 98.6% 132,749 130,927
90% 90.3% 119,474 119,870
80% 80.2% 106,199 106,458
70% 70.5% 92,924 93,538
60% 60.1% 79,649 79,842
50% 50.0% 66,374 66,315
40% 39.6% 53,099 52,597
30% 29.7% 39,825 39,452
20% 20.0% 26,550 26,551
10% 10.1% 13,275 13,404
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-19.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     132,631
Calibration 2     133,423
Calibration 3     132,908
ssj_ops@calibrated=133,166
100% 99.7% 133,166 132,735
90% 90.8% 119,849 120,892
80% 80.3% 106,533 106,929
70% 69.9% 93,216 93,024
60% 59.7% 79,899 79,486
50% 49.8% 66,583 66,349
40% 40.5% 53,266 53,907
30% 29.6% 39,950 39,414
20% 20.2% 26,633 26,915
10% 10.1% 13,317 13,516
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-19.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,013
Calibration 2     132,171
Calibration 3     132,024
ssj_ops@calibrated=132,097
100% 100.1% 132,097 132,219
90% 89.6% 118,888 118,405
80% 79.8% 105,678 105,447
70% 70.5% 92,468 93,191
60% 60.1% 79,258 79,355
50% 49.6% 66,049 65,521
40% 39.5% 52,839 52,164
30% 30.1% 39,629 39,714
20% 20.0% 26,419 26,426
10% 9.9% 13,210 13,116
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-19.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,133
Calibration 2     133,139
Calibration 3     133,780
ssj_ops@calibrated=133,460
100% 100.3% 133,460 133,855
90% 89.7% 120,114 119,753
80% 79.5% 106,768 106,083
70% 69.4% 93,422 92,610
60% 59.4% 80,076 79,215
50% 50.3% 66,730 67,102
40% 40.2% 53,384 53,642
30% 30.0% 40,038 39,978
20% 19.7% 26,692 26,303
10% 9.8% 13,346 13,036
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
