IBM Corporation IBM System x3400 M2 SPECpower_ssj2008 = 1,865 overall ssj_ops/watt
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Nankang, Taipei, Taiwan Test Date: Oct 20, 2009
Hardware Availability: Dec-2009 Software Availability: May-2009 Publication: Dec 2, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 553,807 218 2,540
90% 90.0% 499,610 206 2,427
80% 80.4% 446,582 193 2,314
70% 69.9% 388,038 175 2,216
60% 59.7% 331,576 160 2,068
50% 50.0% 277,877 148 1,882
40% 40.3% 223,774 134 1,664
30% 29.8% 165,509 122 1,356
20% 20.0% 110,992 114 977
10% 10.0% 55,780 100.0 558
Active Idle 0 67.0 0
∑ssj_ops / ∑power = 1,865
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3400 M2
Form Factor: Tower
CPU Name: Intel Xeon E5540
CPU Characteristics: Quad-Core, 2.53GHz, 8MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: Samsung M391B5673EH1-CH9 DDR3-10600E; slots 3, 6, 11 and 14 populated
Power Supply Quantity and Rating (W): 1 x 670
Power Supply Details: IBM P/N 39Y7392
Disk Drive: 1 x 160 GB 7.2K RPM SATA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Broadcom NetXtreme II Gigabit NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Power saver plan in OS
Operating System (OS): Windows Server 2008 x64, Enterprise Edition
OS Version: SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build pwa6460sr5-20090529_04(SR5))
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1200m -Xms1675m -Xmx1675m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [000F,00F0,0F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1675
JVM Maximum Heap (MB): 1675
JVM Address Bits: 64
Boot Firmware Version: 30V
Management Firmware Version: 44A
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: IBM Corporation
Model: IntelliStation M Pro
CPU Description: Intel Pentium 4 561
Memory amount (GB): 1
Software
Operating System (OS): Windows XP Professional Edition
JVM Vendor: IBM Corporation
JVM Version: J9VM build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows XP x86-32
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H245650
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 09-04-BAC-150-01
Date of Calibration: 13-Apr-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 218 25.5
90% 206 25.4
80% 193 25.5
70% 175 25.5
60% 160 25.4
50% 148 25.4
40% 134 25.4
30% 122 25.4
20% 114 25.4
10% 100.0 25.4
Active Idle 67.0 25.4
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 25.4 63
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     555,690
Calibration 2     554,928
Calibration 3     555,927
ssj_ops@calibrated=555,427
100% 99.7% 555,427 553,807
90% 90.0% 499,884 499,610
80% 80.4% 444,342 446,582
70% 69.9% 388,799 388,038
60% 59.7% 333,256 331,576
50% 50.0% 277,714 277,877
40% 40.3% 222,171 223,774
30% 29.8% 166,628 165,509
20% 20.0% 111,085 110,992
10% 10.0% 55,543 55,780
Active Idle   0 0

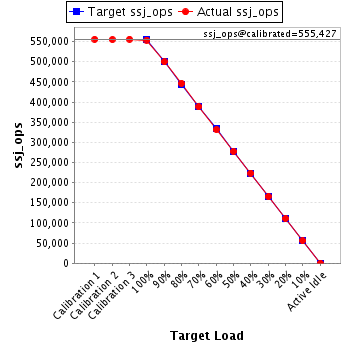

Graph of results
