Hewlett-Packard Company ProLiant DL360 G6 | ssj_ops@100% = 531,629 ssj_ops@100% per JVM = 132,907 |
||||
Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Aug 14, 2009 |
Hardware Availability: | Sep-2009 | Software Availability: | Jul-2009 | Publication: | Nov 4, 2009 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 530,796 | ||
Calibration 2 | 532,793 | ||
Calibration 3 | 532,204 | ||
ssj_ops@calibrated=532,499 | |||
100% | 99.8% | 532,499 | 531,629 |
90% | 91.8% | 479,249 | 488,851 |
80% | 80.0% | 425,999 | 425,867 |
70% | 70.4% | 372,749 | 374,718 |
60% | 60.3% | 319,499 | 321,102 |
50% | 49.9% | 266,249 | 265,902 |
40% | 39.8% | 213,000 | 212,062 |
30% | 30.1% | 159,750 | 160,217 |
20% | 20.1% | 106,500 | 107,292 |
10% | 9.8% | 53,250 | 52,385 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | ProLiant DL360 G6 (2.40GHz, Intel Xeon L5530 processor) |
# of Identical Nodes: | 1 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Hewlett-Packard Company |
Model: | ProLiant DL360 G6 |
Form Factor: | 1U |
CPU Name: | Intel Xeon L5530 |
CPU Characteristics: | Quad-Core, 2.40GHz, 8 MB L3 cache |
CPU Frequency (MHz): | 2400 |
CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
Hardware Threads: | 16 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 8 |
# and size of DIMM: | 4 x 2048 MB |
Memory Details: | 2GB 2Rx4 PC3-10600E; slots 3 and 6 are populated on each processor |
Power Supply Quantity and Rating (W): | 1 x 460 |
Power Supply Details: | HP part #503296-B21 |
Disk Drive: | 1 x 60GB SSD 2.5" SATA; HP part #572071-B21 |
Disk Controller: | HP Smart Array P410i |
# and type of Network Interface Cards (NICs) Installed: | 2 x NC382i Dual Port Multifunction Gigabit Server Adapters |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | KVM |
Mouse: | KVM |
Monitor: | KVM |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Balanced power enabled in OS |
Operating System (OS): | Microsoft Windows Server 2008 x64, Enterprise Edition |
OS Version: | SP2 |
Filesystem: | NTFS |
JVM Vendor: | IBM Corporation |
JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled) |
JVM Command-line Options: | -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
JVM Affinity: | start /AFFINITY [0xF, 0xF0, 0xF00, 0xF000] |
JVM Instances: | 4 |
JVM Initial Heap (MB): | 1500 |
JVM Maximum Heap (MB): | 1500 |
JVM Address Bits: | 64 |
Boot Firmware Version: | P64 08/14/2009 |
Management Firmware Version: | 1.79 |
Workload Version: | SSJ 1.2.6 |
Director Location: | Controller |
Other Software: | NIC driver, HP component cp010995.exe. Driver version: 5.0.16.0 |

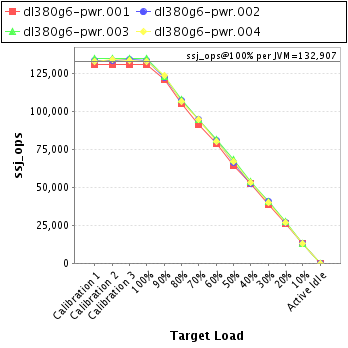

JVM Instance | ssj_ops@100% |
---|---|
dl380g6-pwr.001 | 130,841 |
dl380g6-pwr.002 | 133,139 |
dl380g6-pwr.003 | 134,799 |
dl380g6-pwr.004 | 132,849 |
ssj_ops@100% | 531,629 |
ssj_ops@100% per JVM | 132,907 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 130,335 | ||
Calibration 2 | 130,530 | ||
Calibration 3 | 130,727 | ||
ssj_ops@calibrated=130,629 | |||
100% | 100.2% | 130,629 | 130,841 |
90% | 92.3% | 117,566 | 120,544 |
80% | 80.3% | 104,503 | 104,941 |
70% | 69.7% | 91,440 | 91,061 |
60% | 60.3% | 78,377 | 78,804 |
50% | 49.3% | 65,314 | 64,409 |
40% | 40.3% | 52,251 | 52,687 |
30% | 29.6% | 39,189 | 38,667 |
20% | 19.9% | 26,126 | 26,012 |
10% | 10.0% | 13,063 | 13,083 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 133,237 | ||
Calibration 2 | 133,559 | ||
Calibration 3 | 133,699 | ||
ssj_ops@calibrated=133,629 | |||
100% | 99.6% | 133,629 | 133,139 |
90% | 91.3% | 120,266 | 121,990 |
80% | 80.0% | 106,903 | 106,895 |
70% | 70.5% | 93,540 | 94,228 |
60% | 60.3% | 80,177 | 80,528 |
50% | 49.8% | 66,815 | 66,480 |
40% | 39.4% | 53,452 | 52,682 |
30% | 30.6% | 40,089 | 40,833 |
20% | 20.2% | 26,726 | 27,030 |
10% | 9.8% | 13,363 | 13,100 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 134,355 | ||
Calibration 2 | 134,754 | ||
Calibration 3 | 134,298 | ||
ssj_ops@calibrated=134,526 | |||
100% | 100.2% | 134,526 | 134,799 |
90% | 91.3% | 121,074 | 122,857 |
80% | 79.8% | 107,621 | 107,393 |
70% | 70.5% | 94,168 | 94,790 |
60% | 60.7% | 80,716 | 81,592 |
50% | 50.8% | 67,263 | 68,372 |
40% | 40.0% | 53,810 | 53,782 |
30% | 30.3% | 40,358 | 40,803 |
20% | 20.4% | 26,905 | 27,463 |
10% | 9.8% | 13,453 | 13,141 |
Active Idle | 0 | 0 |

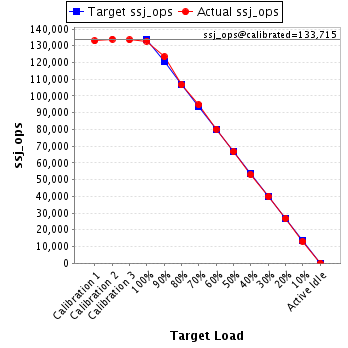

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 132,870 | ||
Calibration 2 | 133,950 | ||
Calibration 3 | 133,479 | ||
ssj_ops@calibrated=133,715 | |||
100% | 99.4% | 133,715 | 132,849 |
90% | 92.3% | 120,343 | 123,460 |
80% | 79.8% | 106,972 | 106,638 |
70% | 70.8% | 93,600 | 94,639 |
60% | 60.0% | 80,229 | 80,178 |
50% | 49.8% | 66,857 | 66,641 |
40% | 39.6% | 53,486 | 52,911 |
30% | 29.8% | 40,114 | 39,914 |
20% | 20.0% | 26,743 | 26,788 |
10% | 9.8% | 13,371 | 13,061 |
Active Idle | 0 | 0 |
