Hewlett Packard ProLiant DL170h G6 ssj_ops@100% = 446,308
ssj_ops@100% per JVM = 111,577
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Jul 13, 2009
Hardware Availability: Sep-2009 Software Availability: Jun-2009 Publication: Jul 29, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     445,098
Calibration 2     446,974
Calibration 3     449,197
ssj_ops@calibrated=448,085
100% 99.6% 448,085 446,308
90% 90.3% 403,277 404,404
80% 80.0% 358,468 358,318
70% 70.0% 313,660 313,477
60% 59.9% 268,851 268,263
50% 50.0% 224,043 223,836
40% 40.0% 179,234 179,155
30% 29.9% 134,426 134,191
20% 20.0% 89,617 89,610
10% 10.1% 44,809 45,099
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL4x170h G6
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Hewlett Packard
Model: ProLiant DL170h G6
Form Factor: 1U
CPU Name: Intel Xeon L5520
CPU Characteristics: Quad-Core, 2.27 GHz, 8 MB L3 Cache
CPU Frequency (MHz): 2267
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 4 x 2 GB 2Rx4 PC3-10600E, slots 2 and 4 are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 120 GB 2.5" SSD SATA; HP part #572073-B21
Disk Controller: On board SATA
# and type of Network Interface Cards (NICs) Installed: 2 x HP NC362i
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Power saver" power scheme)
Operating System (OS): Windows Server 2008 Enterprise Edition x64
OS Version: SP2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1600m -Xmx1600m -Xns1500m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: O34 06/08/09
Management Firmware Version: 9.19, 3/18/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT notes
Management Firmware Settings
none
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
Node-2.001 111,496
Node-2.002 111,332
Node-2.003 111,875
Node-2.004 111,605
ssj_ops@100% 446,308
ssj_ops@100% per JVM 111,577

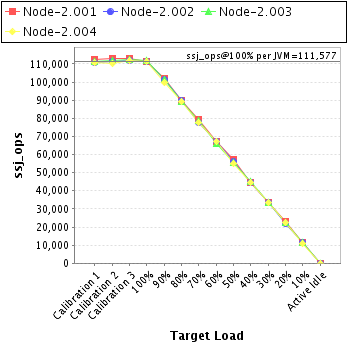

Graph of per-instance results
JVM 'Node-2.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,383
Calibration 2     113,183
Calibration 3     112,759
ssj_ops@calibrated=112,971
100% 98.7% 112,971 111,496
90% 90.5% 101,674 102,199
80% 79.6% 90,377 89,973
70% 70.3% 79,080 79,422
60% 59.6% 67,783 67,282
50% 50.5% 56,485 57,084
40% 39.7% 45,188 44,839
30% 29.7% 33,891 33,579
20% 20.3% 22,594 22,924
10% 10.0% 11,297 11,325
Active Idle   0 0
Graph of results
JVM 'Node-2.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,646
Calibration 2     111,553
Calibration 3     112,132
ssj_ops@calibrated=111,843
100% 99.5% 111,843 111,332
90% 90.5% 100,658 101,267
80% 80.2% 89,474 89,686
70% 69.4% 78,290 77,667
60% 60.2% 67,106 67,365
50% 50.0% 55,921 55,966
40% 40.0% 44,737 44,693
30% 29.9% 33,553 33,441
20% 19.7% 22,369 22,033
10% 10.3% 11,184 11,491
Active Idle   0 0
Graph of results
JVM 'Node-2.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,475
Calibration 2     111,863
Calibration 3     112,276
ssj_ops@calibrated=112,069
100% 99.8% 112,069 111,875
90% 90.4% 100,862 101,348
80% 79.8% 89,655 89,456
70% 70.2% 78,448 78,724
60% 59.1% 67,242 66,247
50% 49.6% 56,035 55,621
40% 40.1% 44,828 44,892
30% 30.1% 33,621 33,778
20% 19.9% 22,414 22,329
10% 10.1% 11,207 11,300
Active Idle   0 0
Graph of results
JVM 'Node-2.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,594
Calibration 2     110,375
Calibration 3     112,029
ssj_ops@calibrated=111,202
100% 100.4% 111,202 111,605
90% 89.6% 100,082 99,591
80% 80.2% 88,962 89,204
70% 69.8% 77,842 77,664
60% 60.6% 66,721 67,370
50% 49.6% 55,601 55,166
40% 40.2% 44,481 44,730
30% 30.0% 33,361 33,393
20% 20.1% 22,240 22,324
10% 9.9% 11,120 10,983
Active Idle   0 0
Graph of results
