Hewlett Packard ProLiant DL170h G6 ssj_ops@100% = 450,961
ssj_ops@100% per JVM = 112,740
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Jul 13, 2009
Hardware Availability: Sep-2009 Software Availability: Jun-2009 Publication: Jul 29, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     446,024
Calibration 2     452,521
Calibration 3     452,616
ssj_ops@calibrated=452,569
100% 99.6% 452,569 450,961
90% 90.0% 407,312 407,313
80% 79.4% 362,055 359,392
70% 70.1% 316,798 317,060
60% 59.5% 271,541 269,191
50% 49.8% 226,284 225,292
40% 40.2% 181,027 181,714
30% 30.0% 135,771 135,926
20% 19.9% 90,514 89,889
10% 10.1% 45,257 45,831
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL4x170h G6
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Hewlett Packard
Model: ProLiant DL170h G6
Form Factor: 1U
CPU Name: Intel Xeon L5520
CPU Characteristics: Quad-Core, 2.27 GHz, 8 MB L3 Cache
CPU Frequency (MHz): 2267
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 4 x 2 GB 2Rx4 PC3-10600E, slots 2 and 4 are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 120 GB 2.5" SSD SATA; HP part #572073-B21
Disk Controller: On board SATA
# and type of Network Interface Cards (NICs) Installed: 2 x HP NC362i
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Power saver" power scheme)
Operating System (OS): Windows Server 2008 Enterprise Edition x64
OS Version: SP2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1600m -Xmx1600m -Xns1500m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: O34 06/08/09
Management Firmware Version: 9.19, 3/18/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT notes
Management Firmware Settings
none
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
Node-1.001 112,499
Node-1.002 112,991
Node-1.003 112,264
Node-1.004 113,207
ssj_ops@100% 450,961
ssj_ops@100% per JVM 112,740

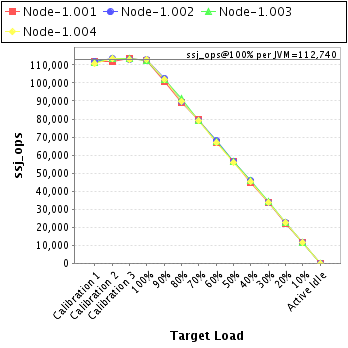

Graph of per-instance results
JVM 'Node-1.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,044
Calibration 2     111,946
Calibration 3     113,484
ssj_ops@calibrated=112,715
100% 99.8% 112,715 112,499
90% 89.4% 101,443 100,815
80% 78.9% 90,172 88,941
70% 70.8% 78,900 79,769
60% 59.4% 67,629 66,916
50% 49.9% 56,357 56,189
40% 39.9% 45,086 44,998
30% 30.1% 33,814 33,884
20% 19.7% 22,543 22,156
10% 10.1% 11,271 11,404
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-1.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,718
Calibration 2     113,737
Calibration 3     112,929
ssj_ops@calibrated=113,333
100% 99.7% 113,333 112,991
90% 90.4% 102,000 102,503
80% 79.0% 90,667 89,515
70% 69.6% 79,333 78,906
60% 59.9% 68,000 67,885
50% 49.9% 56,667 56,535
40% 40.4% 45,333 45,742
30% 30.0% 34,000 33,958
20% 20.0% 22,667 22,700
10% 9.9% 11,333 11,244
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-1.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,477
Calibration 2     113,396
Calibration 3     113,464
ssj_ops@calibrated=113,430
100% 99.0% 113,430 112,264
90% 89.8% 102,087 101,804
80% 80.3% 90,744 91,103
70% 70.0% 79,401 79,447
60% 59.5% 68,058 67,461
50% 49.8% 56,715 56,543
40% 40.4% 45,372 45,827
30% 30.2% 34,029 34,268
20% 19.9% 22,686 22,623
10% 10.1% 11,343 11,508
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Node-1.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,786
Calibration 2     113,442
Calibration 3     112,740
ssj_ops@calibrated=113,091
100% 100.1% 113,091 113,207
90% 90.4% 101,782 102,191
80% 79.4% 90,473 89,833
70% 69.8% 79,163 78,938
60% 59.2% 67,854 66,929
50% 49.5% 56,545 56,025
40% 39.9% 45,236 45,147
30% 29.9% 33,927 33,817
20% 19.8% 22,618 22,410
10% 10.3% 11,309 11,675
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
