Hewlett Packard ProLiant DL170h G6 SPECpower_ssj2008 = 1,909 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Jul 13, 2009
Hardware Availability: Sep-2009 Software Availability: Jun-2009 Publication: Jul 29, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 651 26.4
Calibration 2 655 26.4
Calibration 3 655 26.4
100% 652 26.4
90% 616 26.5
80% 576 26.5
70% 538 26.5
60% 500 26.5
50% 465 26.4
40% 434 26.4
30% 404 26.3
20% 375 26.4
10% 337 26.3
Active Idle 267 26.3
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB45372
Connectivity: GPIB
Input Connection: Default
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 705450
Date of Calibration: 17-Dec-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.50.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 206 300.0 3.27 5.0 0.968 651 0.4%
Calibration 2 206 300.0 3.28 5.0 0.968 655 0.4%
Calibration 3 206 300.0 3.28 5.0 0.968 655 0.4%
100% 207 300.0 3.26 5.0 0.968 652 0.4%
90% 207 300.0 3.08 5.0 0.966 616 0.4%
80% 207 300.0 2.90 5.0 0.963 576 0.4%
70% 206 300.0 2.72 5.0 0.960 538 0.4%
60% 206 300.0 2.54 5.0 0.957 500 0.5%
50% 206 300.0 2.37 5.0 0.954 465 0.5%
40% 206 300.0 2.22 5.0 0.950 434 0.5%
30% 206 300.0 2.07 5.0 0.945 404 0.5%
20% 206 300.0 1.93 2.0 0.941 375 0.3%
10% 207 300.0 1.75 2.0 0.933 337 0.4%
Active Idle 207 300.0 1.41 2.0 0.915 267 0.4%

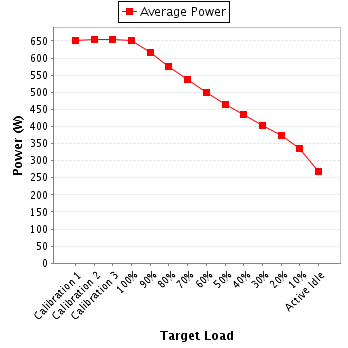

Power details for pwr1
