Hewlett-Packard Company ProLiant BL280c G6 ssj_ops@100% = 451,122
ssj_ops@100% per JVM = 112,780
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Jun 25, 2009
Hardware Availability: Aug-2009 Software Availability: Aug-2009 Publication: Jul 15, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     446,025
Calibration 2     450,746
Calibration 3     451,374
ssj_ops@calibrated=451,060
100% 100.0% 451,060 451,122
90% 90.3% 405,954 407,084
80% 80.4% 360,848 362,627
70% 70.0% 315,742 315,671
60% 59.8% 270,636 269,871
50% 49.9% 225,530 225,169
40% 40.3% 180,424 181,718
30% 29.9% 135,318 134,747
20% 20.2% 90,212 91,032
10% 10.0% 45,106 44,981
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant BL280c G6
Form Factor: Blade
CPU Name: Intel Xeon L5520
CPU Characteristics: 2.27GHz, 8 MB L3, 1333 MHz system bus
CPU Frequency (MHz): 2267
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8.0
# and size of DIMM: 4 x 2048 MB
Memory Details: PC3-10600E; Slots 2A and 4B populated on each CPU node
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x NC362i
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 x64 Enterprise Edition
OS Version: Service Pack 2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1650m -Xmx1650m -Xns1500m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1650
JVM Maximum Heap (MB): 1650
JVM Address Bits: 64
Boot Firmware Version: I22 06/01/2009
Management Firmware Version: 1.77 03/30/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
BL280G6-11.001 111,698
BL280G6-11.002 112,977
BL280G6-11.003 114,148
BL280G6-11.004 112,299
ssj_ops@100% 451,122
ssj_ops@100% per JVM 112,780

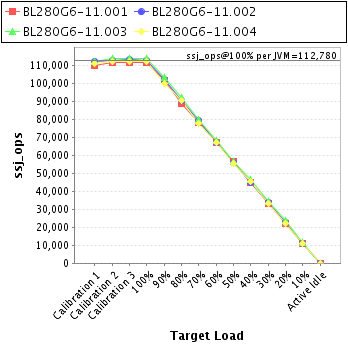

Graph of per-instance results
JVM 'BL280G6-11.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,957
Calibration 2     111,940
Calibration 3     111,803
ssj_ops@calibrated=111,871
100% 99.8% 111,871 111,698
90% 90.8% 100,684 101,560
80% 79.6% 89,497 89,090
70% 70.2% 78,310 78,537
60% 60.0% 67,123 67,117
50% 50.4% 55,936 56,406
40% 40.2% 44,748 44,958
30% 29.9% 33,561 33,411
20% 20.0% 22,374 22,342
10% 10.1% 11,187 11,252
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'BL280G6-11.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,431
Calibration 2     112,799
Calibration 3     113,253
ssj_ops@calibrated=113,026
100% 100.0% 113,026 112,977
90% 90.3% 101,724 102,107
80% 80.2% 90,421 90,596
70% 70.2% 79,118 79,395
60% 59.4% 67,816 67,110
50% 49.6% 56,513 56,085
40% 39.7% 45,210 44,888
30% 29.9% 33,908 33,743
20% 20.1% 22,605 22,745
10% 9.9% 11,303 11,191
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'BL280G6-11.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,323
Calibration 2     113,910
Calibration 3     113,913
ssj_ops@calibrated=113,911
100% 100.2% 113,911 114,148
90% 90.8% 102,520 103,467
80% 81.1% 91,129 92,415
70% 70.0% 79,738 79,756
60% 60.1% 68,347 68,421
50% 49.9% 56,956 56,883
40% 40.8% 45,565 46,522
30% 29.9% 34,173 34,108
20% 20.7% 22,782 23,629
10% 10.0% 11,391 11,358
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'BL280G6-11.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,314
Calibration 2     112,097
Calibration 3     112,405
ssj_ops@calibrated=112,251
100% 100.0% 112,251 112,299
90% 89.0% 101,026 99,951
80% 80.6% 89,801 90,526
70% 69.5% 78,576 77,982
60% 59.9% 67,350 67,222
50% 49.7% 56,125 55,795
40% 40.4% 44,900 45,350
30% 29.8% 33,675 33,486
20% 19.9% 22,450 22,316
10% 10.0% 11,225 11,180
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
