SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Fujitsu Siemens Computers PRIMERGY RX300 S4 (Intel Xeon L5430) | SPECpower_ssj2008 = 854 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu Siemens Computers | SPEC License #: | 22 | Test Method: | Single Node |
| Tested By: | Fujitsu Siemens Computers | Test Location: | Paderborn, NRW, Germany | Test Date: | 12.02.2009 |
| Hardware Availability: | Sep-2008 | Software Availability: | May-2009 | Publication: | Mar 11, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

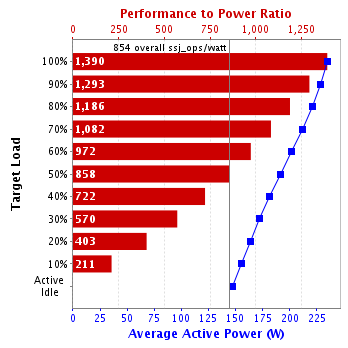

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.6% | 326,319 | 235 | 1,390 |
| 90% | 90.3% | 295,834 | 229 | 1,293 |
| 80% | 80.0% | 262,189 | 221 | 1,186 |
| 70% | 70.1% | 229,598 | 212 | 1,082 |
| 60% | 59.8% | 196,119 | 202 | 972 |
| 50% | 50.2% | 164,414 | 192 | 858 |
| 40% | 40.0% | 131,046 | 181 | 722 |
| 30% | 30.0% | 98,212 | 172 | 570 |
| 20% | 20.1% | 65,949 | 164 | 403 |
| 10% | 10.0% | 32,783 | 155 | 211 |
| Active Idle | 0 | 147 | 0 | |
| ∑ssj_ops / ∑power = | 854 | |||
| Set Identifier: | sut |
| Set Description: | PRIMERGY RX300 S4 (Intel Xeon L5430) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu Siemens Computers |
| Model: | PRIMERGY RX300 S4 (Intel Xeon L5430) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon L5430 |
| CPU Characteristics: | 2.66GHz, 2x6MB L2 cache, 1333MHz system bus |
| CPU Frequency (MHz): | 2667 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | 8GB 2Rx8 PC2-5300F ECC CL5; slots 1A, 1B, 1C, 1D populated |
| Power Supply Quantity and Rating (W): | 1 x 700 |
| Power Supply Details: | Delta Electronics, Inc DPS-700KB B |
| Disk Drive: | 1 x Seagate (3.5", SATA, 250GB, 7.2krpm) |
| Disk Controller: | LSI Logic Integrated SAS 3000 Series, 8-port with 1068E |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Broadcom BCM5708C NetXtreme II GigE (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled ("Balanced" power scheme) |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise x64 Edition + SP2 |
| OS Version: | Version 6.0.6002 Service Pack 2, v.641 Build 6002 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-8-109238-1.6.0_05-20090130-1408-windows-x86_64) |
| JVM Command-line Options: | -Xms1700m -Xmx1700m -Xns1500m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k -XXthroughputcompaction -XX:+UseStringCache |
| JVM Affinity: | start /affinity [0x03,0x30,0x0C,0xC0] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1700 |
| JVM Maximum Heap (MB): | 1700 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1.3 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu Siemens Computers |
| Model: | PRIMERGY RX100 S3 |
| CPU Description: | Pentium D 940 |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2003 Enterprise Edition + SP1 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) R27.6.0 (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32) |
| CCS Version: | 1.1.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | ZES Zimmer Electronic Systems GmbH |
| Model: | LMG95 |
| Serial Number: | 11780806 |
| Connectivity: | RS-232 |
| Input Connection: | Default (20A) |
| Calibration Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | ZES |
| Calibration Label: | 11780806.1f |
| Date of Calibration: | 25-Jun-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 235 | 23.7 |
| 90% | 229 | 23.7 |
| 80% | 221 | 23.7 |
| 70% | 212 | 23.7 |
| 60% | 202 | 23.7 |
| 50% | 192 | 23.7 |
| 40% | 181 | 23.7 |
| 30% | 172 | 23.7 |
| 20% | 164 | 23.7 |
| 10% | 155 | 23.6 |
| Active Idle | 147 | 23.6 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 230V / 50 Hz / 1 phase / 2 wires | 23.6 | 117 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 331,610 | ||
| Calibration 2 | 327,707 | ||
| Calibration 3 | 327,725 | ||
| ssj_ops@calibrated=327,716 | |||
| 100% | 99.6% | 327,716 | 326,319 |
| 90% | 90.3% | 294,944 | 295,834 |
| 80% | 80.0% | 262,173 | 262,189 |
| 70% | 70.1% | 229,401 | 229,598 |
| 60% | 59.8% | 196,630 | 196,119 |
| 50% | 50.2% | 163,858 | 164,414 |
| 40% | 40.0% | 131,086 | 131,046 |
| 30% | 30.0% | 98,315 | 98,212 |
| 20% | 20.1% | 65,543 | 65,949 |
| 10% | 10.0% | 32,772 | 32,783 |
| Active Idle | 0 | 0 | |
