Fujitsu PRIMERGY RX200 S4 (Intel Xeon L5430) SPECpower_ssj2008 = 851 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Siemens Computers Test Location: Paderborn, NRW, Germany Test Date: 16.02.2009
Hardware Availability: Sep-2008 Software Availability: May-2009 Publication: Mar 11, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.8% 327,292 231 1,415
90% 89.6% 293,838 225 1,304
80% 79.6% 261,060 218 1,197
70% 70.4% 230,880 210 1,098
60% 59.8% 196,194 200 980
50% 50.0% 164,127 191 861
40% 39.6% 130,081 181 717
30% 29.8% 97,922 174 564
20% 20.0% 65,607 167 392
10% 10.0% 32,730 161 203
Active Idle 0 154 0
∑ssj_ops / ∑power = 851

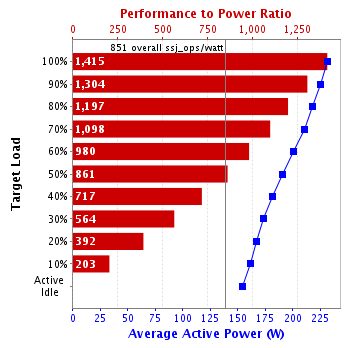

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PRIMERGY RX200 S4 (Intel Xeon L5430)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX200 S4 (Intel Xeon L5430)
Form Factor: --
CPU Name: Intel Xeon L5430
CPU Characteristics: 2.66GHz, 2x6MB L2 cache, 1333MHz system bus
CPU Frequency (MHz): 2667
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC2-5300F ECC CL5; slots 1A, 1B, 1C, 1D populated
Power Supply Quantity and Rating (W): 1 x 650
Power Supply Details: Delta Electronics, Inc DPS-650JB C
Disk Drive: 1 x Seagate (3.5", SATA, 250GB, 7.2krpm)
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Broadcom BCM5708C NetXtreme II GigE (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Balanced" power scheme)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition + SP2
OS Version: Version 6.0.6002 Service Pack 2, v.641 Build 6002
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-8-109238-1.6.0_05-20090130-1408-windows-x86_64)
JVM Command-line Options: -Xms1700m -Xmx1700m -Xns1500m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k -XXthroughputcompaction -XX:+UseStringCache
JVM Affinity: start /affinity [0x03,0x30,0x0C,0xC0]
JVM Instances: 8
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1.3
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX100 S3
CPU Description: Pentium D 940
Memory amount (GB): 2
Software
Operating System (OS): Windows Server 2003 Enterprise Edition + SP1
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) R27.6.0 (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32)
CCS Version: 1.1.3
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Calibration Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: ZES
Calibration Label: 11780806.1f
Date of Calibration: 25-Jun-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.2-e0c92e60
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 231 22.0
90% 225 22.0
80% 218 22.0
70% 210 22.0
60% 200 22.0
50% 191 22.0
40% 181 22.0
30% 174 22.0
20% 167 22.0
10% 161 22.0
Active Idle 154 21.8
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 21.8 117
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     330,320
Calibration 2     328,654
Calibration 3     327,544
ssj_ops@calibrated=328,099
100% 99.8% 328,099 327,292
90% 89.6% 295,289 293,838
80% 79.6% 262,479 261,060
70% 70.4% 229,670 230,880
60% 59.8% 196,860 196,194
50% 50.0% 164,050 164,127
40% 39.6% 131,240 130,081
30% 29.8% 98,430 97,922
20% 20.0% 65,620 65,607
10% 10.0% 32,810 32,730
Active Idle   0 0
Graph of results
