Hewlett-Packard Company ProLiant DL785 G5 (2.30GHz, AMD Opteron 8376 HE) | SPECpower_ssj2008 = 872 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
Tested By: | Hewlett-Packard Company | Test Location: | Cupertino, CA, USA | Test Date: | Feb 7, 2009 |
Hardware Availability: | Jan-2009 | Software Availability: | May-2009 | Publication: | Feb 25, 2009 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Performance | Power | Performance to Power Ratio | ||
---|---|---|---|---|
Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
100% | 99.2% | 1,066,480 | 796 | 1,339 |
90% | 89.9% | 966,782 | 765 | 1,264 |
80% | 80.2% | 862,108 | 731 | 1,179 |
70% | 70.1% | 753,080 | 699 | 1,078 |
60% | 59.9% | 644,152 | 662 | 973 |
50% | 49.9% | 536,172 | 625 | 859 |
40% | 40.0% | 429,488 | 587 | 731 |
30% | 29.9% | 321,499 | 542 | 593 |
20% | 19.9% | 214,366 | 486 | 441 |
10% | 10.1% | 108,242 | 447 | 242 |
Active Idle | 0 | 427 | 0 | |
∑ssj_ops / ∑power = | 872 |
Set Identifier: | sut |
Set Description: | ProLiant DL785 G5 (2.30GHz, AMD Opteron 8376 HE) |
# of Identical Nodes: | 1 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Hewlett-Packard Company |
Model: | ProLiant DL785 G5 (2.30GHz, AMD Opteron 8376 HE) |
Form Factor: | -- |
CPU Name: | Quad-Core AMD Opteron(r) Processor 8376 HE |
CPU Characteristics: | Quad-Core, 2.3GHz, 6MB L3 Cache |
CPU Frequency (MHz): | 2300 |
CPU(s) Enabled: | 32 cores, 8 chips, 4 cores/chip |
Hardware Threads: | 32 (1 / core) |
CPU(s) Orderable: | 4,8 chips |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 512 KB I+D on chip per chip |
Tertiary Cache: | 6 MB I+D off chip per chip |
Other Cache: | None |
Memory Amount (GB): | 32 |
# and size of DIMM: | 16 x 2048 MB |
Memory Details: | 4GB Reg PC2-5300 2x2GB LP Kit 483401-B21; slots 1 and 2 populated on each board |
Power Supply Quantity and Rating (W): | 3 x 1200 |
Power Supply Details: | HP P/N 437572-B21 |
Disk Drive: | 1 x 73GB 10K RPM SAS |
Disk Controller: | Integrated P400i SmartArray controller |
# and type of Network Interface Cards (NICs) Installed: | 2 x NC373i NIC |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | KVM |
Mouse: | KVM |
Monitor: | None |
Optical Drives: | Yes |
Other Hardware: | none |
Software | |
---|---|
Power Management: | HP Dynamic Power Regulator enabled |
Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
OS Version: | Build 6001: Service pack 1 |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-8-109238-1.6.0_05-20090130-1408-windows-x86_64, compiled mode) |
JVM Command-line Options: | -Xms3600m -Xmx3600m -Xns3100m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k |
JVM Affinity: | Used "start /AFFINITY" "0xF","0xF0","0xF00","0xF000","0xF0000","0xF00000","0xF000000" and "0xF0000000" CPU masks. |
JVM Instances: | 16 |
JVM Initial Heap (MB): | 3600 |
JVM Maximum Heap (MB): | 3600 |
JVM Address Bits: | 64 |
Boot Firmware Version: | -- |
Management Firmware Version: | -- |
Workload Version: | SSJ 1.1.3 |
Director Location: | Controller |
Other Software: | None |
Hardware | |
---|---|
Hardware Vendor: | Hewlett-Packard Company |
Model: | Compaq nc6220 |
CPU Description: | Pentium M |
Memory amount (GB): | 0.5 |
Software | |
---|---|
Operating System (OS): | Ubuntu 8.10 Intrepid Ibex |
JVM Vendor: | Sun Microsystems |
JVM Version: | 1.6.0_u10 |
CCS Version: | 1.1.3 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91FB02050 |
Connectivity: | RS-232 |
Input Connection: | Default |
Calibration Institute: | NIST |
Accredited by: | Instrument Calibration Service |
Calibration Label: | 67961 |
Date of Calibration: | 02-Dec-2008 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.3.2-62d59d34 |
Setup Description: | -- |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | OS Supplied |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | -- |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
100% | 796 | 20.8 |
90% | 765 | 20.8 |
80% | 731 | 20.8 |
70% | 699 | 20.6 |
60% | 662 | 20.6 |
50% | 625 | 20.6 |
40% | 587 | 20.6 |
30% | 542 | 20.5 |
20% | 486 | 20.5 |
10% | 447 | 20.5 |
Active Idle | 427 | 20.5 |
Line Standard | Minimum Temperature (°C) | Elevation (m) |
---|---|---|
208V / 60 Hz / 1 phase / 2 wires | 20.5 | 72 |

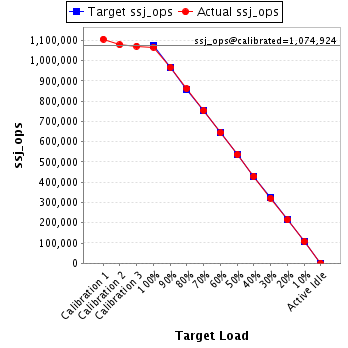

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,105,959 | ||
Calibration 2 | 1,077,880 | ||
Calibration 3 | 1,071,968 | ||
ssj_ops@calibrated=1,074,924 | |||
100% | 99.2% | 1,074,924 | 1,066,480 |
90% | 89.9% | 967,432 | 966,782 |
80% | 80.2% | 859,939 | 862,108 |
70% | 70.1% | 752,447 | 753,080 |
60% | 59.9% | 644,954 | 644,152 |
50% | 49.9% | 537,462 | 536,172 |
40% | 40.0% | 429,970 | 429,488 |
30% | 29.9% | 322,477 | 321,499 |
20% | 19.9% | 214,985 | 214,366 |
10% | 10.1% | 107,492 | 108,242 |
Active Idle | 0 | 0 |
