SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge 2970 (AMD Opteron 2382, 2.60 GHz) | SPECpower_ssj2008 = 851 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Dec 4, 2008 |
| Hardware Availability: | Nov-2008 | Software Availability: | Apr-2008 | Publication: | Jan 2, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

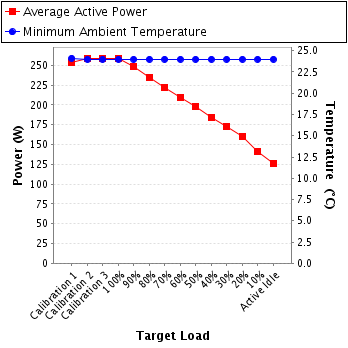

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 253 | 24.1 |
| Calibration 2 | 258 | 24.0 |
| Calibration 3 | 259 | 24.0 |
| 100% | 258 | 24.0 |
| 90% | 249 | 24.0 |
| 80% | 235 | 24.0 |
| 70% | 222 | 24.0 |
| 60% | 210 | 24.0 |
| 50% | 198 | 24.0 |
| 40% | 184 | 24.0 |
| 30% | 172 | 24.0 |
| 20% | 160 | 24.0 |
| 10% | 141 | 24.0 |
| Active Idle | 127 | 24.0 |

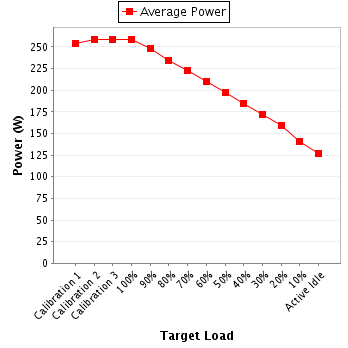

| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H648897 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Davis Calibration |
| Calibration Label: | 2565983 |
| Date of Calibration: | 20-Aug-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300V | 1.30 | 2A | 0.943 | 253 | -- |
| Calibration 2 | 208 | 300V | 1.32 | 2A | 0.945 | 258 | -- |
| Calibration 3 | 207 | 300V | 1.32 | 2A | 0.945 | 259 | -- |
| 100% | 207 | 300V | 1.32 | 2A | 0.946 | 258 | -- |
| 90% | 207 | 300V | 1.28 | 2A | 0.942 | 249 | -- |
| 80% | 207 | 300V | 1.21 | 2A | 0.938 | 235 | -- |
| 70% | 206 | 300V | 1.15 | 2A | 0.935 | 222 | -- |
| 60% | 206 | 300V | 1.09 | 2A | 0.931 | 210 | -- |
| 50% | 206 | 300V | 1.04 | 2A | 0.926 | 198 | -- |
| 40% | 206 | 300V | 0.972 | 2A | 0.919 | 184 | -- |
| 30% | 206 | 300V | 0.916 | 2A | 0.912 | 172 | -- |
| 20% | 206 | 300V | 0.855 | 2A | 0.903 | 160 | -- |
| 10% | 206 | 300V | 0.769 | 2A | 0.889 | 141 | -- |
| Active Idle | 207 | 300V | 0.699 | 2A | 0.876 | 127 | -- |
