Tyan Computer Corp. Transport GT24 (B2912-E) SPECpower_ssj2008 = 826 overall ssj_ops/watt
Test Sponsor: Advanced Micro Devices SPEC License #: 49 Test Method: Single Node
Tested By: Advanced Micro Devices Test Location: Austin, TX, USA Test Date: Oct 16, 2008
Hardware Availability: Dec-2008 Software Availability: May-2008 Publication: Nov 5, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 98.9% 335,116 264 1,271
90% 90.1% 305,350 253 1,207
80% 79.8% 270,407 241 1,121
70% 70.1% 237,455 230 1,031
60% 59.9% 203,008 218 929
50% 50.0% 169,547 206 821
40% 39.7% 134,510 194 693
30% 29.8% 101,042 182 556
20% 19.7% 66,895 169 396
10% 10.0% 33,763 154 219
Active Idle 0 136 0
∑ssj_ops / ∑power = 826

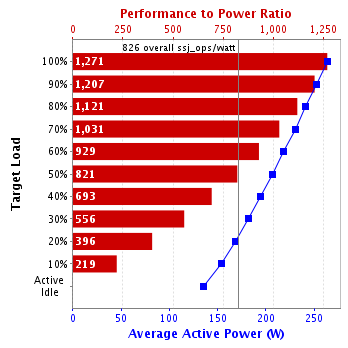

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Transport GT24 (B2912-E)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Tyan Computer Corp.
Model: Transport GT24 (B2912-E)
Form Factor: --
CPU Name: AMD Opteron 2384
CPU Characteristics: Quad-Core, 2.7GHz, 6MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: DDR2-800 CL5; slots A1/B1 populated for each socket
Power Supply Quantity and Rating (W): 1 x 500
Power Supply Details: Delta Electronics DPS-500GB
Disk Drive: 1 x 500GB WD5000ABPS SATAII
Disk Controller: Integrated NFP3600 SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Marvell 88E1121 Gigabit NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Balanced profile enabled)
Operating System (OS): Microsoft Windows Server 2008 Enterprise
OS Version: SP1 (64-bit)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3700m -Xns3200m -Xmx3700m -XXaggressive -XXthroughputCompaction -XlargePages -XXlazyUnlocking -XXcallprofiling -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=4k,preferred=512k
JVM Affinity: start /affinity [0F,F0]
JVM Instances: 4
JVM Initial Heap (MB): 3700
JVM Maximum Heap (MB): 3700
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1.3
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Dell Inc.
Model: Optiplex GX620
CPU Description: Intel Pentium 4 670
Memory amount (GB): 0.5
Software
Operating System (OS): Microsoft Windows XP Professional SP2 32-bit
JVM Vendor: SUN Microsystems Inc.
JVM Version: Java(TM) SE Runtime Environment (build 1.6.0_05-b13)
CCS Version: 1.1.3
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB53037
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 08-0220
Date of Calibration: 04-Feb-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.2-e0c92e60
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.40.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 264 21.5
90% 253 21.5
80% 241 21.4
70% 230 21.4
60% 218 21.4
50% 206 21.4
40% 194 21.4
30% 182 21.4
20% 169 21.3
10% 154 21.3
Active Idle 136 21.3
Line Standard Minimum Temperature (°C) Elevation (m)
120V / 60 Hz / 1 phase / 2 wires 21.3 168
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     340,912
Calibration 2     340,862
Calibration 3     336,998
ssj_ops@calibrated=338,930
100% 98.9% 338,930 335,116
90% 90.1% 305,037 305,350
80% 79.8% 271,144 270,407
70% 70.1% 237,251 237,455
60% 59.9% 203,358 203,008
50% 50.0% 169,465 169,547
40% 39.7% 135,572 134,510
30% 29.8% 101,679 101,042
20% 19.7% 67,786 66,895
10% 10.0% 33,893 33,763
Active Idle   0 0
Graph of results
