NEC Corporation Express5800/i120Ra-e1(Intel Xeon L5410) SPECpower_ssj2008 = 876 overall ssj_ops/watt
Test Sponsor: NEC Corporation SPEC License #: 9006 Test Method: Single Node
Tested By: NEC Corporation Test Location: Fuchu, Tokyo, Japan Test Date: 2008/07/24
Hardware Availability: May-2008 Software Availability: May-2008 Publication: Aug 13, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.6% 265,325 186 1,426
90% 90.2% 240,336 182 1,323
80% 79.5% 211,840 176 1,204
70% 69.5% 185,082 170 1,089
60% 60.0% 159,849 164 978
50% 50.2% 133,791 156 858
40% 39.8% 106,017 147 721
30% 29.9% 79,561 138 577
20% 20.1% 53,528 128 418
10% 10.0% 26,621 117 227
Active Idle 0 106 0
∑ssj_ops / ∑power = 876

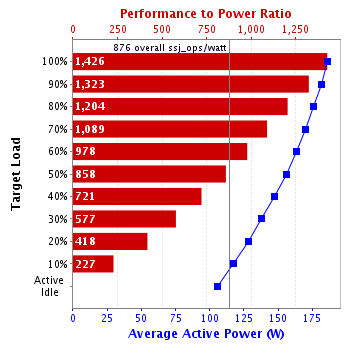

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Express5800/i120Ra-e1(Intel Xeon L5410)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: NEC Corporation
Model: Express5800/i120Ra-e1(Intel Xeon L5410)
Form Factor: --
CPU Name: Intel Xeon L5410
CPU Characteristics: 2.33 GHz, 2x6 MB L2 shared, 1333 MHz bus
CPU Frequency (MHz): 2333
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: PC2-5300P, 2 rank, CL5-5-5, ECC
Power Supply Quantity and Rating (W): 1 x 350
Power Supply Details: Delta DPS-350QB-2 H
Disk Drive: 1 x 80GB 7.2K RPM SATAII
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Onboard Gigabit
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: None
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft(R) Windows(R) Server 2003 R2 Enterprise x64 Edition
OS Version: Service Pack 2
Filesystem: NTFS
JVM Vendor: BEA System, Inc.
JVM Version: BEA JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1600m -Xmx1600m -XXaggressive -Xgc:genpar -Xns1300m -XXgcthreads:2 -XXoptThreads:2 -XlargePages -XXlazyUnlocking -XXcallprofiling -XXtlasize:min=12k,preferred=256k -XXthroughputcompaction
JVM Affinity: start /affinity [03,0C,30,C0]
JVM Instances: 8
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Controller System
Hardware
Hardware Vendor: NEC Corporation
Model: Express5800/120Ei
CPU Description: Intel Xeon X5450
Memory amount (GB): 4
Software
Operating System (OS): Microsoft(R) Windows(R) Server 2003 R2 Standard Edition Service Pack 2
JVM Vendor: BEA Systems, Inc.
JVM Version: BEA JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-ia32, compiled mode)
CCS Version: 1.1
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H734409
Connectivity: RS-232
Input Connection: --
Calibration Institute: AIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: B082937
Date of Calibration: 4-Jul-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.1-45c8e665
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 186 21.2
90% 182 21.1
80% 176 21.0
70% 170 21.0
60% 164 21.0
50% 156 21.0
40% 147 21.0
30% 138 21.0
20% 128 21.0
10% 117 21.0
Active Idle 106 21.0
Line Standard Minimum Temperature (°C) Elevation (m)
202V / 50 Hz / 1 phase / 2 wires 21.0 52
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     264,698
Calibration 2     266,388
Calibration 3     266,434
ssj_ops@calibrated=266,411
100% 99.6% 266,411 265,325
90% 90.2% 239,770 240,336
80% 79.5% 213,129 211,840
70% 69.5% 186,488 185,082
60% 60.0% 159,847 159,849
50% 50.2% 133,205 133,791
40% 39.8% 106,564 106,017
30% 29.9% 79,923 79,561
20% 20.1% 53,282 53,528
10% 10.0% 26,641 26,621
Active Idle   0 0
Graph of results
