SGI Altix XE250 (Intel Xeon processor X5272) SPECpower_ssj2008 = 450 overall ssj_ops/watt
Test Sponsor: SGI SPEC License #: 4 Test Method: Single Node
Tested By: SGI Test Location: Mountain View,CA, USA Test Date: May 9, 2008
Hardware Availability: Feb-2008 Software Availability: Apr-2008 Publication: Jun 4, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 98.7% 208,444 280 745
90% 91.0% 191,998 275 697
80% 80.4% 169,806 269 631
70% 69.7% 147,217 253 582
60% 59.6% 125,859 239 527
50% 50.2% 105,878 233 455
40% 40.6% 85,718 226 380
30% 29.6% 62,557 216 289
20% 19.8% 41,828 207 202
10% 10.2% 21,455 197 109
Active Idle 0 186 0
∑ssj_ops / ∑power = 450

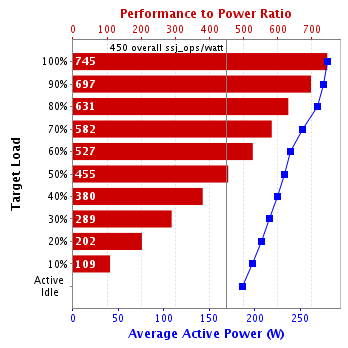

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Altix XE250 (Intel Xeon processor X5272)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: SGI
Model: Altix XE250 (Intel Xeon processor X5272)
Form Factor: --
CPU Name: Intel Xeon X5272
CPU Characteristics: 3.4 GHz, 6 MB L2 Cache, Dual-Core, 1600 MHz System Bus
CPU Frequency (MHz): 3400
CPU(s) Enabled: 4 cores, 2 chips, 2 cores/chip
Hardware Threads: 4 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4x2048 MB
Memory Details: SGI part # 9010126, 2GB, DDR2, 800, CL5, ECC Slots: 1A, 2A, 3A, 4A
Power Supply Quantity and Rating (W): 1 x 900
Power Supply Details: SGI part # 060-0276-001
Disk Drive: 1 x Seagate 300GB 15K RPM SAS
Disk Controller: LSI Logic SAS1068E SAS
# and type of Network Interface Cards (NICs) Installed: Integrated 2 x Intel Gigabit Ethernet 82575EB, igb driver
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled(See SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 10 (x86_64)
OS Version: 10 SP1
Filesystem: xfs
JVM Vendor: BEA Systems, Inc
JVM Version: BEA JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1523-linux-x86_64, compiled mode)
JVM Command-line Options: -Xms3400m -Xns3200m -Xmx3400m -XXaggressive -XXlazyunlocking -XXthroughputcompaction -Xlargepages -Xgc:genpar -XXcallprofiling -XXtlasize:min=4k,preferred=1024k
JVM Affinity: numactl --physcpubind[0,2][1,3]
JVM Instances: 4
JVM Initial Heap (MB): 3400
JVM Maximum Heap (MB): 3400
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Dell Inc
Model: Dell Precision 490
CPU Description: Intel Xeon 5140
Memory amount (GB): 8
Software
Operating System (OS): Microsoft Windows Server 2003 Enterprise Edition
JVM Vendor: BEA Systems, Inc
JVM Version: BEA JRockit(R) (build R27.5.0-110-94909-1.6.0_03-20080204-1558-windows-ia32, compiled mode)
CCS Version: 1.1
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd
Model: WT210
Serial Number: 91H132263
Connectivity: RS-232
Input Connection: --
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd
Calibration Label: 08-0385
Date of Calibration: 29-Feb-2008
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.1-45c8e665
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 4.50.14.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 280 23.5
90% 275 23.5
80% 269 23.5
70% 253 23.5
60% 239 23.5
50% 233 23.5
40% 226 23.5
30% 216 23.5
20% 207 23.5
10% 197 23.5
Active Idle 186 23.5
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 23.5 13
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     210,008
Calibration 2     210,845
Calibration 3     211,359
ssj_ops@calibrated=211,102
100% 98.7% 211,102 208,444
90% 91.0% 189,992 191,998
80% 80.4% 168,882 169,806
70% 69.7% 147,772 147,217
60% 59.6% 126,661 125,859
50% 50.2% 105,551 105,878
40% 40.6% 84,441 85,718
30% 29.6% 63,331 62,557
20% 19.8% 42,220 41,828
10% 10.2% 21,110 21,455
Active Idle   0 0
Graph of results
