IBM Corporation IBM System x3350 SPECpower_ssj2008 = 926 overall ssj_ops/watt
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: RTP, NC, USA Test Date: May 6, 2008
Hardware Availability: Apr-2008 Software Availability: Jun-2008 Publication: May 21, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.0% 187,275 126 1,487
90% 89.5% 167,758 123 1,368
80% 79.5% 148,994 119 1,255
70% 70.2% 131,601 114 1,150
60% 59.4% 111,304 108 1,027
50% 49.8% 93,251 102 913
40% 40.0% 74,968 95.6 785
30% 30.2% 56,490 89.2 633
20% 20.1% 37,638 83.4 451
10% 10.1% 18,895 77.9 243
Active Idle 0 71.7 0
∑ssj_ops / ∑power = 926

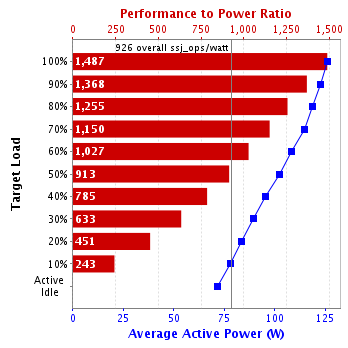

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: IBM System x3350
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3350
Form Factor: --
CPU Name: Intel Xeon X3360
CPU Characteristics: Quad-Core, 2.83GHz, 12MB L2 Cache
CPU Frequency (MHz): 2833
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 4 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 4
# and size of DIMM: 2 x 2048 MB
Memory Details: PC2-5300P ECC; slots 1 and 3 populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: IBM P/N 39Y7195
Disk Drive: 1 x 160GB (SATA, 7.2k RPM, 3.5")
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom onboard NIC
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Server Balanced Processor Power and Performance
Operating System (OS): Windows Server 2003 R2 Enterprise x64 Edition SP1
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 2.4, JRE 1.6.0 Windows 64bitpwa6460sr1-20080305_01
JVM Command-line Options: -Xcompressedrefs -Xlp -Xgcpolicy:gencon -Xmn1000m -Xms1475m -Xmx1475m -XlockReservation -Xnoloa
JVM Affinity: start /affinity [03,0C]
JVM Instances: 4
JVM Initial Heap (MB): 1475
JVM Maximum Heap (MB): 1475
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Controller System
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x346
CPU Description: Intel Xeon 3.0GHz
Memory amount (GB): 4
Software
Operating System (OS): Microsoft Windows Server 2003 Enterprise Edition SP1
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2003 x86-32 jvmwi3260-20071121_15015 (JIT enabled)
CCS Version: 1.1
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB37404
Connectivity: RS-232
Input Connection: --
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 07-1646
Date of Calibration: Nov-2007
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.1-45c8e665
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Digiwatchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: --
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 126 23.8
90% 123 23.8
80% 119 23.7
70% 114 23.7
60% 108 23.7
50% 102 23.7
40% 95.6 23.7
30% 89.2 23.7
20% 83.4 23.7
10% 77.9 23.6
Active Idle 71.7 23.6
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 23.6 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     184,658
Calibration 2     187,287
Calibration 3     187,422
ssj_ops@calibrated=187,355
100% 100.0% 187,355 187,275
90% 89.5% 168,619 167,758
80% 79.5% 149,884 148,994
70% 70.2% 131,148 131,601
60% 59.4% 112,413 111,304
50% 49.8% 93,677 93,251
40% 40.0% 74,942 74,968
30% 30.2% 56,206 56,490
20% 20.1% 37,471 37,638
10% 10.1% 18,735 18,895
Active Idle   0 0
Graph of results
