Fujitsu Siemens Computers PRIMERGY TX150 S6 (Intel Xeon X3360) ssj_ops@100% = 92,806
Test Sponsor: Fujitsu Siemens Computers SPEC License #: 22 Test Method: Single Node
Tested By: Fujitsu Siemens Computers Test Location: Paderborn, Germany Test Date: Mar 26, 2008
Hardware Availability: Mar-2008 Software Availability: Feb-2008 Publication: Apr 2, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,191
Calibration 2     93,029
Calibration 3     92,953
ssj_ops@calibrated=92,991
100% 99.8% 92,991 92,806
90% 89.5% 83,692 83,265
80% 79.7% 74,393 74,127
70% 70.6% 65,094 65,676
60% 59.8% 55,795 55,575
50% 49.5% 46,496 45,998
40% 40.5% 37,196 37,656
30% 30.1% 27,897 27,985
20% 19.8% 18,598 18,381
10% 9.7% 9,299 9,059
Active Idle   0 0

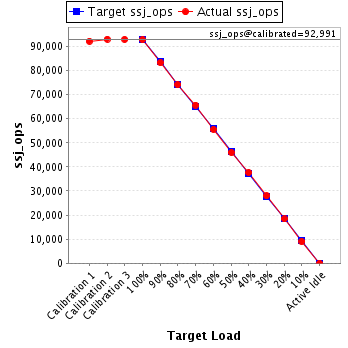

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PRIMERGY TX150 S6 (Intel Xeon X3360)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Fujitsu Siemens Computers
Model: PRIMERGY TX150 S6 (Intel Xeon X3360)
Form Factor: --
CPU Name: Intel Xeon X3360
CPU Characteristics: 2.83GHz, 2x6MB L2 Cache, 1333MHz system bus
CPU Frequency (MHz): 2833
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 4 (1 / core)
CPU(s) Orderable: 1
Primary Cache: 32KB I + 32KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4x2048MB
Memory Details: PC2-6400E-555 2Rx4
Power Supply Quantity and Rating (W): 1 x 350
Power Supply Details: Fujitsu Siemens Computers S26113-E520-V70
Disk Drive: 1 x WD5000AAKS (3.5", SATA, 7.2krpm, 500GB)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom 5755 NetXtreme Gigabit Ethernet (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Server Balanced Processor Power and Performance)
Operating System (OS): Microsoft Windows Server 2003 R2 Enterprise x64 Edition
OS Version: 5.2.3790 Service Pack 1 Build 3790
Filesystem: NTFS
JVM Vendor: Bea Systems, Inc
JVM Version: BEA JRockit(R) (build R27.5.0-110-94909-1.6.0_03-20080204-1558-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3450m -Xmx3450m -Xns2900m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=512k -XXthroughputcompaction
JVM Affinity: start /affinity [03,0c]
JVM Instances: 4
JVM Initial Heap (MB): 3450
JVM Maximum Heap (MB): 3450
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,708,935 3,450
Payment 6,708,936
Order Status 670,893
Delivery 670,894
Stock Level 670,894
Customer Report 6,708,939
Calibration 2 New Order 6,770,770 3,450
Payment 6,770,774
Order Status 677,077
Delivery 677,075
Stock Level 677,077
Customer Report 6,770,766
Calibration 3 New Order 6,760,791 3,450
Payment 6,760,793
Order Status 676,078
Delivery 676,081
Stock Level 676,080
Customer Report 6,760,791
100% 99.8% New Order 6,752,737 3,450
Payment 6,752,735
Order Status 675,274
Delivery 675,273
Stock Level 675,274
Customer Report 6,752,734
90% 89.5% New Order 6,060,104 3,450
Payment 6,060,104
Order Status 606,011
Delivery 606,011
Stock Level 606,011
Customer Report 6,060,101
80% 79.7% New Order 5,391,527 3,450
Payment 5,391,533
Order Status 539,153
Delivery 539,154
Stock Level 539,154
Customer Report 5,391,535
70% 70.6% New Order 4,776,822 3,450
Payment 4,776,825
Order Status 477,683
Delivery 477,682
Stock Level 477,683
Customer Report 4,776,828
60% 59.8% New Order 4,042,427 3,450
Payment 4,042,427
Order Status 404,243
Delivery 404,243
Stock Level 404,242
Customer Report 4,042,430
50% 49.5% New Order 3,345,629 3,450
Payment 3,345,630
Order Status 334,563
Delivery 334,564
Stock Level 334,562
Customer Report 3,345,630
40% 40.5% New Order 2,738,784 3,450
Payment 2,738,790
Order Status 273,878
Delivery 273,879
Stock Level 273,878
Customer Report 2,738,791
30% 30.1% New Order 2,035,455 3,450
Payment 2,035,451
Order Status 203,546
Delivery 203,546
Stock Level 203,545
Customer Report 2,035,457
20% 19.8% New Order 1,336,911 3,450
Payment 1,336,907
Order Status 133,691
Delivery 133,692
Stock Level 133,691
Customer Report 1,336,908
10% 9.7% New Order 658,857 3,450
Payment 658,866
Order Status 65,886
Delivery 65,888
Stock Level 65,886
Customer Report 658,865
Active Idle New Order 0 3,450
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
