SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R300 | SPECpower_ssj2008 = 800 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Feb 26, 2008 |
| Hardware Availability: | Mar-2008 | Software Availability: | Feb-2008 | Publication: | Mar 26, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

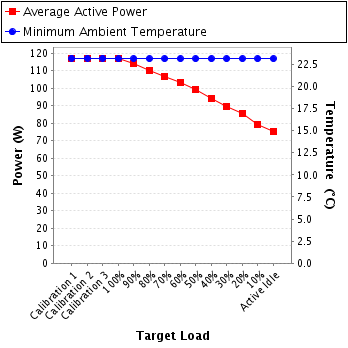

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 117 | 23.2 |
| Calibration 2 | 117 | 23.2 |
| Calibration 3 | 117 | 23.2 |
| 100% | 117 | 23.1 |
| 90% | 114 | 23.1 |
| 80% | 110 | 23.1 |
| 70% | 107 | 23.1 |
| 60% | 103 | 23.1 |
| 50% | 99.3 | 23.1 |
| 40% | 94.3 | 23.1 |
| 30% | 89.8 | 23.1 |
| 20% | 85.3 | 23.1 |
| 10% | 79.5 | 23.1 |
| Active Idle | 75.1 | 23.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91G643889 |
| Connectivity: | RS-232 |
| Input Connection: | -- |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 07-1458 |
| Date of Calibration: | 24-Oct-2007 |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Controller |
| PTDaemon Version: | 1.1-45c8e665 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Controller |
| Setup Description: | -- |

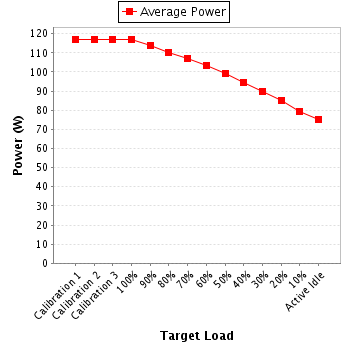

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 204 | -- | 0.630 | -- | 0.909 | 117 | -- |
| Calibration 2 | 204 | -- | 0.630 | -- | 0.909 | 117 | -- |
| Calibration 3 | 205 | -- | 0.630 | -- | 0.909 | 117 | -- |
| 100% | 204 | -- | 0.629 | -- | 0.909 | 117 | -- |
| 90% | 204 | -- | 0.618 | -- | 0.903 | 114 | -- |
| 80% | 204 | -- | 0.603 | -- | 0.894 | 110 | -- |
| 70% | 205 | -- | 0.591 | -- | 0.885 | 107 | -- |
| 60% | 204 | -- | 0.577 | -- | 0.876 | 103 | -- |
| 50% | 205 | -- | 0.561 | -- | 0.865 | 99.3 | -- |
| 40% | 204 | -- | 0.541 | -- | 0.853 | 94.3 | -- |
| 30% | 204 | -- | 0.521 | -- | 0.843 | 89.8 | -- |
| 20% | 205 | -- | 0.502 | -- | 0.831 | 85.3 | -- |
| 10% | 205 | -- | 0.470 | -- | 0.826 | 79.5 | -- |
| Active Idle | 205 | -- | 0.446 | -- | 0.822 | 75.1 | -- |
